| Prod Model: |
22.5 |
| Application: |
Heavy Dutry Truck / Trailer / Bus/Semi Trailer |
| Type: |
Rim |
| Drive Wheel: |
4WD |
| Wheel Hub Diameter: |
21-24" |
| Certification: |
DOT |
| Material: |
Aluminium |
| Finishing: |
Machined / Polished |
Product Description

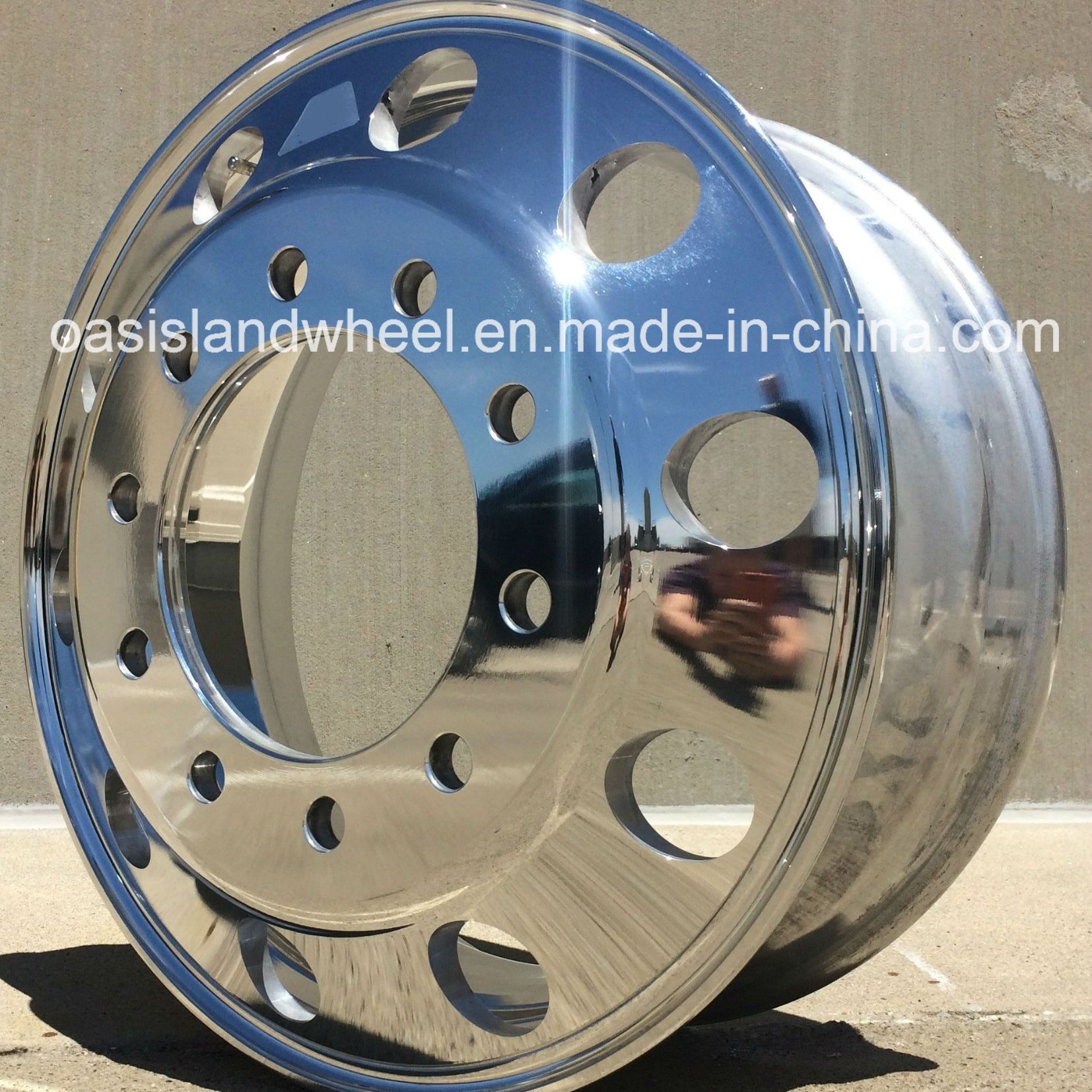

22.5 Aluminum truck wheel for 11R22.5 and 12R22.5
Advantage of aluminum truck wheel:
1.Surface treatment : machined finish,polished inside,polished outside,polished both sides
2.Strong point : Fuel-efficient,beautiful appearance ,
Environment-protective durable,Reliable security, High strength,
Tire longevity,Save energy,Best quality with competitive price.
3. Certificate: SABS,Smithers,DOT,VIA,ISO ,TS16949.
4. After-sales service: our quality guarantee is five years.
5. Exported area: North American South Africa, USA, Canada.
Feature of steel truck wheel
1. Surface: painting different colors according to request
2. Cost: cheaper
3. Certificate: DOT ISO TUV..
4. After-sales service: 2years warranty
Specification:
| 17.5x6.00 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 01 | 6 | φ32 | φ222.25 | φ164 |
| 17.5x6.75 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 02 | 6 | φ32 | φ222.25 | φ164 |
| 03 | 10 | φ26 | φ225 | φ176 |
| 04 | 10 | φ26 | φ225 | φ176 |
| 19.5x6.00 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 05 | 6 | φ32 | φ222.25 | φ164 |
| 06 | 8 | φ24 | φ275 | φ221 |
| 19.5x6.75 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 07 | 8 | φ24 | φ275 | φ221 |
| 08 | 6 | φ32 | φ222.25 | φ164 |
| 19.5x7.50 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 09 | 8 | φ24 | φ275 | φ221 |
| 22.5x6.75 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 10 | 8 | φ32 | φ275 | φ214 |
| 11 | 8 | φ32 | φ285 | φ221 |
| 12 | 10 | φ26 | φ285.75 | φ220 |
| 13 | 10 | φ32 | φ285.75 | φ222 |
| 22.5x7.50 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 14 | 8 | φ32 | φ275 | φ214 |
| 15 | 8 | φ32 | φ275 | φ214 |
| 16 | 8 | φ32 | φ285 | φ221 |
| 17 | 8 | φ32 | φ285 | φ221 |
| 18 | 10 | φ26 | φ285.75 | φ220 |
| 19 | 10 | φ32 | φ285.75 | φ222 |
| 20 | 10 | φ26 | φ335 | φ281 |
| 21 | 10 | φ27 | φ335 | φ281 |
| | | | | |
| 22.5x8.25 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 1 | 8 | φ32 | φ275 | φ214 |
| 2 | 8 | φ24 | φ275 | φ221 |
| 6 | 8 | φ32 | φ285 | φ221 |
| 7 | 10 | φ26 | φ285.75 | φ220 |
| 8 | 10 | φ26 | φ285.75 | φ220 |
| 12 | 10 | φ26 | φ335 | φ281 |
| 13 | 10 | φ27 | φ335 | φ281 |
| 15 | 8 | φ32 | φ285 | φ221 |
| 22.5x9.00 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 1 | 8 | φ32 | φ275 | φ214 |
| 4 | 8 | φ32 | φ285 | φ221 |
| 5 | 10 | φ26 | φ285.75 | φ220 |
| 8 | 10 | φ32 | φ285.75 | φ222 |
| 9 | 10 | φ26 | φ335 | φ281 |
| 22.5x9.75 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 1 | 10 | φ26 | φ335 | φ281 |
| 2 | 10 | φ26 | φ285.75 | φ220 |
| 3 | 10 | φ26 | φ335 | φ281 |
| 22.5x11.75 |
| NO. | bolt hole | bolt dia | PCD | Center hole |
| 1 | 8 | φ32 | φ275 | φ214 |
| 2 | 8 | φ24 | φ275 | φ221 |
| 3 | 8 | φ32 | φ285 | φ221 |
| 4 | 10 | φ26 | φ285.75 | φ220 |
| 5 | 10 | φ32 | φ285.75 | φ222 |
| 6 | 10 | φ26 | φ335 | φ281 |
| 11 | 10 | φ27 | φ335 | φ281 |
| 22.5x13.00 |
| 1 | 10 | φ26 | φ335 | φ281 |
| 3 | 10 | φ27 | φ335 | φ281 |
| 22.5X14.00 |
| 1 | 10 | φ27 | φ335 | φ281 |
| 2 | 10 | φ26 | φ335 | φ281 |
1.Size we can make for: from 17.5x6.00 to 30.5x28.00
For truck sizes (Aluminum and steel ):
17.5" 17.50x5.25, 17.50x6.00, 17.5x6.75,
19.5": 19.5x6.00, 19.5x6.75, 19.5x7.50, 19.5x8.25, 19.5x14.00,
22.5": 22.5x6.00, 22.5x6.75, 22.5x7.50, 22.5x8.25, 22.5x9.00, 22.5x9.75 22.5x11.75, 22.5x14.00, 22.5x16.00
24.5" 24.5x8.25 24.5x9.00
For farm trailer sizes (Steel wheel)
15.3": 9.00x15.3
15.5": 13.00x15.5, 15.5x16.00
16": 16x6 1/ 2J, 16x7J, 16x8J, 11x16
16.5": 16.5x8.25, 16.5x9.75
17": 17x7J, 17x8J, 13.00x17, 16.00x17
18": 18xW9, 9x18, 11x18, 13x18
19.5": 19.5x13.00, 19.5x14.00
22.5": 22.5x11.75, 22.5x16.00, 22.5x20.00
26.5": 26.5X24.00, 26.5X20.00
30.5" 30.5x20.00 30.5x28.00
2. Finishing:
For Aluminum wheel: machined finish,polished inside,polished outside,polished both sides,chrome plated
For Steel wheel: Painting (e-coating), Powder Painting with different colors
3.Our advantage :
Fuel-efficient,durable,Reliable security High strength,Long life,Save energy
Quick delivery time: keep stocks for normal sizes, 15-30days for new production
2years warranty for steel wheel
5years warranty for Aluminum wheel.
Assembly is available !
4. Certificate: SABS,Smothers,DOT,VIA,ISO ,TS16949.
| Inch | Description | Wheels | Tyres |
| 15.5" | one-piece 15° DC | 15.5X13.00 | 400/60-15.5 |
| 15.5X16.00 | 500/55-15.5 |
| 16.5" | one-piece 15° DC | 16.5X8.25 | 9.50R16.5 10-16.5 |
| 16.5X9.75 | 12-16.5EM 33X12.50R16.5 |
| 16.5X12 | 36x14.5-16.5 |
| 17.5" | one-piece 15° DC | 17.5X6.00HC | 215/75R17.5 8R17.5 |
| 17.5X6.75HC | 9R17.5 9.5R17.5 |
| 17.5X10.5 | |
| 19.5" | one-piece 15° DC | 19.5X11.75 | 15R19.5 |
| 19.5X6.00 | 8R19.5 |
| 19.5X6.75 | 8R19.5 245/70R19.5 235/75R19.5 |
| 19.5X7.50 | 10R19.5 265/70R19.5 |
| 19.5X8.25 | 285/70R19.5 |
| 19.5X13.00 | 15.0X19.5 |
| 19.5X14.00 | 425/55R19.5 435/50R19.5 445/45R19.5 18-19.5 MPT |
| 22.5" | one-piece 15° DC | 22.5X5.5 | |
| 22.5X6.00 | 8.5R22.5 |
| 22.5X6.75 | 9R22.5 |
| 22.5X7.50 | 10R22.5 |
| 22.5X8.25 | 11R22.5 |
| 22.5X9.00 | 12R22.5 315/80R22.5 |
| 22.5X9.75 | 315/80R22.5 |
| 22.5X11.25 | 15-22.5 15R22.5 16.5/70R22.5 350/60R22.5 365/70R22.5 400/55R22.5 375/90R22.5 385/65R22.5 385/55R22.5 425R22.5 |
| 22.5X12.25 | 425/65R22.5 |
| 22.5X13.00 | 16.5R22.5 16.5/70R22.5 400/55R22.5 425/65R22.5 |
| 22.5X13.5 | 15-22.5 16.5-22.5 |
| 22.5X14.00 | 18R22.5 415/45R22.5 425/65R22.5 435/45R55.5 445/75R22.5 |
| 22.5X16.00 | 22.5-25.5 500/45-22.5 500/60R22.5 550/45-22.5 550/60-22.5 |
| 22.5X20.00 | 600/50-22.5, 600/55-22.5 650-50-22.5 |
| 22.5X24.00 | 700/40-22.5 750/45-22.5 |
| 24.5" | one-piece 15° DC | 24.5X8.25 | 11R24.5 |
| 24.5X11.75 | 385/55R24.5 385/55R24.5 |
| 24.5X13.00 | 16.5R24.5 425/65R24.5 |
| 24.5X15.00 | |
| 26.5" | one-piece 15° DC | 26.5X20.00 | 600/55-26.5 |
| 26.5X24.00 | 700/50-26.5 750/45-26.5 |
Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials
All products we supply will be with quality and guarantee...
For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.
For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.
Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
