| Prod Model: |
Launch X431 PRO Mini |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Launch X431 PRO Mini Car Diagnostic Scanner |
| Keyword: |
Launch X431 PRO |
| X431 PRO Mini: |
Same Function as Launch X431 PRO |
| Launch X-431 PRO Mini: |
with 6.8'' Tablet PC |
| Launch X431 Pros: |
More Bigger Bluetooth Connector Than X-431 PRO |
| X431 PRO Mini Version: |
Original Global Version |
| Software Update: |
Two Years Free Update Online |
| Launch X431 Scanner: |
Support WiFi and Bluetooth |
| Original X431 PRO: |
Support Multi Languages |
| System: |
Android System |
Product Description
2017 NEW original Launch X431 Pro mini X-431 pro mini with remote diagnosis update online diagun replacement
Highlights of Launch X431 Pro 2016:
1. Original New Released from Launch --- X431 Pro Mini
2. Wi-Fi: Supported
3. Bluetooth: Supported
4. Software Update Online, 2 Years Free Update
5. With High Quality Bluetooth Connector, Bluetooth connection with 100m
6. With Remote Diagnosis
7. Can be used other Android System Tablet or PC
8. X-431 PRO Mini Supported Multi Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Arabic, Traditional Chinese, etc.
Product Profile of Launch X-431 Pro Mini
X-431 PRO MINI is a stylish Android-based vehicle trouble diagnostic tool. It inherits from LAUNCH's advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Through the simple Bluetooth communication between the VCI module and X-431 PRO MINI, it achieves full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream,Actuation Test and Special Functions.
Moreover, it supports Wi-Fi connection, which enables you surf the Internet, update the diagnostic software online and perform remote diagnosis etc, getting your job fixed faster and easier.
X431 PRO MINI Features
1. Diagnostic Tool:
A. Diagnose
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read data stream, Special functions etc. Specially designed for Android platform with clear and user-friendly interface. Via Bluetooth, it is simple for the VCI module to communicate with X-431 PRO MINI. Equipped with an exclusive X-431 PRO MINI protective sleeve to prevent it from being damaged.
B. One-click Update: lets you update your diagnostic software more efficiently.
C. Repair Data: provides abundant automotive handbook, repair case and wiring diagrams for reference and retrieval.
D. Remote Diagnosis: configures X-431 PRO MINI as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.
2. Browser: built-in Wi-Fi module makes surfing on the internet freely.
3. Email: allows you to send and receive emails.
4. Settings: to configure your personalized X-431 PRO MINI through it.
5. Applications: other android based applications can be customized to install or uninstall.
Knowledge of X-431 PRO MINI
1.3.1 X-431 PRO MINI whole set
X-431 PRO MINI is mainly composed of an X-431 PRO MINI handset, and a DBSCar II VCI module.

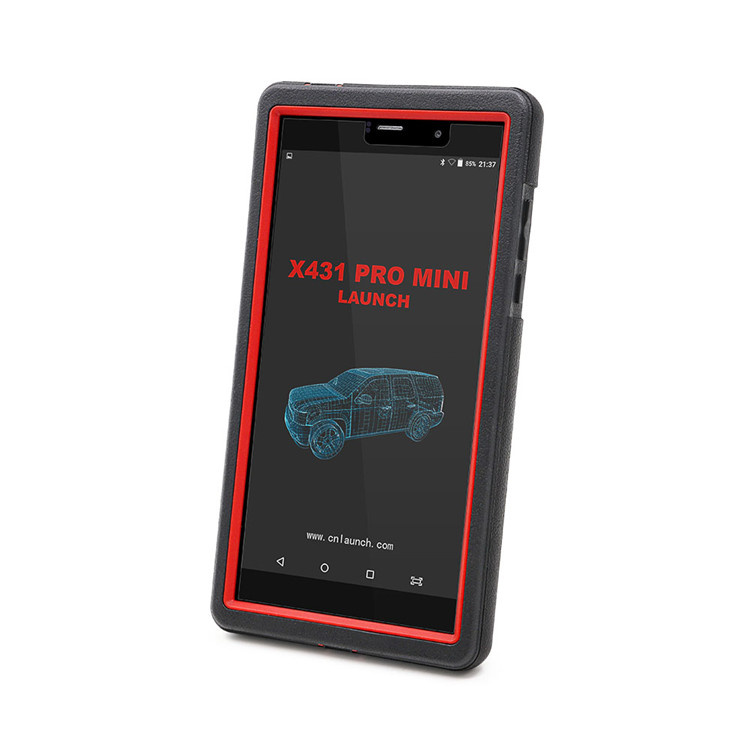

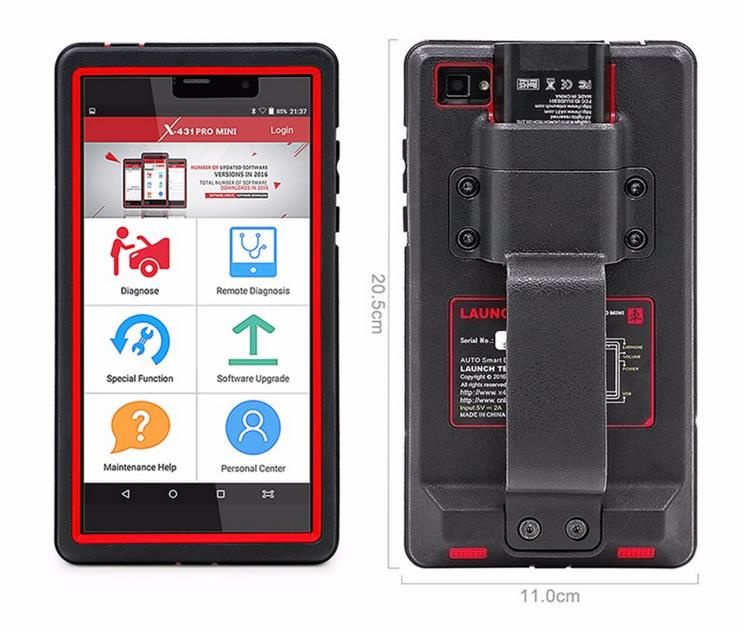

1.3.2 X-431 PRO MINI handset
Technical Parameters for Launch X431 Pro Mini
X-431 PRO MINI:
| Operating system | Android 5.1 |
| Processor Quad core | 1.3 GHz |
| Memory | 2GB |
| Storage | 16GB |
| LCD screen | 6.9 inch with a resolution of 1280 x 720 pixels |
| Camera | Front-facing 2MP camera + rear-facing 5MP camera |
| Battery | 3.7V/3000mh rechargeable polymer lithium battery |
Connectivity:
| Wi-Fi | WLAN 802.11b/g/n |
| Bluetooth | Bluetooth 4.1 |
| Working temperature | 0°C ~ 45°C |
| Storage temperature | -10°C~ 50°C |
VCI module:
| Working voltage | 9 ~18V |
| Average working current | About 85mA |
| Standby current | About 55mA |
| Working temperature | -10°C ~ 55°C |
| Storage temperature | -20°C~ 70°C |
| Relative humidity | 20% ~ 90% |

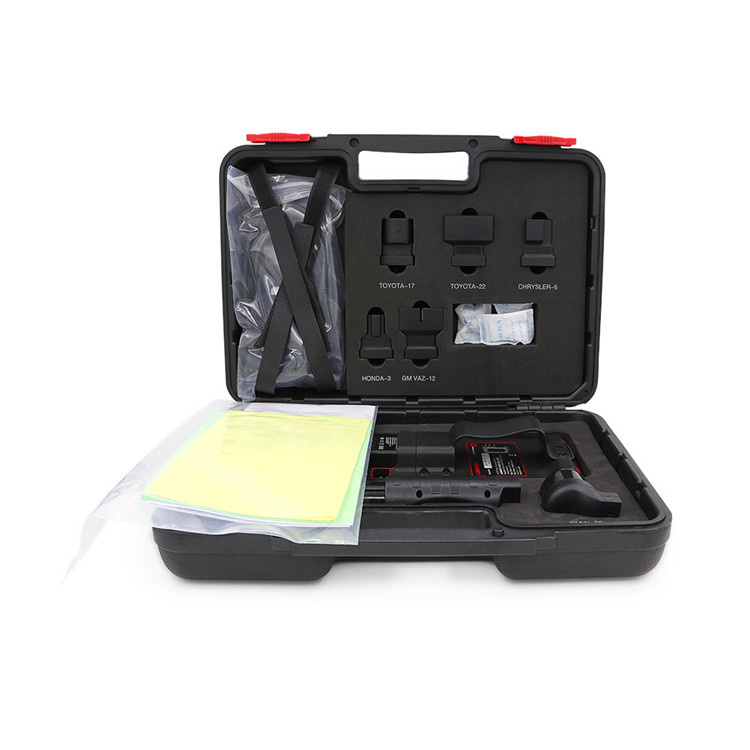

Package List of Original Launch X431 Pro Mini Scanner
While opening X-431 PRO MINI package for the first time, please carefully check the following components. Common accessories for each X-431 PRO MINI are same, but for different destinations, the accessories of
X431 PRO MINI may vary. Please consult from the local agency or check the package list supplied with X-431 PRO MINI together.
.. X-431 PRO MINI tablet
.. Password envelope
.. VCI module (For connecting OBD II vehicles)
.. OBD II extension cable
.. OBD I adaptor (For connecting the non-16pin diagnostic connector and the VCI module)
.. Battery clamps cable
.. Power adaptors
.. Non-16pin connectors (For connecting non-OBD II vehicle)
