2015 3rd Brake Light Camera for Ford Transit Custom

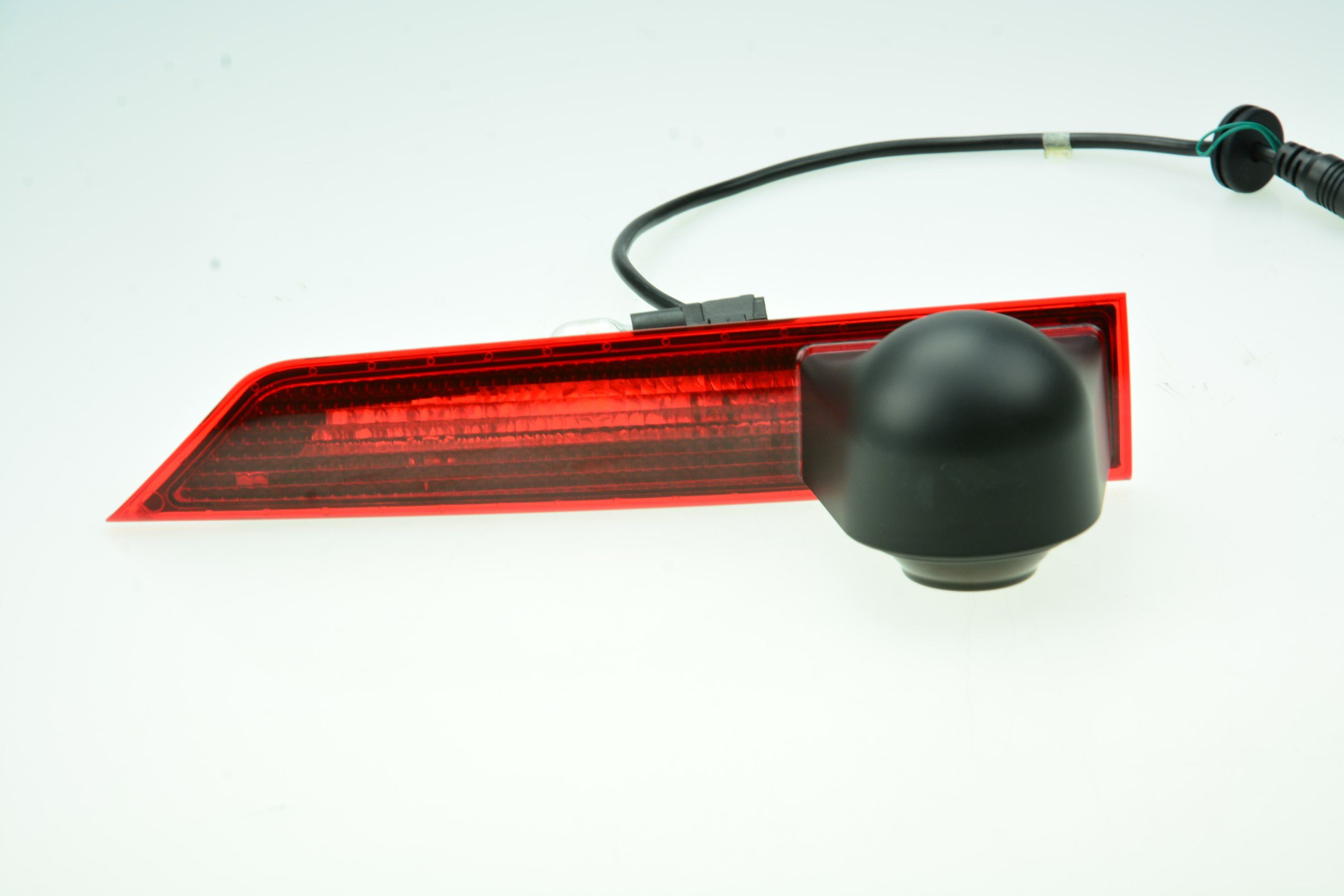

Name: 2015 3rd Brake Light Camera for Ford Transit Custom
Brand: ibuyautoparts.com
SKU: 818674045
Availability: InStock
Rating: 5 (145 reviews)

Price:	US $ 25.3-28.1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

product Specification:

BR-RVC07-TC, Ford Transit Custom brakelight camera, Can use for Ford Transit Custom 2012-2015. Producing newest ford transit custom brakelight camera,br-rvc07-TC with high-quality, 2008 - 2016 Brvision Technology is one of the best such manufacturers and suppliers, welcome to buy discount.

Key Specification:

Ford Transit Custom 2015 brake light camera

IP69K waterproof rating.

mirror image,

N/P System,

120 degree,

4P lock connector

12V power input

40C° to +80C° operation Temp

please buy extension cable as requirement.
Extra cost for extension cable:
1. BR-TC10: 10M 4P to 4P cabel
2. BR-AC04: 10M 4P to RCA, +, - cable
3. BR-AC04-15: 15M 4P to RCA,+,- cable

Item No.	BR-RVC07-TC
Image Type	1/3" 1/4 Color CCD/CMOS
Night vision	With IR lamp
TV System	NTSC/PAL
Lens Angle (Deg.)	120 degree
IP Rating	IP69K
Vibration Rate	10G
Connector	4P connector or RCA connector for selection
Effective Pixels	N: 510×492 pixels P: 500×582 pixels
Horizontal Resolution	420TVL/700TVL
B.L.C	Back light Compensation (Auto)
White Balance	Auto White Balance (Auto)
Minimum Illumination	0Lux (LED ON)
S/N Ratio	>=48dB
Electronic Shutter	1/60~1/100,000 Sec
Power consumption	<3W
Built-in Lens	f: 2.8mm
Power Consumption	DC 12V (+/-10%)
Audio	available
Operation Temperature	-30ºC~+70ºC.RH95% Max
Storage Temperature	-40ºC~+80ºC.RH95% Max
Certificate	FCC,CE, E-mark,ISO9001,TS16984, RoHs

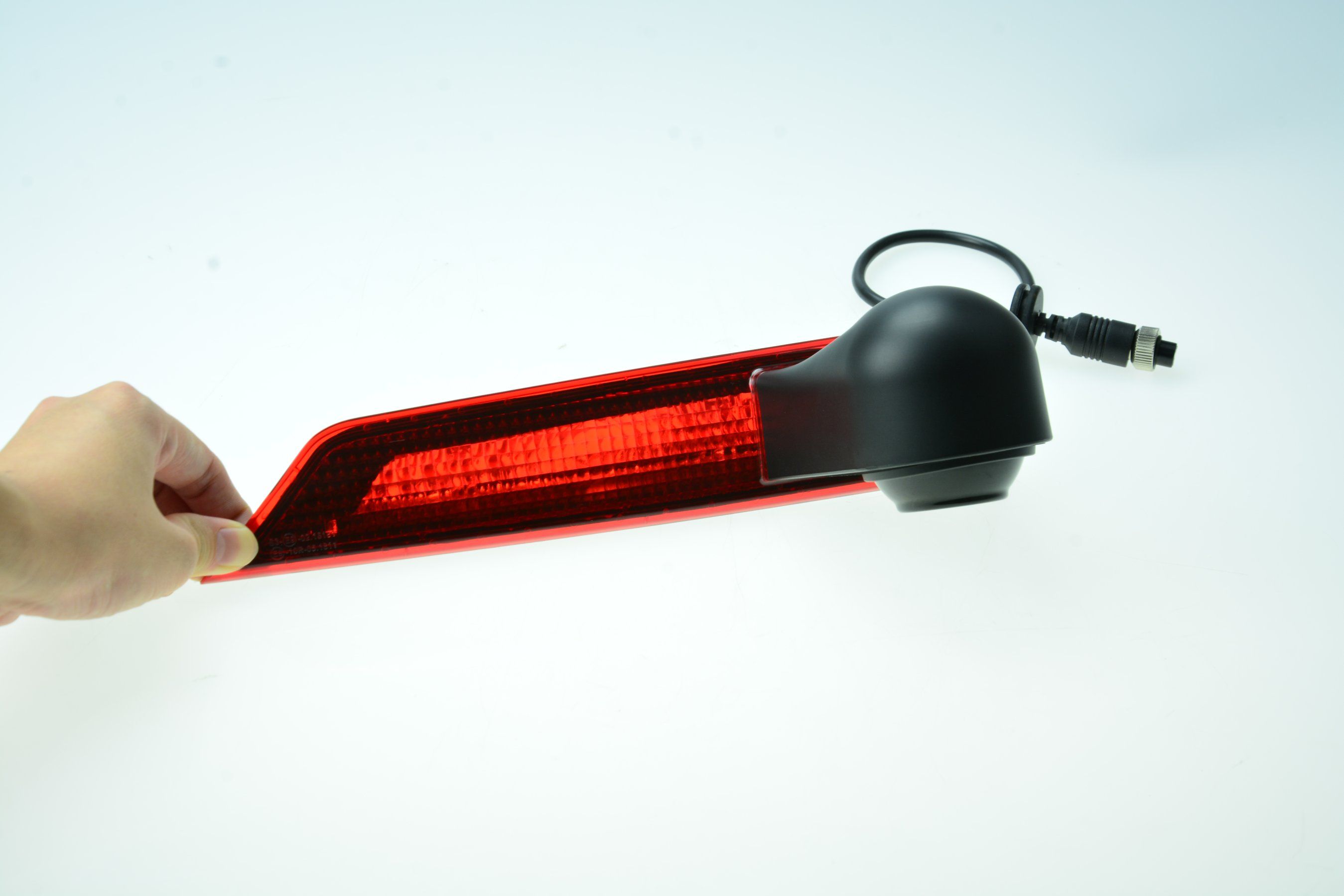

More detail picture:

Our trade show:

About us:
Since 2008, BRVISION is a manufacture and company serving the Heavy-duty truck and commercial vehicle industry with vehicle safety systems, including reversing camera, monitor, parking sensor and mobile DVR etc.
Over a decades, we have established a professional R&D team and International sales team to exceed our customer's expectations in technology ,quality ,service, design and on-time delivery. We also offer some OEM/ODM project to meet specific customer requirement.
Our mission is providing you an improved version, more information on how BRVISION can offer an improved version contact us now.

Prod Model:	BR-RVC07-TC
System:	NTSC/PAL
Angle:	170 Degree
Power:	12V Power Input
Image:	Normal/Mirror Image
Night Vision:	with IR Lamp
Chip:	CCD
Probe Number:	1
Interface:	4p Lock Connector/RCA
Definition:	700tvl
Waterproof Grade:	IP69k

BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
