2 Level Garage Invisible Car Parking Lift with Roof

Name: 2 Level Garage Invisible Car Parking Lift with Roof
Brand: ibuyautoparts.com
SKU: 690756871
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 4000-9500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DDCP
Load Capacity:	5000kg
Platform Size:	5500*2500mm or Customized
Lifting Height:	2500mm or Customized
Height:	560mm
Power:	7.5kw
Speed:	6m/Min
Materials:	Mn Steel
Working Condition:	Inddor or Outdoor
Driving Mechanism:	Hydraulic
Warranty:	12 Months
Type:	Double Cylinder Hydraulic Lift
Certification:	CE
Design:	Scissor
Lifting Capacity:	5 T
Brand:	Moral

Product Description

2 Level Garage Invisible Car Parking Lift with Roof

Main features:

1) Load capacity: 2000kgs (below platform)
2000kgs (upper platform)
2) Platform size: 5.5m x 2.5m (below platform)
5.5m x 2.5m (upper platform)
3) Lift height: 2.5m

4) Height between platforms: 2.5m

5) Platform Material: rectangular tube + checkered iron

6) Scissor material: high strength Manganese Steel.

7) Hydraulic system: 380V/5.5Kw or as your requests.

8) High Precision Hydraulic Cylinder

9) Piston Rod: hard chromium plating surface.

10) High-pressure oil pump

11) Hydraulic oil: in summer 46#, in winter 32#

12) Controller: 1 control box below, 1 control panel above platform

Techinical Specification:

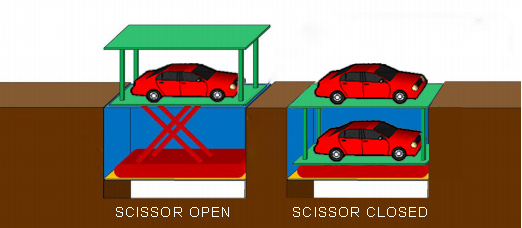

1) Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the lift to stop at accurate position.
3)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.
5) Control system adopt elevator control system, very convenient and safety.
6) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

Parameters:

Model	SJG5-2.5
Lifting capacity	5000kg
Lifting height	2550mm
Size of platform	5500 X 2500 mms. ( Diamond steel sheet metal )
Motor power	5.5kw
Power supply	AC 220V/380V 50HZ/60HZ
Speed	100mm/s
Weight	2150KG

Pictures:

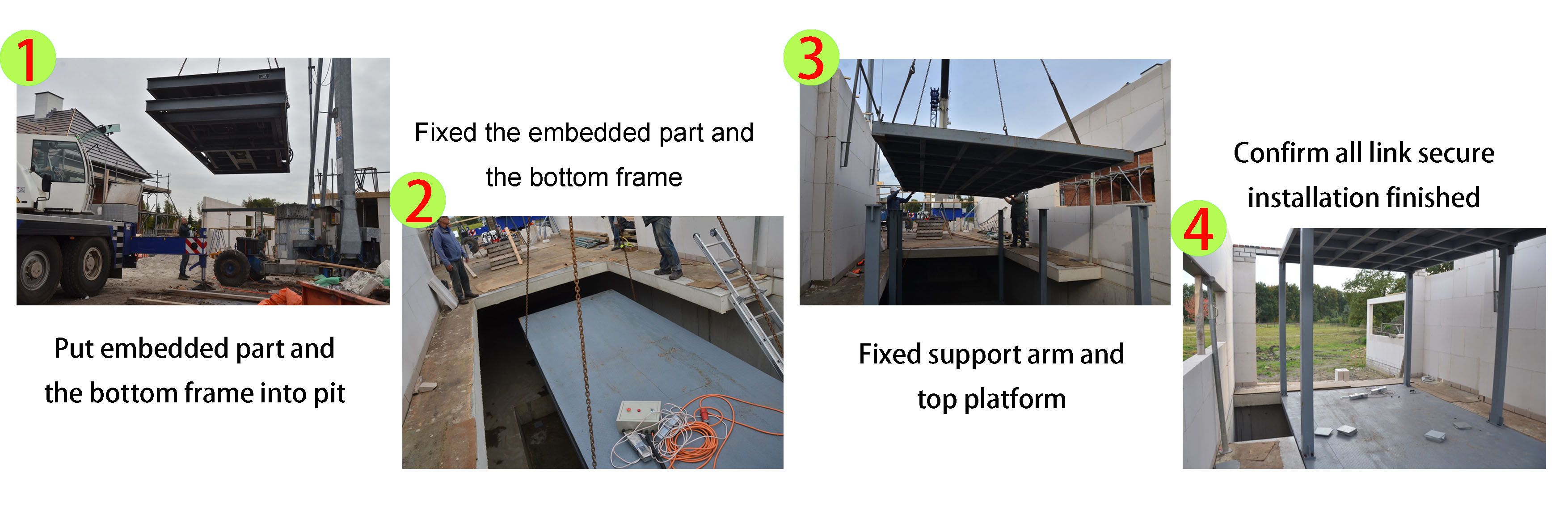

Installation Step

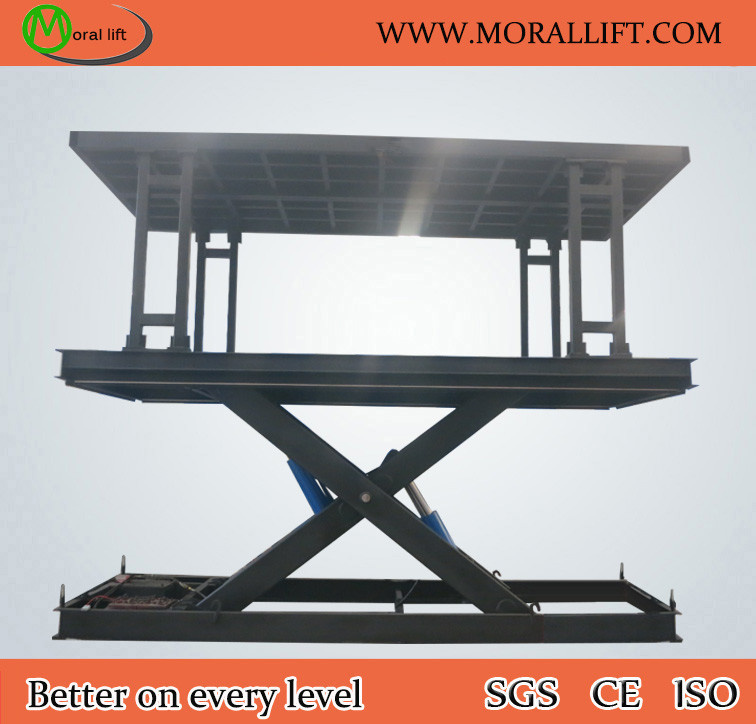

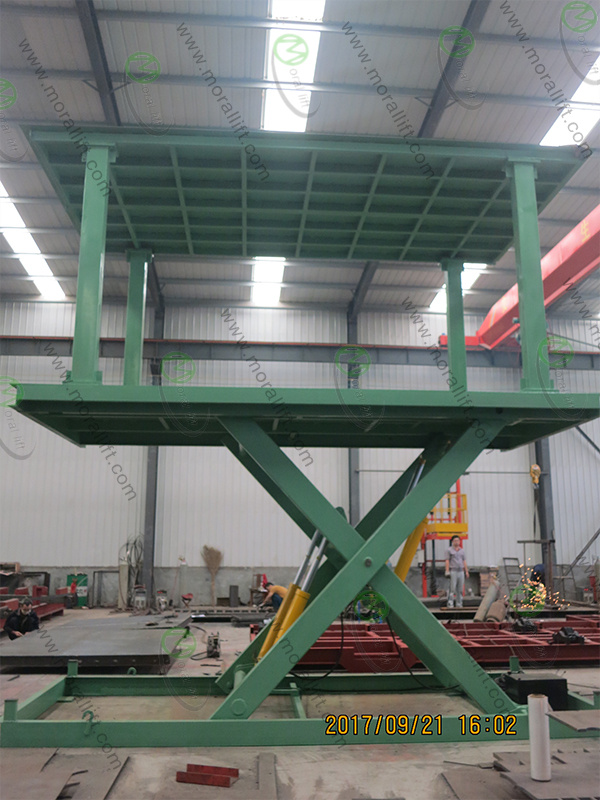

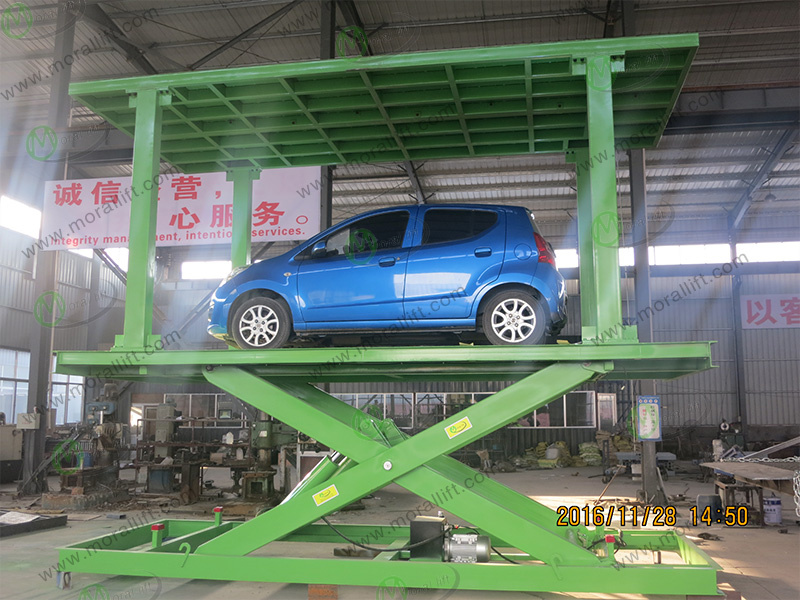

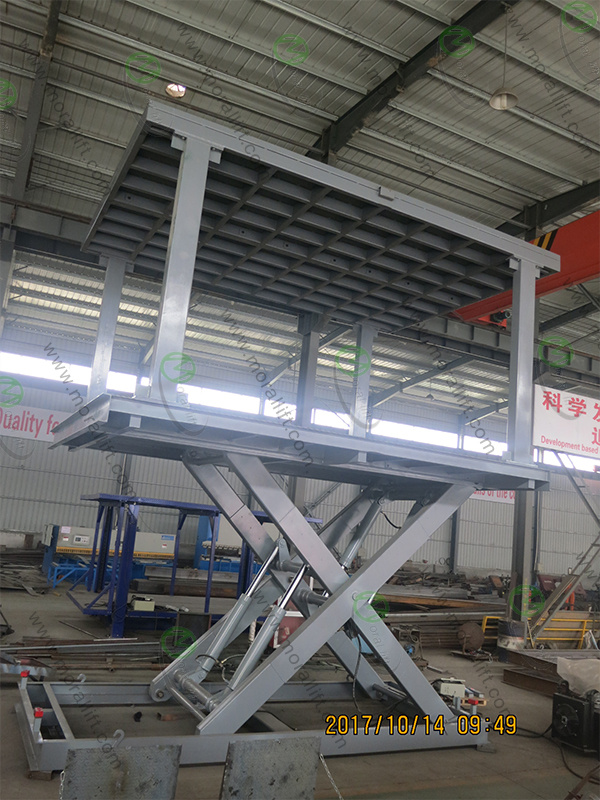

Sample Picture:
