16000lbs Truck Winch for Car

Name: 16000lbs Truck Winch for Car
Brand: ibuyautoparts.com
SKU: 688333221
Availability: InStock
Rating: 4.4 (84 reviews)

Price:	US $ 370-395/Piece
Min Order:	15/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

zhme 16000lbs Truck Winch with wire rope

1.Hardened steel 3-stage planetary gear train Rugged and quiet planetary gearing for maximum mechanical efficiency the gears with 1.75 modul, big tooth which is stronger and more reliable, low-temperature grease(-40 degree) suit for atrocious weather.

2.Automatic, full load brake.

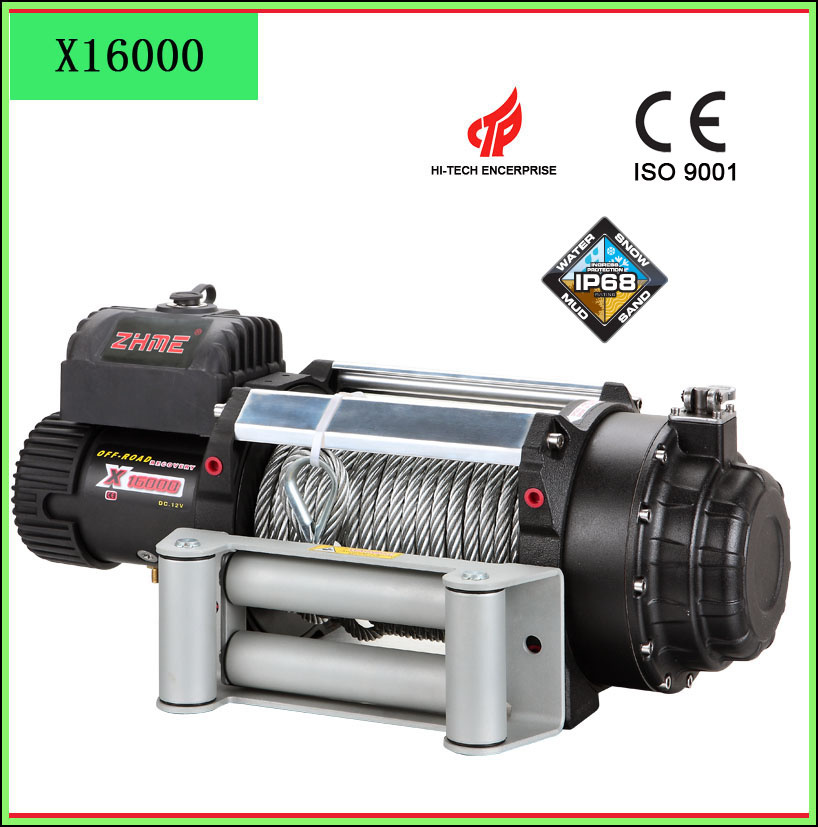

Truck winch x16000
Rated line pull: 16000lbs (7258 kgs) Single line.

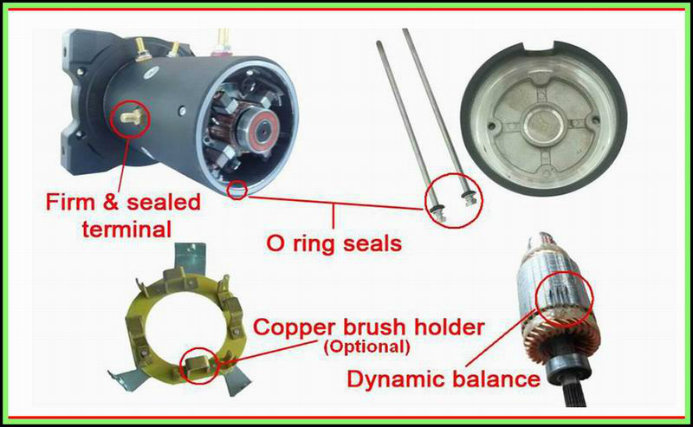

Motor: Seires Wound 6.8HP/5.0 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 345: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Wire rope 11.5mmX26m

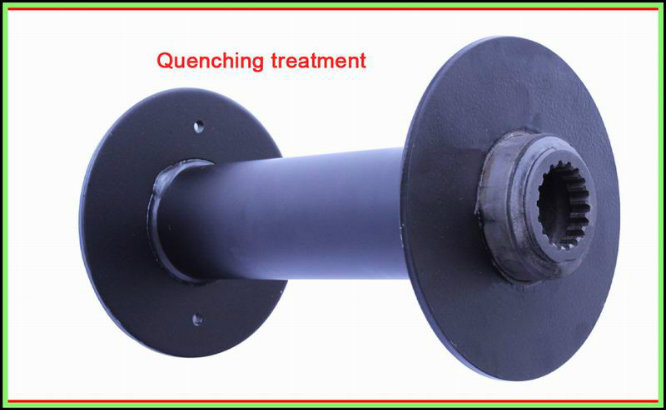

Drum size: 3.5"X 8.8" ( 88mm X 224mm)
Dimensions: 23.9"X8.5"X9.4"(608mm X 216mm X 239mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 32Square mm, 72" ( 1.83m)
N. W: 132 lbs (60 kg)
Packing: 700mm X 300mm X 400mm / Carton

One 20 feet container covers 300 cartons, If need, Use pallets.

Line pull	Lbs	0	2000	6000	12000	16000
Line pull	Kgs	0	907	2710	5443	7258
Line speed	FPM	19.7	12.5	8.2	6.2	4.3
Line speed	MPM	6	3.8	2.5	1.9	1.3
Motor current	Amps	70	120	200	290	420

Line pull and cable capacity

Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	16000	14720	12580	9960
Rated line pull per layer	Kgs	7258	6677	5706	4518
Cable capacity per layer	Ft.	17.6	37	63	85
Cable capacity per layer	M	5.4	11.4	19.4	26

Prod Model:	X16000
Finishing:	Black Textured
Type:	Electric Winch
Power Type:	Series Motor DC
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	CE
Pull Direction:	4-Way
Brand:	Zhme

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
