16"X10" Bead Lock Steel Wheel for 4X4
| Price: |
US $ 15/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
16x10 |
| Size: |
16X6/16X7/X16X8/16X10 |
| PCD: |
5X114.3/5X120.65/5X139.7/6X139.7/8X165.1 |
| Et: |
-35~+30 |
| Loading Capacity: |
3500lbs |
| CB: |
71.6-130.8mm |
| Tire: |
365/75r16 |
| Material: |
Steel |
| Type: |
Rim |
| Drive Wheel: |
4WD |
| Wheel Hub Diameter: |
16-20" |
| Finishing: |
Black |
| Wheel Accessories: |
Wheel Spoke |
| Spoke Type: |
Equal Diameter Spoke |
| Wheel Hub Brand: |
Obt |
Product Description
Technical parameters
| RIM SIZE | PCD (MM) | CB (MM) | ET (MM) | LOAD CAPACITY (LB) | TYRE SIZE |
| 14X6 | 6X139.7 | 108.7 | -15~14 | 1870 | |
| 15×7J | 5/114.3 | 84/75/71.6 | -15~15 | 2600 | 235/75R15 |
| 5/120.65 | 84 | -15~15 | 2600 |
| 5/127 | 84 | -15~15 | 2600 |
| 5/139.7 | 108 | -15~15 | 2600 |
| 5/139.7 | 110 | -15~15 | 2600 |
| 6/139.7 | 108 | -15~15 | 2600 |
| 6/139.7 | 110.5 | -15~15 | 2600 |
| 15×8J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 | |
| 5/114.3 | 84 | -25~15 | 2600 |
| 5/120.65 | 84 | -25~15 | 2600 |
| 5/127 | 75 | -25~15 | 2600 |
| 5/127 | 84 | -25~15 | 2600 |
| 5/139.7 | 108 | -25~15 | 2600 |
| 5/139.7 | 110 | -25~15 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6/139.7 | 108 | -25~15 | 2600 |
| 6/139.7 | 110 | -25~15 | 2600 |
| 15*10 | 5-114.3 | 84/75/71.6 | -46~ +58 | 2600 | 325/50R15 FOR 15X10 |
| 5-120.65 | 84 | -46~ +58 | 2600 |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 16×6J | 5-114.3 | 84 | -17~ +6 | 3200 | 235/85R16 |
| 5-150 | 112 | 0~ +10 | 3200 |
| 5-139.7 | 108.7/110 | -17~ +10 | 3200 |
| 5-165 | 124 | 0~ +15 | 3200 |
| 6/139.7 | 108.7 | 0 | 3200 |
| 6-114.3 | 84 | -17~ +6 | 3200 |
| 6/165.1 | 130.8 | 0 | 3200 |
| 8/165.1 | 124 | 0 | 3500 |
| 8/165.1 | 125.7 | 0 | 3500 |
| 8/165.1 | 130.8 | 0 | 3500 |
| 16×7J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 | 245/75/R16 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75/84 | -12~ +35 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3200 |
| 5/150 | 112 | 0~5 | 3200 |
| 5/165.1 | 125 | 0~8 | 3200 |
| 6/139.7 | 108.7 | -25~15 | 3200 |
| 6/139.7 | 110.1 | -28~0 | 3200 |
| 8/165.1 | 130.8 | -25~15 | 3500 |
| 16×8J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 | 285/75r16 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -25~15 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 |
| 16×10J | 5-120.65 | 75 | -12~ +35 | 3500 | 365/75R16 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -35~30 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 130.8 | -25~15 | 3500 |
| 17X8 | 6X139.7 | 108.7 | -6 | 3200 | 285 75R17 |
| 17x8 | 5x127 | 84 | 0 | 3200 |
| 17x8 | 5x139.7 | 108.7or110 | 0 | 3200 |

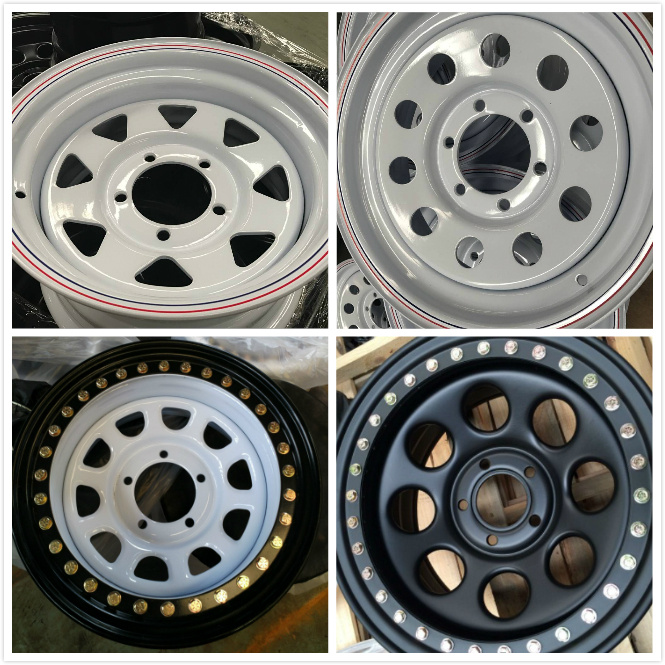

8 spoke type
Modular type

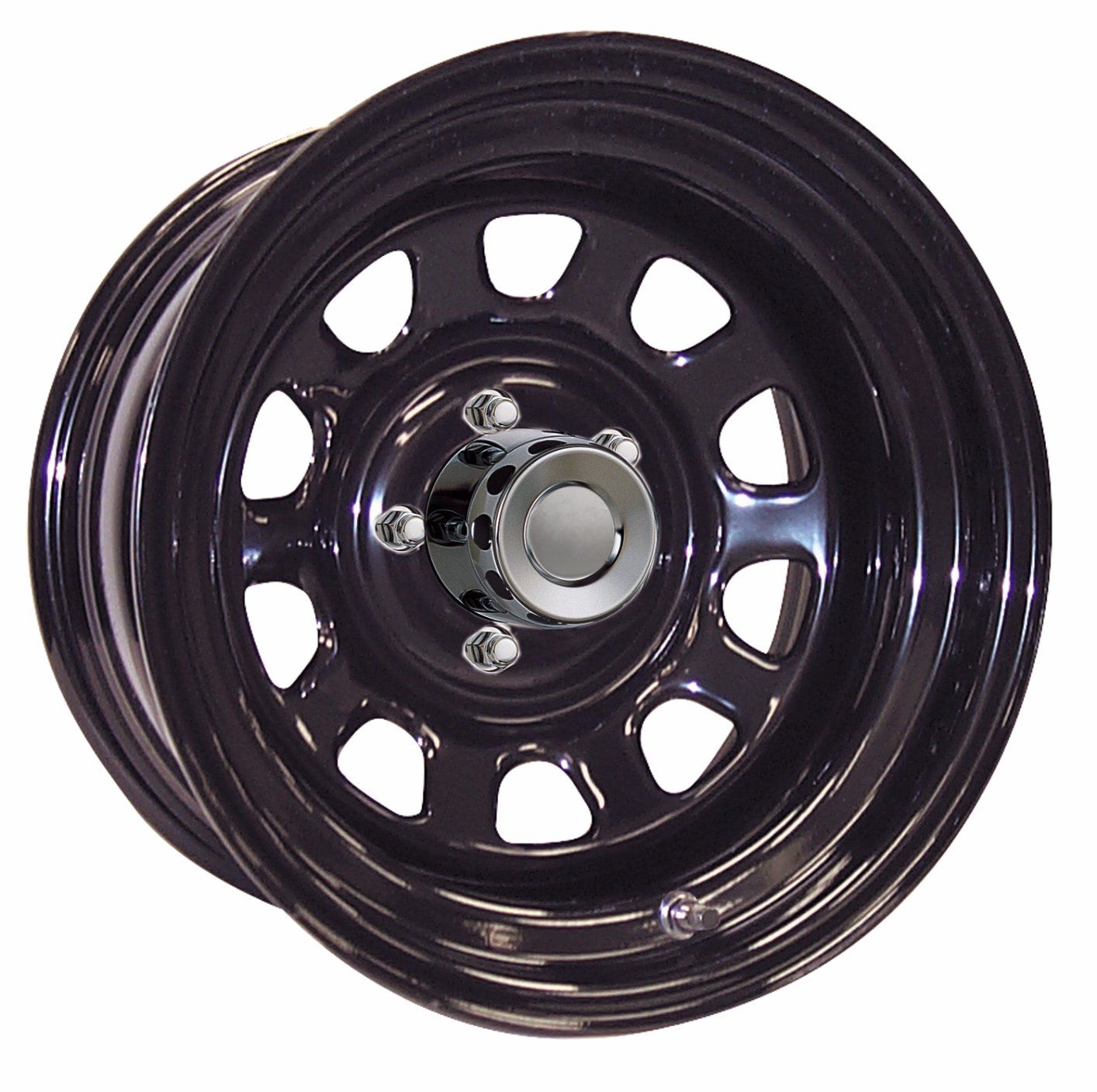

D type wheel
Beadlock wheel

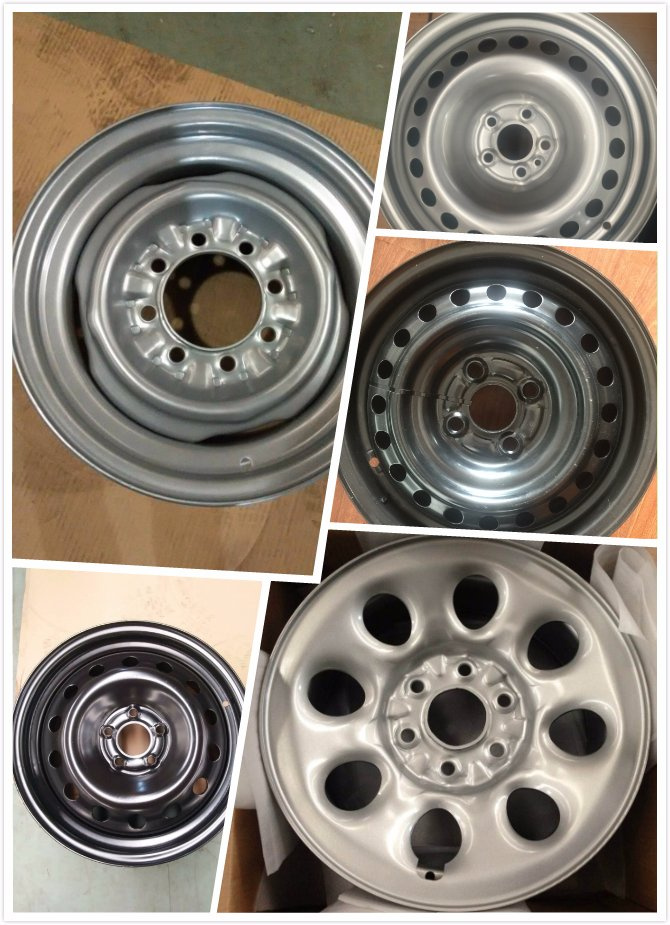

Other wheels for car use

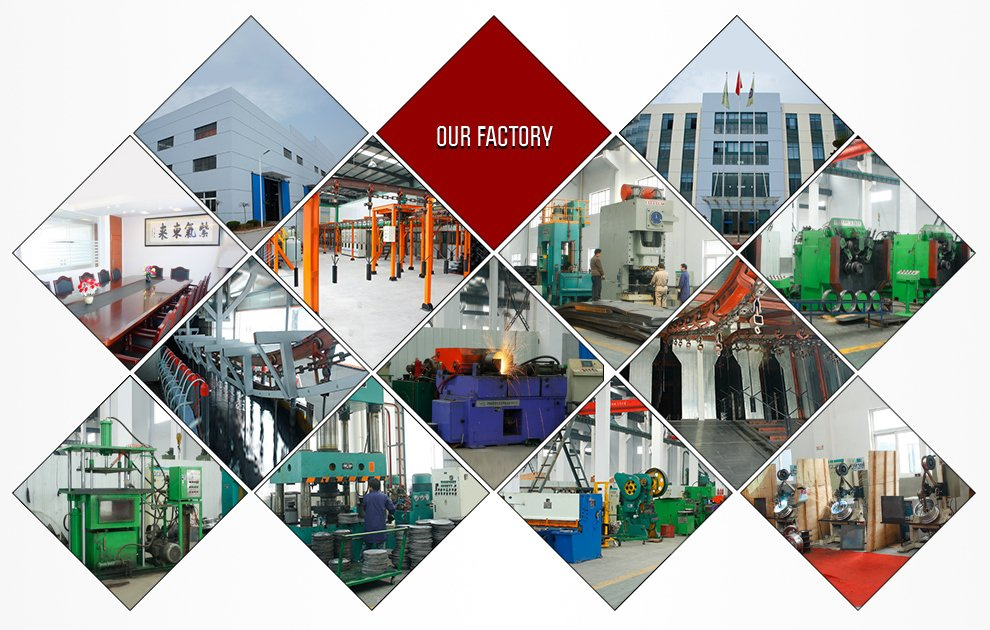

Our factory located in Qingdao city
