OBT company specialized in designing and producing all size and types trailer wheel in China since 1997.
We offer 360 degree service for clients.
-1.Special design the wheel as your need,we are offering this item to over 20 big distributors and factories.-2.Offer assembling service,to make one unit for your tire and wheel.
-3.Really fast respond,to solve and find the way to the problem within 48 hous.
Technical parameters of trailer wheels| RIM SIZE | PCD (MM) | CB (MM) | ET (MM) | LOAD CAPACITY (LB) |
| 10x4.5 | 4x100 | 67.5 | 0 | 800 |
| 10x3.5 | 4x100 | 68 | 0 | 800 |
| 12×4J | 4/101.6 | 71.6 | 0 | 1045 |
| 5/114.3 | 75 | 0 | 1100 |
| 13×4.5J | 4/100 | 68 | -13~0 | 1100 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~+3 | 1100 |
| 5/108 | 75 | -10~0 | 1480 |
| 5/114.3 | 75 | -10~0 | 1480 |
| 5/114.3 | 81.5 | -10~0 | 1480 |
| 13×5.5J | 4/100 | 73 | -10~0 | 1480 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~0 | 1480 |
| 5/108 | 75 | -10~0 | 1480 |
| 5/114.3 | 75 | -10~0 | 1480 |
| 5/114.3 | 81.5 | -10~0 | 1480 |
| 14x5J | 5-108 | 75 | -5~ +8 | 1870 |
| 5/120.65 | 84 | 0~14 | 1870 |
| 5-114.3 | 81/84 | -14~0 | 1870 |
| 14×5.5J OR14X6 | 5/114.3 | 81/84 | 0 | 1870 |
| 4/100 | 75 | -10~22 | 1870 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~18 | 1870 |
| 4/139.7 | 108.7 | -10~18 | 1870 |
| 5/120.65 | 84 | -4~20 | 1870 |
| 5/108 | 75 | -10~22 | 1870 |
| 5/114.3 | 81/84 | -10~18 | 1870 |
| 5-139.7 | 108.7 | -17~ +15 | 1870 |
| 5-160 | 125 | -10~ +30 | |
| 6/139.7 | 108.7 | -10~18 | 1870 |
| 6/139.7 | 110 | -10~18 | 1870 |
| 14*7 | 4-100 | 75 | +4~ +37 | 1870 |
| 5-114.3 | 84 | -10~ +23 | 1870 |
| 5-139.7 | 108.7 | -3~ +30 | 1870 |
| 6-139.7 | 108.7 | -3~ +30 | 1870 |
| 15×5J | 5/114.3 | 81/84 | -10~10 | 2050 |
| 5/127 | 81/84 | -10~10 | 2050 |
| 15×6J | 5/114.3 | 84 | -10~10 | 2150 |
| 5-120.65 | 84 | -22~ +8 | 2150 |
| 5/127 | 84 | -10~10 | 2150 |
| 5/139.7 | 108.8 | -10~10 | 2150 |
| 5/139.7 | 110 | -10~10 | 2150 |
| 6/139.7 | 108.8 | -10~10 | 2600 |
| 6/139.7 | 110 | -10~10 | 2600 |
| 15×7J | 5/114.3 | 84/75/71.6 | -15~15 | 2600 |
| 5/120.65 | 84 | -15~15 | 2600 |
| 5/127 | 84 | -15~15 | 2600 |
| 5/139.7 | 108 | -15~15 | 2600 |
| 5/139.7 | 110 | -15~15 | 2600 |
| 6/139.7 | 108 | -15~15 | 2600 |
| 6/139.7 | 110.5 | -15~15 | 2600 |
| 8x165.1 | 130.8 | -15~15 | 2600 |
| 15×8J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 |
| 5/120.65 | 84 | -25~15 | 2600 |
| 5/127 | 75 | -25~15 | 2600 |
| 5/127 | 84 | -25~15 | 2600 |
| 5/139.7 | 108 | -25~15 | 2600 |
| 5/139.7 | 110 | -25~15 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6/139.7 | 108 | -25~15 | 2600 |
| 6/139.7 | 110 | -25~15 | 2600 |
| 15x8 | 8x165.1 | 130.8 | -15~15 | 2600 |
| 15×9J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 |
| 5/120.65 | 84 | -25~15 | 2600 |
| 5/127 | 75 | -25~15 | 2600 |
| 5/127 | 84 | -25~15 | 2600 |
| 5/139.7 | 108 | -25~15 | 2600 |
| 5/139.7 | 110 | -25~15 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6/139.7 | 108 | -25~15 | 2600 |
| 6/139.7 | 110 | -25~15 | 2600 |
| 15*10 or 15X12 | 5-114.3 | 84/75/71.6 | -46~ +58 | 2600 |
| 5-120.65 | 84 | -46~ +58 | 2600 |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 15x10 | 8x165.1 | 130.8 | -32 | 2600 |
| 16×6J | 5-114.3 | 84 | -17~ +6 | 3200 |
| 5-150 | 112 | 0~ +10 | 3200 |
| 5-139.7 | 108.7/110 | -17~ +10 | 3200 |
| 5-165 | 124 | 0~ +15 | 3200 |
| 6/139.7 | 108.7 | 0 | 3200 |
| 6-114.3 | 84 | -17~ +6 | 3200 |
| 6/165.1 | 130.8 | 0 | 3200 |
| 8/165.1 | 124 | 0 | 3500 |
| 8/165.1 | 125.7 | 0 | 3500 |
| 8/165.1 | 130.8 | 0 | 3500 |
| 16×7J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75/84 | -12~ +35 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3200 |
| 5/150 | 112 | 0~5 | 3200 |
| 5/165.1 | 125 | 0~8 | 3200 |
| 6/139.7 | 108.7 | -25~15 | 3200 |
| 6/139.7 | 110.1 | -28~0 | 3200 |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 |
| 16×8J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -25~15 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 |
| 16×10J | 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -35~30 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 130.8 | -25~15 | 3500 |
| 17X8 | 6X139.7 | 108.7 | -6 | 3200 |
| 17x8 | 5x127 | 84 | 0 | 3200 |
| 17x8 | 5x139.7 | 108.7or110 | 0 | 3200 |

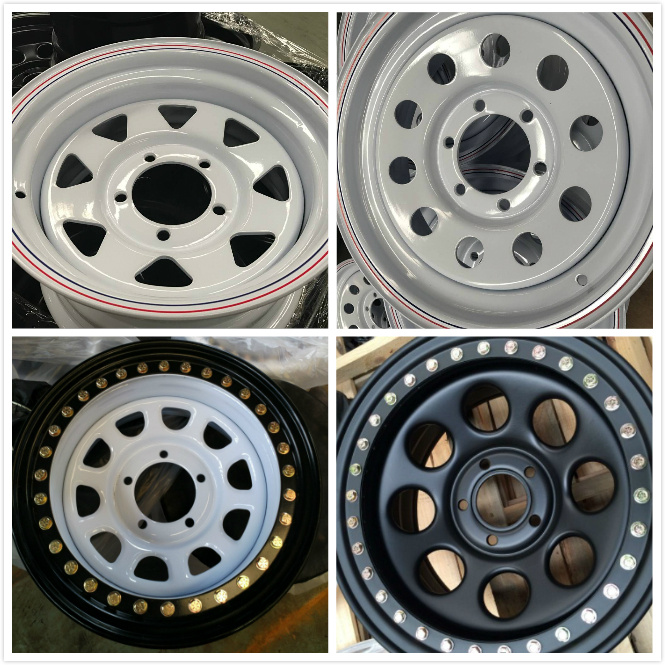

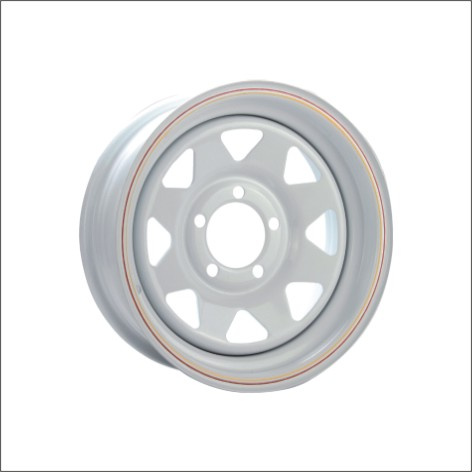

8 spoke type
Modular type
D type wheel
Beadlock wheel
Customized availableWe have produced over 30 series of wheel based on clients requirements.
That including DAYTONA,DAEWOO,HYUNDAI,LADA,RENAULT,Nissan,Chevrolet,Skoda,Opel,etc.

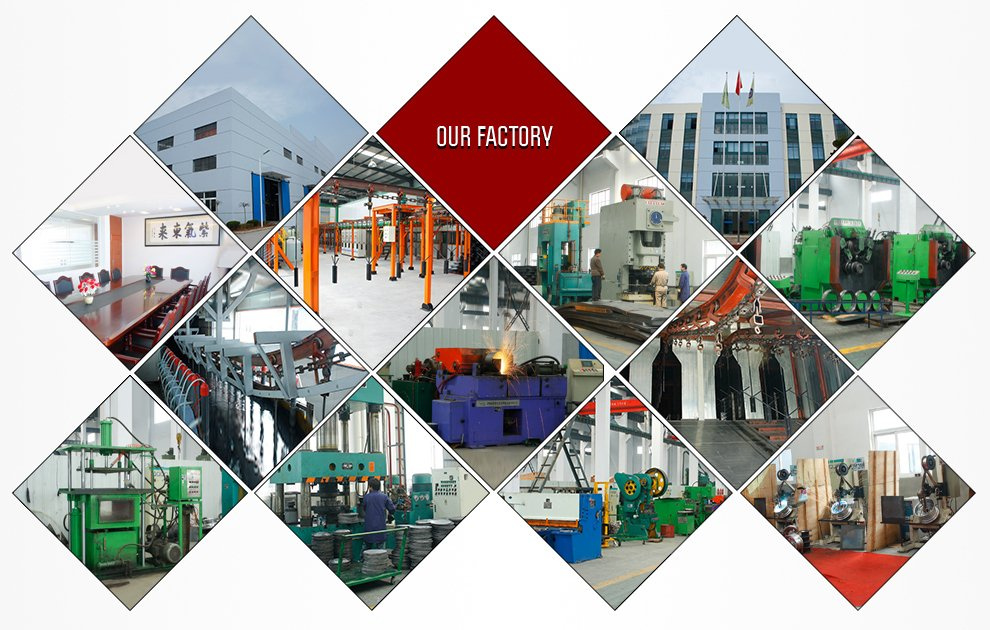

Our factory located in Qingdao city

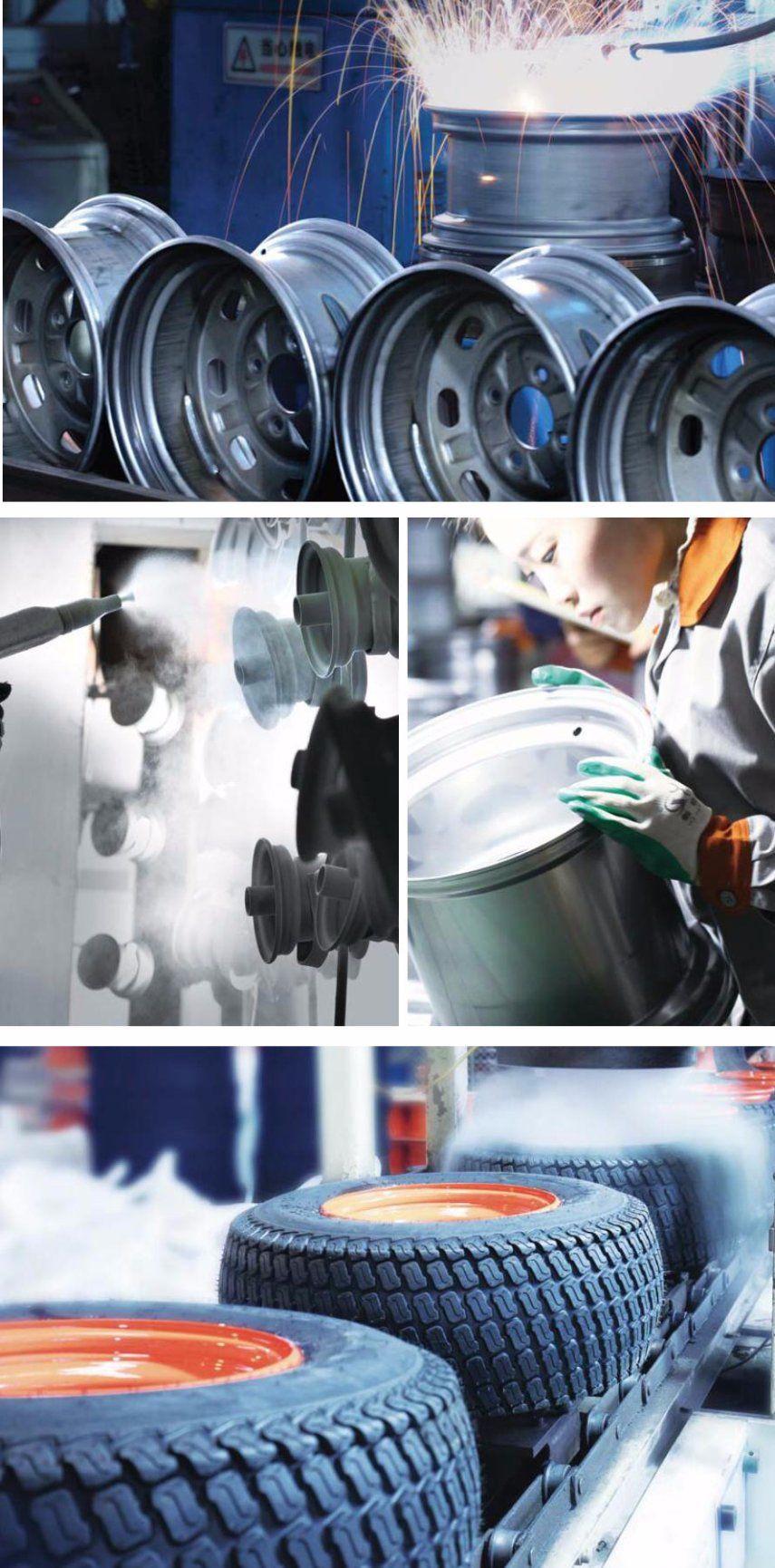

-1.Cutting raw material
-2.Drilling the hole
-3.Welding
-4.Rolling and press
-5.Welding spoke with rim
-6.Powder coating and test the surface
-7.Assembling the tire

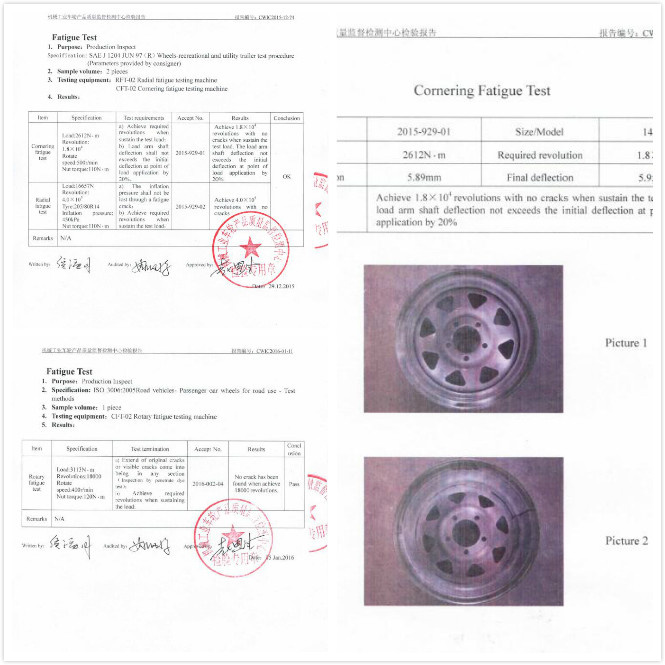

Passed the report before delivery
We welcome to your inquiry and coming.
Sale manager:Kaka Wei
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
