14t German Type Semi Trailer Three Axle Air Suspension with Front Axle Lifted
| Price: |
US $ 1000-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
14T German type semi trailer three axle air suspension with front axle lifted
14T German type semi trailer three axle air suspension with front axle lifted Introduction:1.Chengyu 14T German type semi trailer axle with special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight. 2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability. 3).High performance premium non-asbestos brake linings, extend service life. 4).Easy for ABS installation. 5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety. 6).New tight fit hub cap,O rings, high property for sealing. 7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance. 8)..Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims

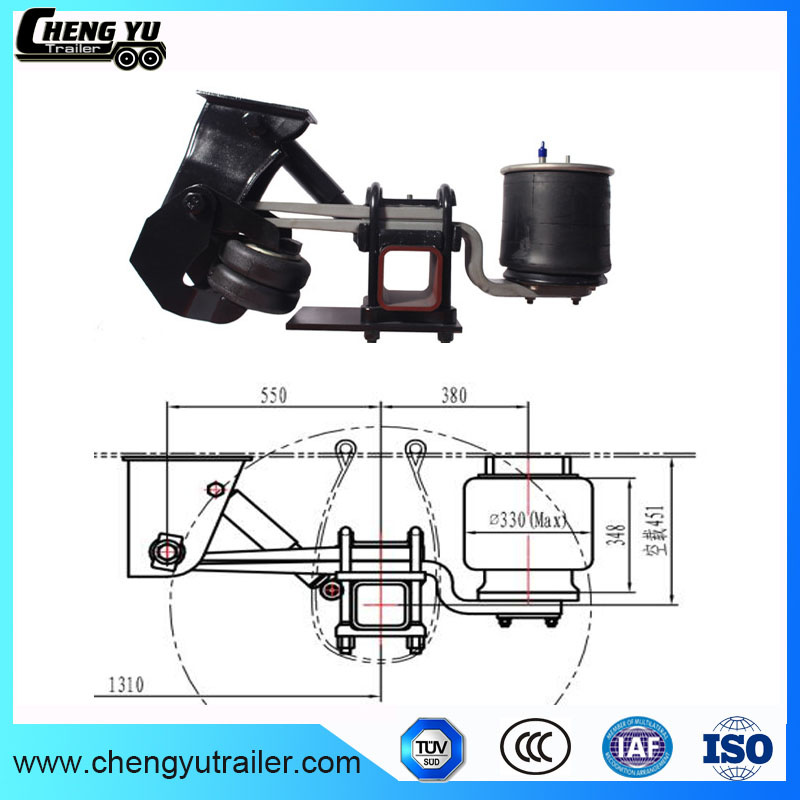

14t semi trailer axle with lift air suspension specificationCapacity(kg):14000
Brake Series:420*200
Track length(mm):1910
Spring distence(mm):900
Axle beam(mm):square 150
Stud(mm):10-M22×1.5 ISO
P.C.D:335
Bearing:33213
Type:Outboard
Air suspension height:450
Sping center bolt distance:500/380
All the specifications can be designed as your requirement.Our factoryQingdao Shuibo Chengyu Import&Export Co.,Ltd Belongs To Chengyu Group Which Is One of The Biggest Manufacturers For All Kinds Of Trucks, Especially For The Semi Trailers And Parts In Shandong. Located in the famous "Water Margin" hometown -- The "China Special Vehicle Production Base" .
Chengyu Group Has More Than 500 Staffs,Including One 20 Years' Experienced Engineering Technicians Team. With An Annual Output Production Capacity Of 20,000 Sets Of Special Purpose Vehicles, 100,000 Pieces of Semi Trailer Axles,50,000 Sets Suspensions.
Our service:1. OEM Manufacturing welcome: Product, Package...
2. Sample order accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sales service.
5.We will track the products for you once every two days, until you get the products.
6.When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
There are also more other semi trailer spare parts for your choice,please send us inquiry.Welcome to contact us:Website:http://www.chengyutrailer.com
Tel:86-532-86984246
Fax:86-532-86984246
Mobile:86-13780604743
Address:No.216 Changjiang Road,Qingdao,China
| Load Capacity(Kg): |
14000 |
| Track Length(mm): |
1910 |
| Axle Beam(mm): |
Square 150*14 |
| Brake Series(mm): |
420*200 |
| Spring Distence(mm): |
900 |
| Stud(mm): |
10-M22-1.5 ISO |
| P.C.D: |
335 |
| Bearing: |
33213 |
| Recommend Wheel: |
8.25-22.5 |
| Air Suspension: |
Lifted |
Chengyu Trailer belongs to Chengyu Group which is one of the biggest manufacturers for all kinds of trucks, especially for the semi trailers and parts in shandong. Located in the famous "Water Margin" hometown -- The "China Special Vehicle Production Base". Chengyu Group has more than 500 Staffs, including one 20 Years' experienced engineering technicians team. With an annual output production capacity of 20, 000 sets of special purpose vehicles, 100, 000 pieces of semi trailer axles 50, 000 sets suspensions.
Our leading products include "Chengyu" brand semi trailer, fuel tanker, particle material tank trailer, bulk cement tanker, concrete mixer and pump truck and other special vehicles. "Chengyu" brand axle, air Suspension, landing gear and other parts are also popular used by all over the world customers.

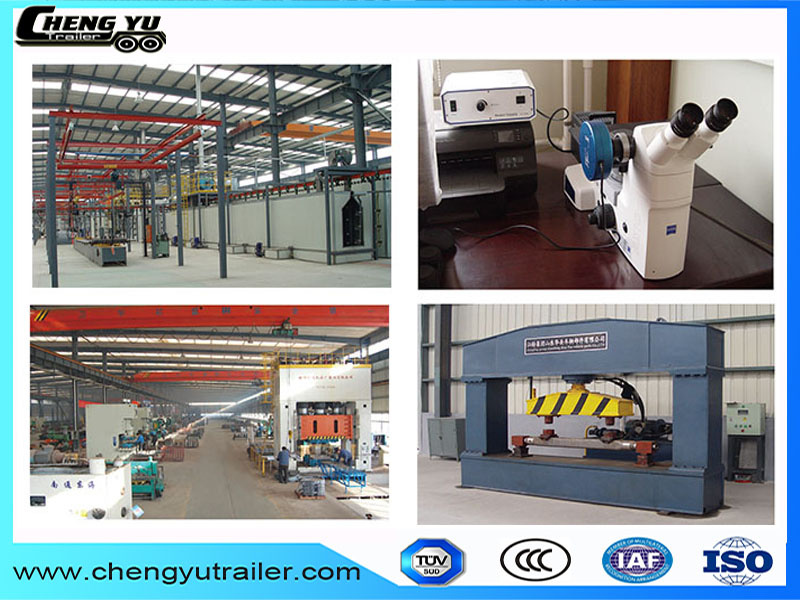

Chengyu relies on the world first-class production line, professional R&D, technical team and skilled workers has won the IS09001: 2000, ISO/TS16949: 2009 and won the title of Brand-Name Products In Shandong Province; USA DOT and Europe EMARK Certificates.
As a leader of China special vehicle industry, Chengyu got the recognition and support by vast number customers and friends during the past 20 years development, Chengyu is willing to cooperate with customers and friends all over the world to create a brilliant tomorrow.
