Leaf Spring Type Air Suspension with Lift Axle for Heavy Duty Semi Trailer
| Price: |
US $ 1000-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
American type drum brake axle air suspension for tridem heavy duty semi trailer
American type drum brake axle air suspension for tridem heavy duty semi trailer Introduction:1.Chengyu 14T German type semi trailer axle with special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight. 2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability. 3).High performance premium non-asbestos brake linings, extend service life. 4).Easy for ABS installation. 5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety. 6).New tight fit hub cap,O rings, high property for sealing. 7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance. 8)..Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims

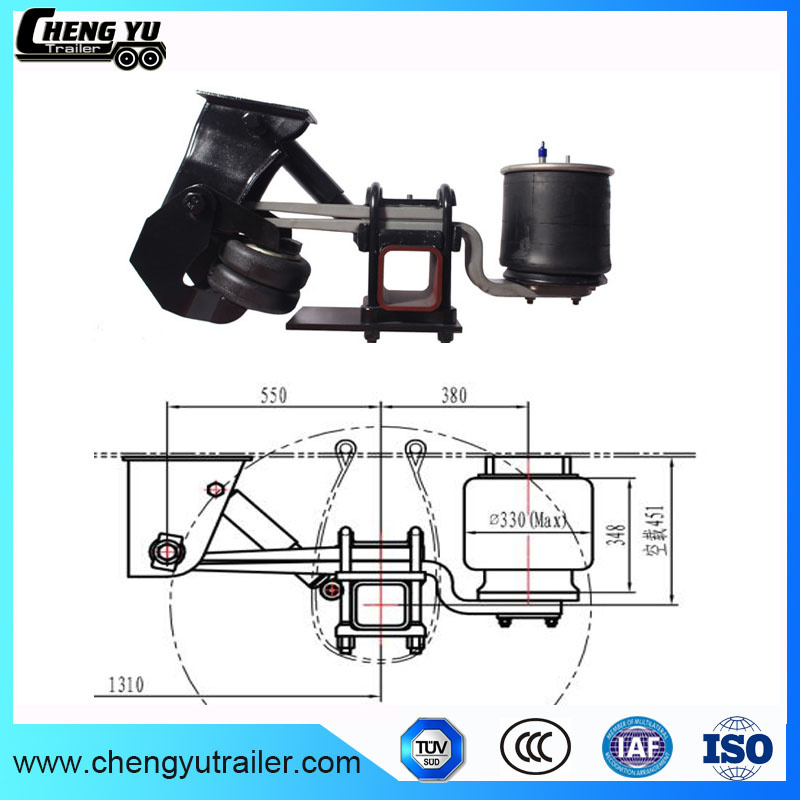

leaf spring type air suspension with lift axle for heavy duty semi trailer specificationCapacity(kg):9000-13000
Brake Series:420*200
Track length(mm):1910
Spring distence(mm):900
Axle beam(mm):square 150
Stud(mm):10-M22×1.5 ISO
P.C.D:335
Bearing:518445
Type:Outboard
Air suspension height:450
Sping center bolt distance:500/380

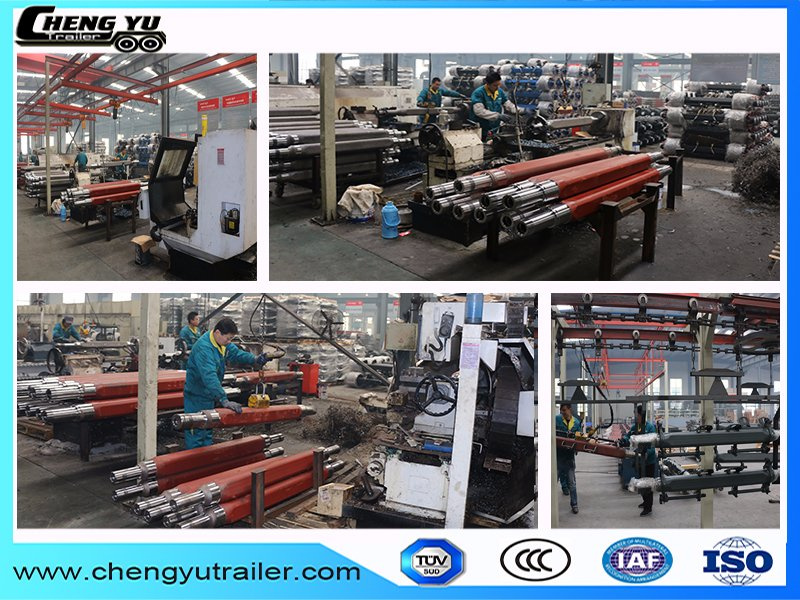

All the specifications can be designed as your requirement.Our factoryQingdao Shuibo Chengyu Import&Export Co.,Ltd Belongs To Chengyu Group Which Is One of The Biggest Manufacturers For All Kinds Of Trucks, Especially For The Semi Trailers And Parts In Shandong. Located in the famous "Water Margin" hometown -- The "China Special Vehicle Production Base" .
Chengyu Group Has More Than 500 Staffs,Including One 20 Years' Experienced Engineering Technicians Team. With An Annual Output Production Capacity Of 20,000 Sets Of Special Purpose Vehicles, 100,000 Pieces of Semi Trailer Axles,50,000 Sets Suspensions.
Our service:1. OEM Manufacturing welcome: Product, Package...
2. Sample order accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sales service.
5.We will track the products for you once every two days, until you get the products.
6.When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

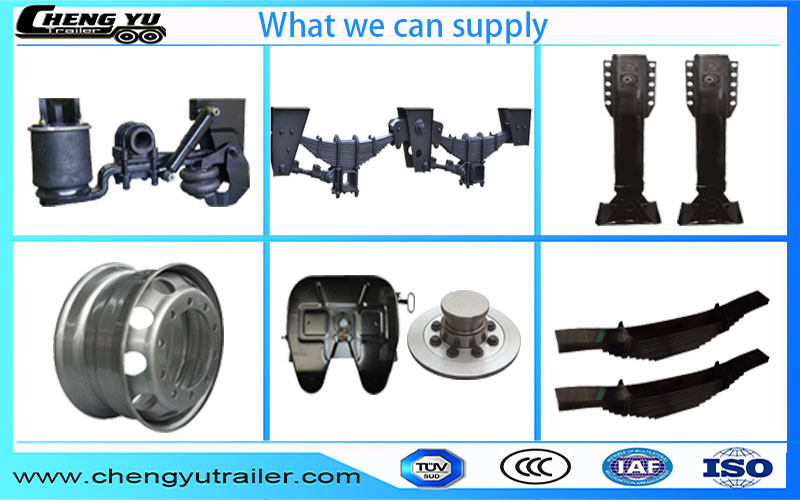

There are also more other semi trailer spare parts for your choice,please send us inquiry.Welcome to contact us:Website:http://www.chengyutrailer.com
Tel:86-532-86984246
Fax:86-532-86984246
Mobile:86-13780604743
Address:No.216 Changjiang Road,Qingdao,China FAQQ1. What is your terms of packing?

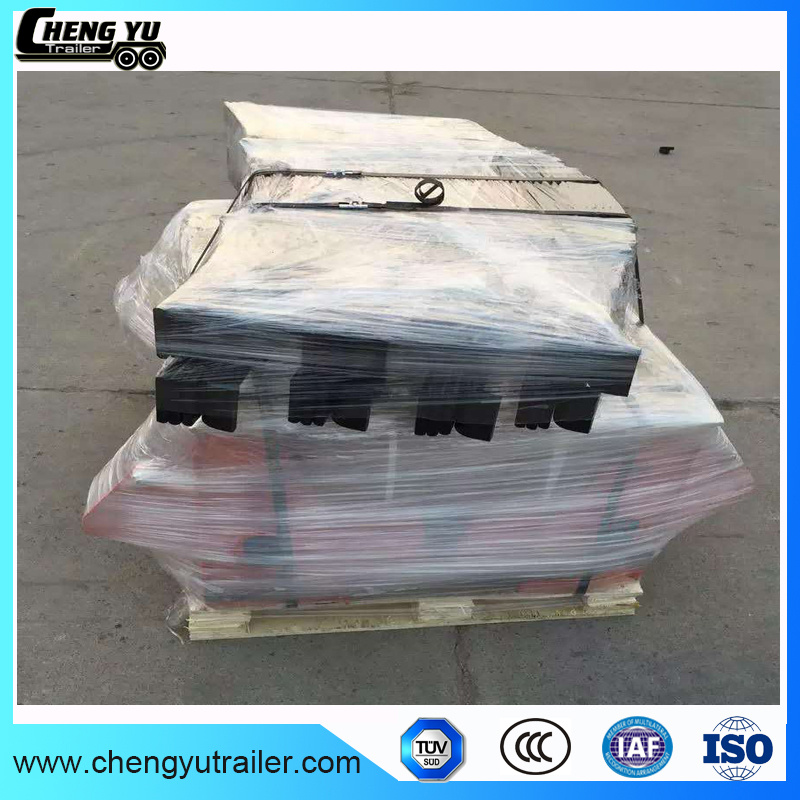

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
| Load Capacity(Kg): |
9000-13000 |
| Center Spring: |
500/380 |
| Track Length(mm): |
1940 |
| Axle Beam(mm): |
Square 150*14 |
| Brake Series(mm): |
420*200 |
| Spring Distence(mm): |
900 |
| Stud(mm): |
10-M22-1.5 ISO |
| P.C.D: |
285.75 |
| Recommend Wheel: |
Dual Wheel 8.25-22.5 |
| Air Suspension: |
Lifted |
Chengyu Trailer belongs to Chengyu Group which is one of the biggest manufacturers for all kinds of trucks, especially for the semi trailers and parts in shandong. Located in the famous "Water Margin" hometown -- The "China Special Vehicle Production Base". Chengyu Group has more than 500 Staffs, including one 20 Years' experienced engineering technicians team. With an annual output production capacity of 20, 000 sets of special purpose vehicles, 100, 000 pieces of semi trailer axles 50, 000 sets suspensions.
Our leading products include "Chengyu" brand semi trailer, fuel tanker, particle material tank trailer, bulk cement tanker, concrete mixer and pump truck and other special vehicles. "Chengyu" brand axle, air Suspension, landing gear and other parts are also popular used by all over the world customers.

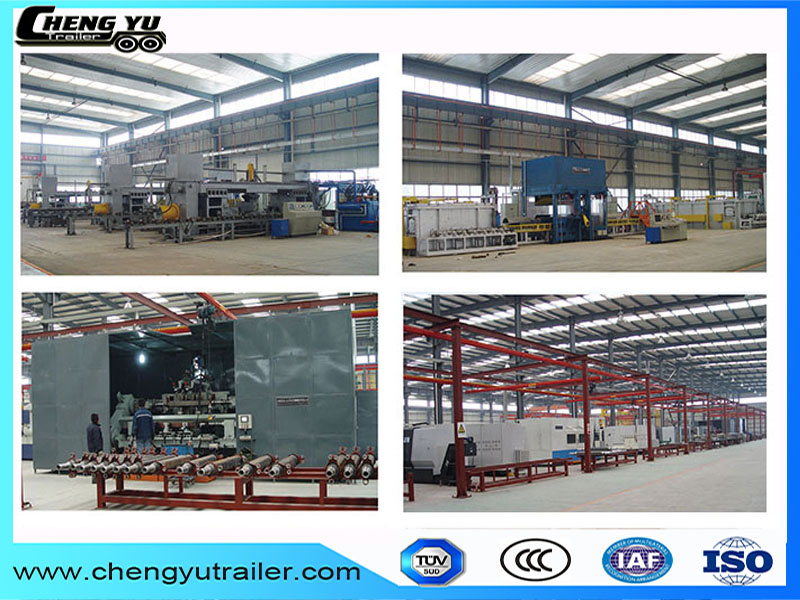

Chengyu relies on the world first-class production line, professional R&D, technical team and skilled workers has won the IS09001: 2000, ISO/TS16949: 2009 and won the title of Brand-Name Products In Shandong Province; USA DOT and Europe EMARK Certificates.
As a leader of China special vehicle industry, Chengyu got the recognition and support by vast number customers and friends during the past 20 years development, Chengyu is willing to cooperate with customers and friends all over the world to create a brilliant tomorrow.
