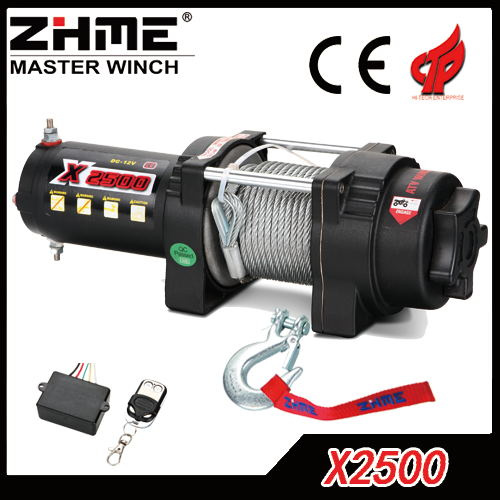

12V 2500lbs Mini Wire Rope Electric Winch for ATV/UTV

Name: 12V 2500lbs Mini Wire Rope Electric Winch for ATV/UTV
Brand: ibuyautoparts.com
SKU: 801085885
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Characters:
1.Handle or wireless remote control
2.Permanent magnetic 1.5 hp /1.0kw,12V DC winch motor
3.Hand clutch,simple and reliable operation

Specification:

Rated line pull:	2500Lbs (1134kgs) single line
Motor:	Permanent magnetic motor 1.5 hp /1.0kw,12V DC
Gear Train:	3 stage planetary
Gear ratio:	198:1
Clutch:	Sliding Ring gear
Braking action:	Automatic in the drum
Fairlead:	Roller fairlead for wire rope
Wire rope:	4.8mm ×12m
Drum size:	50mm×76.5mm
Dimensions:	334mm×114mm×120mm
Mounting bolt pattern:	124mm×76mm
Battery:	Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)
N.W:	20 lbs (9kgs)
Packing:	440mmx250mmx220mm(1000pcs per 20' container)
Line speed and motor current (first layer)
Line pull	Lbs	0	1000	2000	2500
Line pull	Kgs	0	454	907	1134
Line speed	FPM	24.5	14.7	10.5	6.9
Line speed	MPM	7.5	4.5	3.2	2.1
Motor current	Amps	15	75	120	175
Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	2500	2000	1870	1680
Rated line pull per layer	Kgs	1134	907	849	760
Cable capacity per layer	Ft.	7.2	15.7	25.9	39
Cable capacity per layer	M	2.2	4.8	7.9	12

Prod Model:	X2500
Product Name:	Electric Winch
Rated Line Pull:	2500lbs Winch
Motor:	Permanent Magnetic1.5 HP /1.0kw,12V Dcwinch Motor
Gear Ratio:	198: 1
N.W:	20 Lbs (9kgs)
MOQ:	50 Winches
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Working Voltage Of Electric Winch:	Low Voltage
Certification:	RoHS
Electric Winch Model:	ATV/UTV Winch
Brand:	Zhme
Applicable Environment:	ATV/UTV

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
