E-Motorcycle Kit/Electric Motorcycle Conversion kit
Drive Your Motorbike up to 100mph
Convert your gasoline powered motorcycle, scooter into electric version easily!
Clean, Quiet, Efficient, Light Weight, Monstrous Powerful, and Affordable.
1.

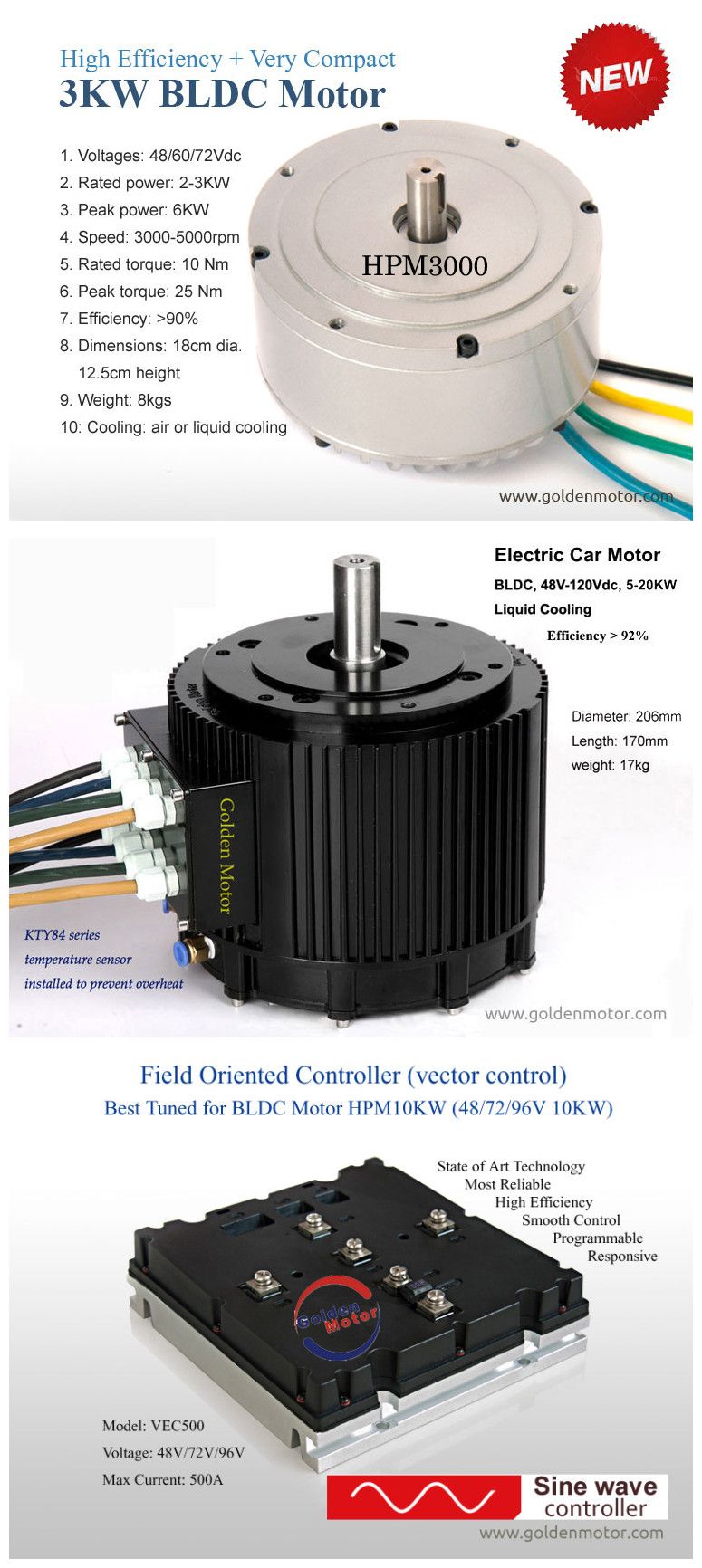

Model: HPM10KW -- High Power BLDC Motor1. Voltages: 48/72V/96v
2. Rated power: 10KW
3. Peak power: 22KW
4. Speed: 3000-6000rpm
5. Rated torque: 26Nm
6. Peak torque: 90 Nm
7. Efficiency: >90%
8. Weight: Air cooling(17kg);Liquid cooling:(17.7kg)
9. Cooling: air or liquid cooling Long working life (>20,000 hours)Low noise, high torqueExcellent performance characteristicsHigh efficiency (>90%)High reliabilityRated voltage : 48V-120 VDCRated power : 10KWRated speed: 2000-6000 rpmStepless speed control, dual-direction 1.Conversion Model:

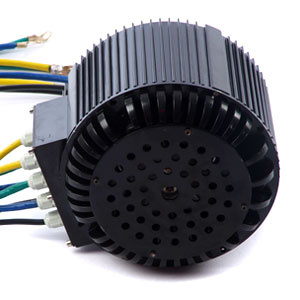

3.Here is the Picture of Kit Contents
Item | Description |

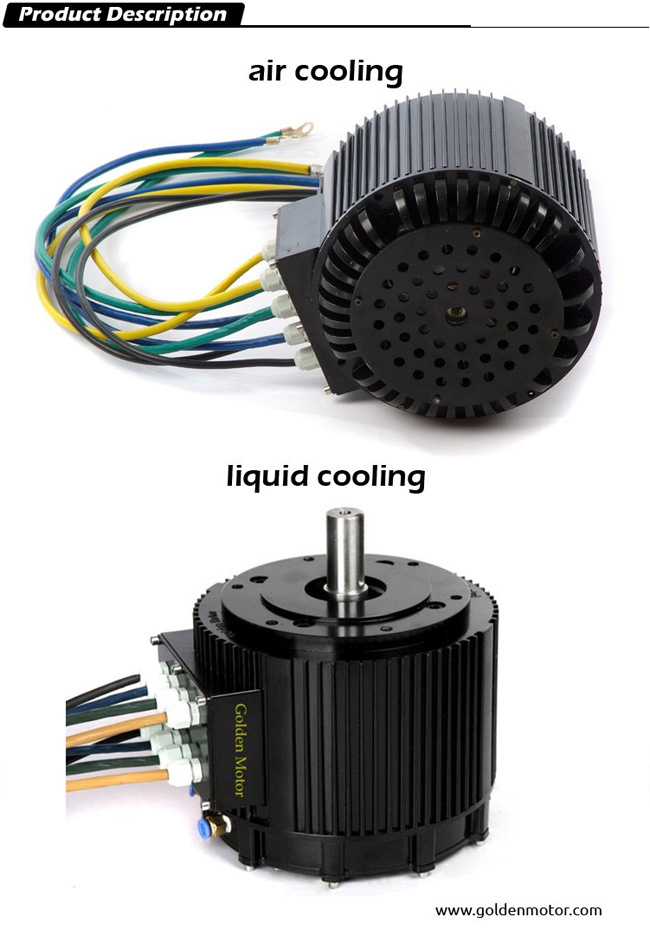

BLDC Motor (HPM10KL) Liquid Cooling | Model: HPM-10KW -- High Power BLDC Motor Voltage:48V/72V/96V/120V Rated Power:8KW-20KW Efficeincy: 91% Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v Speed: 2000-6000rpm (customizable) Weight:17Kgs Casing: AluSmartum Length (height): 170mm Diameter: 206mm |

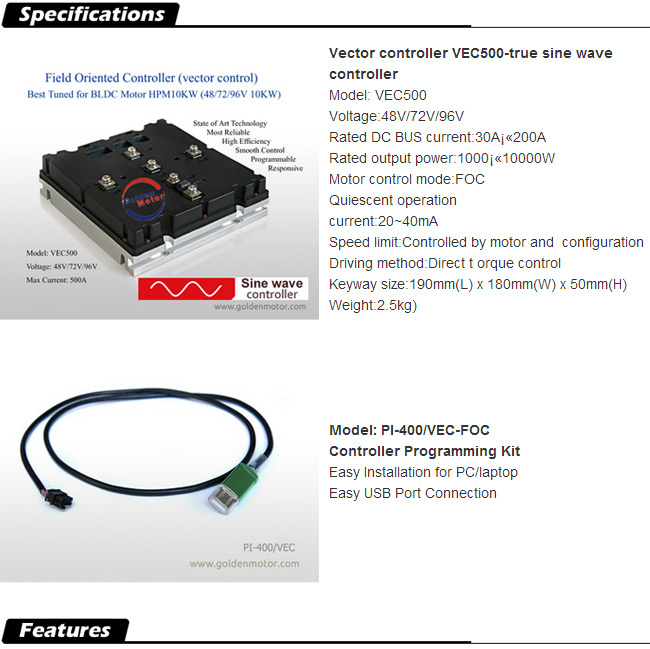

BLDC Controller (For 10KW Motor) | Type: HPC500H Series(For 10KW Motor) Voltage Range:48V/72V/96V Rated Current (Max):600A/500A/400A Weight:2.9Kgs Dimensions:192x208x77mm Features: Programmable via USB port, Fuse breaker, Regen Braking, Temperature sensoring |
Contactor | to protect the controller |
Spare Wiring Harness | Model: CA-201 -- HPC Controller Wiring Harness 23-pin Water-Resistent Connector Dynamic Montoring Connector |
Program Kit | Model: PI-400 -- HPC Controller Programming Kit Easy Installation for PC/laptop with Windows OS Easy USB Port Connection Setup Parameters without Power-on Controller Monitor Motor Performance Dynamically |
Foot Throttle | Model: FSC-010 -- Foot Throttle Output Voltage: 0-5V Material: casted aluSmartum Features: Water resistent |
| |
