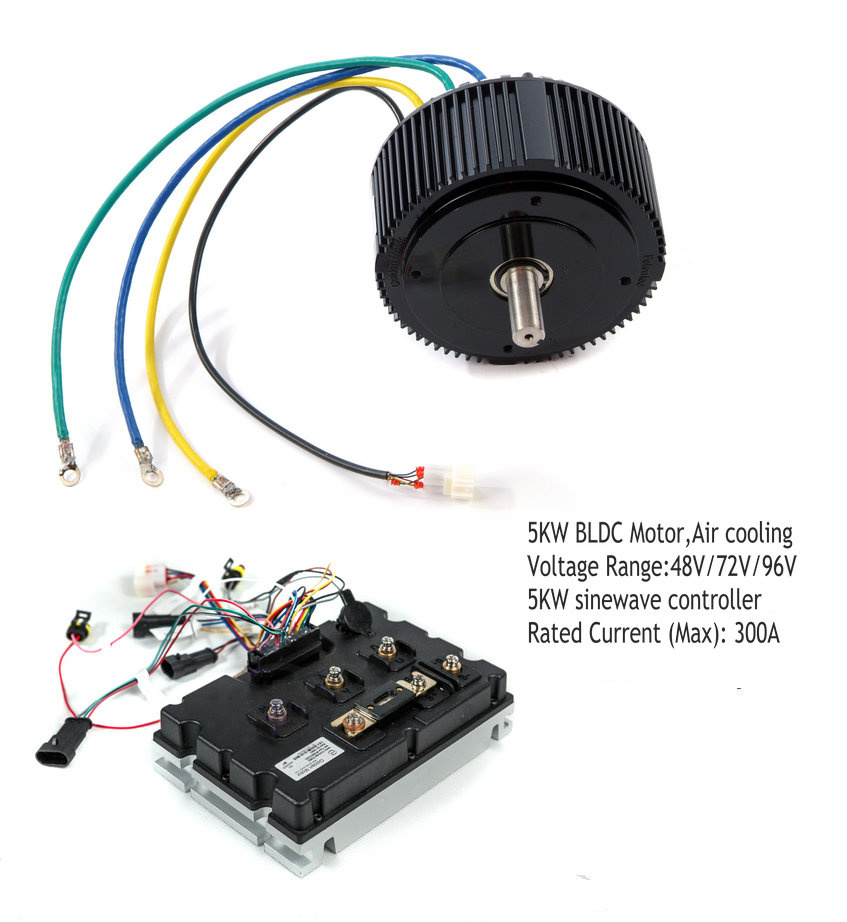

72V 5kw BLDC Motor for Electric Motorcycle
Price: |
US $ 295-446/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,D/P,Western Union,Paypal |
We are leading manufacturer of general purpose brushless dc (BLDC )motor with power range from 200W to 20KW and voltage from 24V to 120VDC .It has been widely used for many appliacations such as auto industry,Battery powered bikes,electric car,scooters.motorcycle.go carts, boat ,goftcarts etc. Product Features : -Excellent performance characteristics-High efficicency >90% -Rate Voltage 24V-120VDC -Rate Power 200W-20KW -Rate speed 2000-6000RPM -Cooling Options : fan cooled or water cooled -Temperature sensor installed : KTY84-130-Stepless speed control,dual direction

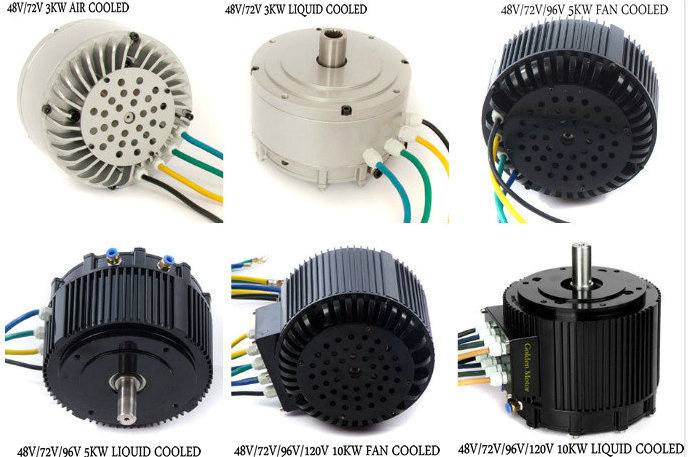

Golden Motor range as below :
Electric motorcyle controllers range :

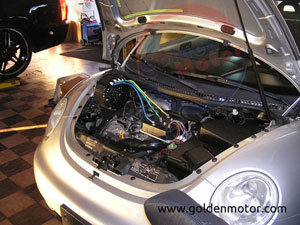

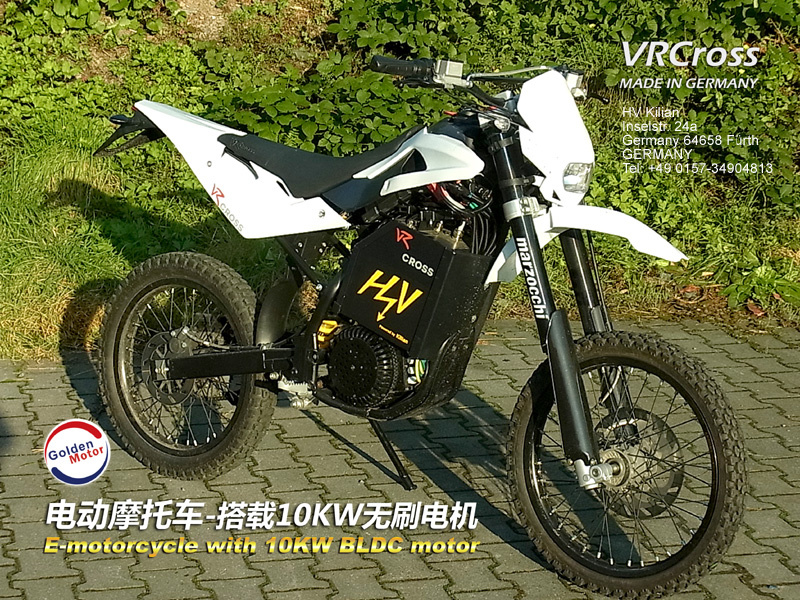

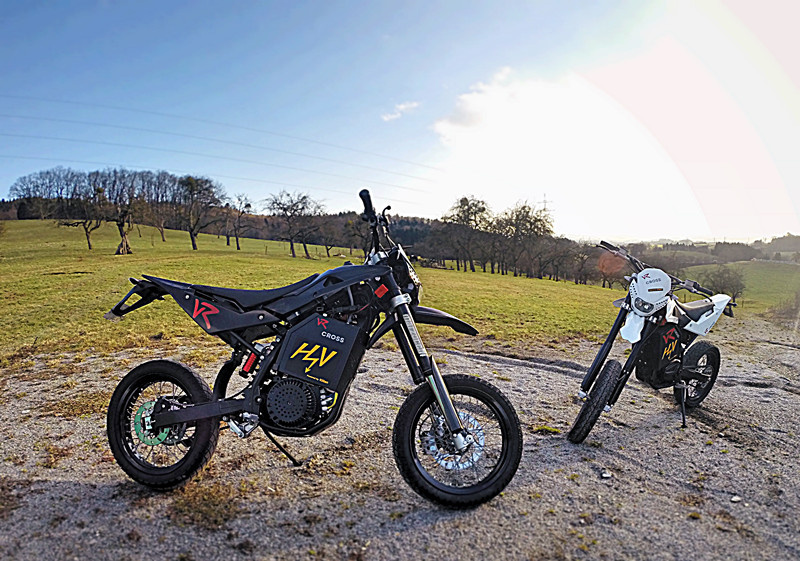

Motorcycle conversion case from clients
10KW BLDC MOTOR,48V/72V/96V FAN COOLED/WATER COOLED AVAILABLE
Voltage:48V/60V/72V Rated Power:2KW-3KW Peak Power: 6KW Efficeincy: >90% Speed: 3000-5000rpm Rated torque: 10 N.m Peak torque: 25 N.m Dimension: 18cm dia. 12.5cm height Weight: 8KG Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 48V3000W Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V3000W Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Voltage:48V/60V/72V Rated Power:2KW-3KW Peak Power: 6KW Efficeincy: >90% Speed: 3000-5000rpm Rated torque: 10 N.m Peak torque: 25 N.m Dimension: 18cm dia. 12.5cm height Weight: 8KG Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 48V3000W Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V3000W Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|

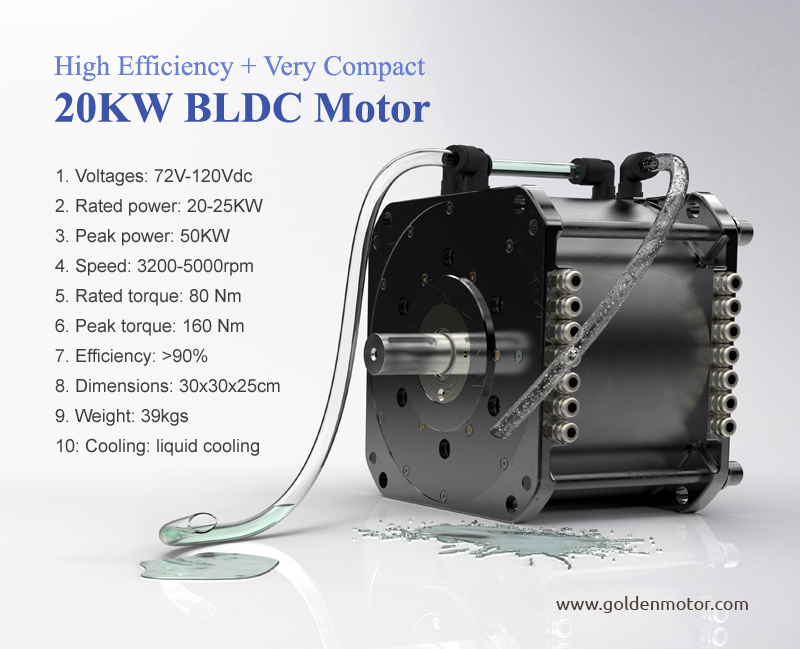

Voltage:72V-120VDC Rated Power:20KW-25KW Peak Power: 50KW Efficeincy: >90% Speed: 3200-5000rpm Rated torque: 80 N.m Peak torque: 160 N.m Dimension: 30x30x25cm Weight: 39KG Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan | Type: 72V20KW Weight: 39kgs/unit |
|
|
Type: 96V20KW Weight: 39kgs/unit |
|
|
Voltage:24V/36V/48V/72V Rated Power:3KW-7.5KW Efficeincy: 88% Speed: 2000-6000rpm (customizable) Casing: AluSmartum Length (height): 126mm Diameter: 206mm Shaft: customizable Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. | Type: 48V5000W Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V5000W Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Voltage:24V/36V/48V/72V Rated Power:3KW-7.5KW Efficeincy: 88% Speed: 2000-6000rpm (customizable) Casing: AluSmartum Length (height): 126mm Diameter: 206mm Shaft: customizable Features: Compact design,Water resistent, Stainless Steel Shaft, Liquid Cooling Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc. | Type: 48V5000W Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|
Type: 72V5000W Weight: 11.6kgs/unit Measurement:25cm*25cm*26cm/CTN |
|
|

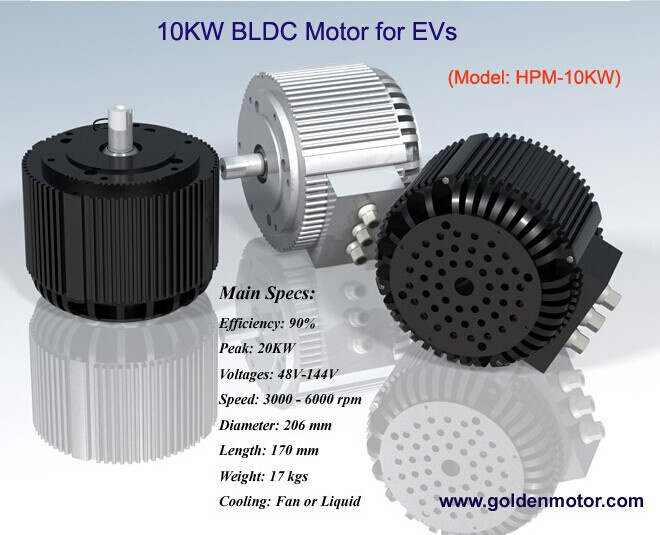

Model: HPM-10KW -- High Power BLDC Motor Voltage:48V/72V/96V/120V Rated Power:8KW-20KW Efficeincy: 91% Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v Speed: 2000-6000rpm (customizable) Weight:17Kgs Casing: AluSmartum Length (height): 170mm Diameter: 206mm | Type: 48V/10KW Weight: 17kgs/unit |
|
|
Type: 72V/10KW Weight: 17kgs/unit |
|
|
Model: HPM-10KW -- High Power BLDC Motor Voltage:48V/72V/96V/120V Rated Power:8KW-20KW Efficeincy: 91% Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120v Speed: 2000-6000rpm (customizable) Weight:17Kgs Casing: AluSmartum Length (height): 170mm Diameter: 206mm | Type: 48V/10KW Weight: 17kgs/unit |
|
|
Type: 72V/10KW Weight: 17kgs/unit |
|
|
Prod Model: |
5KW |
Voltage: |
48V, 72V, 96V |
Type: |
Motorcycle Engine Assembly |
Certification: |
CE |
Energy Transformation: |
Electric |
Thermal Machine: |
Pm |
Four Stroke Principle: |
Pm |
Golden Motor Technology Co Ltd is emerging as one stop shop for key components of personal electric vehicles(PEV), from electric bikes to electric cars. You can always find suitable solutions, parts for your EV applications from us.
With our strong R&D team, established dealer networks over 50 countries, we are confident to provide our valuable customers with top quality products and services at competitive cost.
Golden Motor is now well positioned as a solution provider of electric bikes, power wheelchairs, electric motorcycle and electric car driving system, matched controllers and accessories. By using current available materials and latest technology, our products provide high performance, feature rich and inexpensive solutions for personal electric transportation products and industrial applications.
GoldenMotor is the true leader in this personal electric transportaion industry
GoldenMotor offers a full range of products, including motors, controllers and battery packs. We also supply parts and accessories, as well as compatible replacement parts. Customers can buy complete electric bikes, power wheelchairs, highend battery packs, electric Motorcycle motors, electric Car motors, as well as their compatible controllers. With all this said, you need not look elsewhere trying to find a compatible part or accessory.
