| Prod Model: |
CRD03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2.7inch |
| Waterproof: |
Yes |
| Shock Grade: |
10g |
| Night Vision: |
Yes |
| Compression Format: |
H.264 |
| Interface: |
RCA |
| Brand: |
Brvision |
Product Description

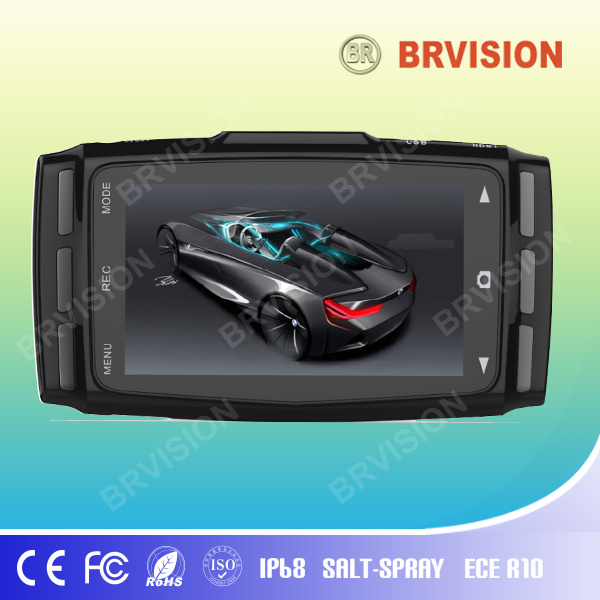

Car DVR with GPS Logger+G-Sensor, Car Black Box DVR Camera
-Compacted unit size, 135 degree wide viewing angle and high resolution lens, rotatable panel, good for
video recording, shooting in high resolution at various spots.
2.7 inch TFT LCD display.
1/3 inch CMOS 4M pixels HD sensor.
6 layers All Glass lens, focusing range: 60CM to Infinity
Video Format: H.264 (MP4)
Built in Micro phone/Speakers
Battery capacity: 3C 320Mah/3.7V Li-ion battery
Compatible with TF(SDHC) memory card up to 32GB
HDMI socket for HD diplay
Loop recording
Motion Detection
Seamless recording
Auto screen saver (wake up screen by any button on panel)
Video size for each section selectable.
Resolution: 4.0M Pixels (2688*1512)
Video Resolution: 2304*1296*30P 16:9 2560*1080*30P 21:9 1920*1080*45P 16:9 HDR
1920*1080P 30fps 16:9, 1920*1080P 30fps 16:9,1280*720 60fps 16:9,
Warning Voltage: Auto power off and save videos under 3.65V, recharge reminder, Working
Voltage: 3.7V
Recording while recharged
Auto power on and record while auto engine started.
Time-lapse powering off after disconnected with car power.
Instant Mute.
Video restore function if damaged.
G-sensor
Parking Monitor: Collision or shaking will trigger to start recording.
Lane Departure Warning System
Front Collision Warning System
GPS tracker(Optional)
| Aluminum Shell Backup Waterproof Camera |
| Image Type: 1/3 Inch Color CCD |
| Horizontal Resolution:720TV Lines |
| NTSC:976(H)×494(V) PAL:976(H)x582(V) |
| Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: 100% Waterproof IP69K Rating |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional) |
| Power supply:DC12V (from Reversing Monitor) |
| Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting) |
| Weight Approx: 179g |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
