Launch x431 pro mini Features
1. Diagnostic Tool:
A. Diagnose
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read data stream, Special functions
etc. Specially designed for Android platform with clear and user-friendly interface.
Via Bluetooth, it is simple for the for vci module to communicate with X-431
PRO MINI. Equipped with an exclusive X-431 PRO MINI protective sleeve to prevent it from being damaged.
B. One-click Update: lets you update your diagnostic software more efficiently.
C. Repair Data: provides abundant automotive handbook, repair case and wiring diagrams for reference and retrieval.
D. Remote Diagnosis: configures X-431 PRO MINI as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.
2. Browser: built-in Wi-Fi module makes surfing on the internet freely.
3. Email: allows you to send and receive emails.
4. Settings: to configure your personalized X-431 PRO MINI through it.
5. Applications: other android based applications can be customized to install or uninstall.
X-431 PRO MINI Description:
X-431 PRO MINI is a stylish Android-based vehicle trouble diagnostic tool. It inherits from LAUNCH's advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Through the simple Bluetooth communication between the VCI module and X-431 PRO MINI, it achieves full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream,Actuation Test and Special Functions.
Moreover, it supports Wi-Fi connection, which enables you surf the Internet,update the diagnostic software online and perform remote diagnosis etc, getting your job fixed faster and easier.

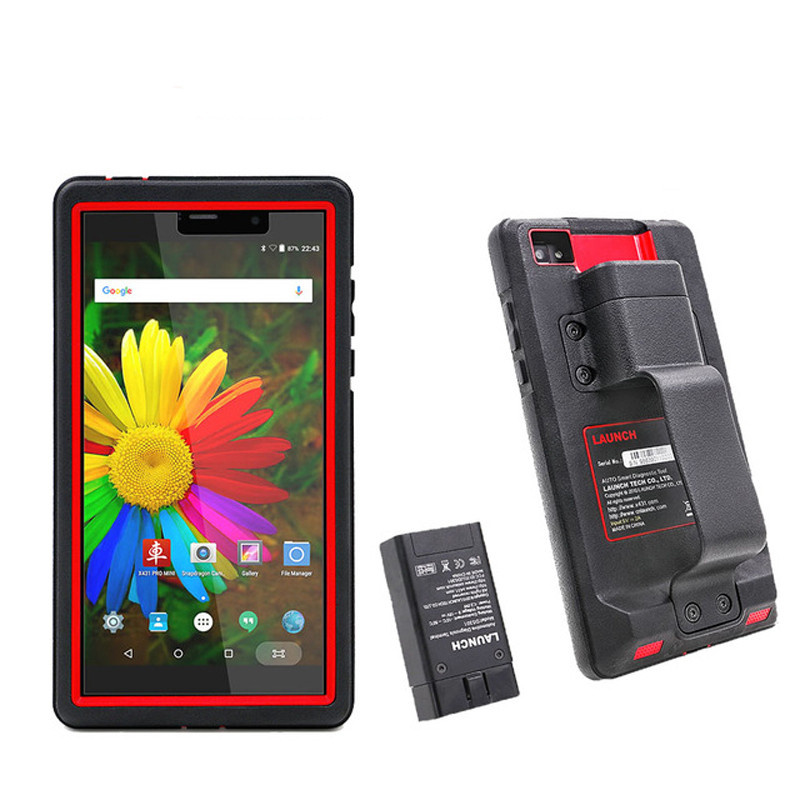

X-431 PRO MINI whole set: X-431 PRO MINI is mainly composed of an X-431 PRO MINI handset, and a DBSCar II for VCI module.

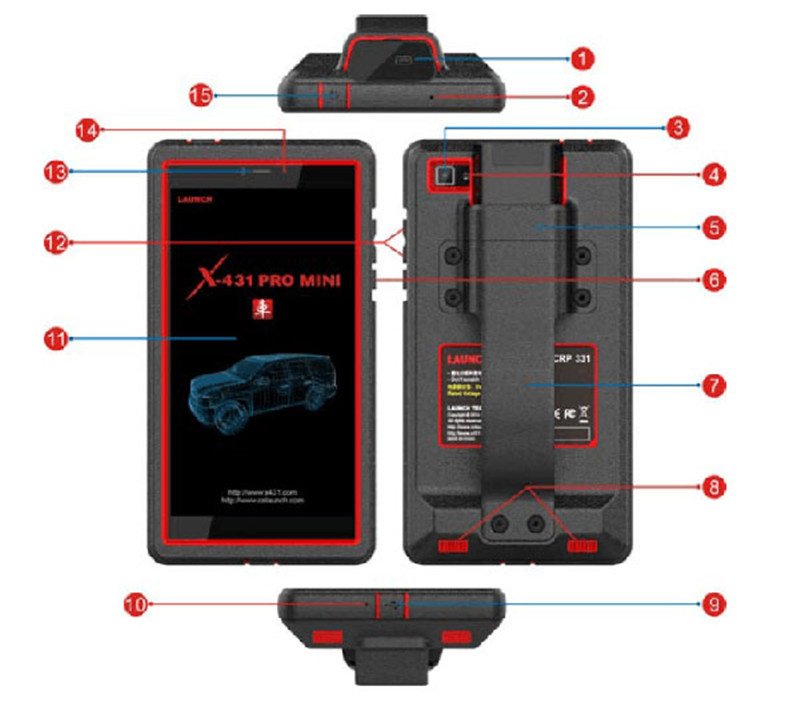

X-431 PRO MINI handset
X-431 PRO MINI:
Operating system: Android 5.1
Processor Quad core: 1.3 GHz
Memory: 2GB
Storage: 16GB
LCD screen: 6.9 inch with a resolution of 1280 x 720 pixels
Camera: Front-facing 2MP camera + rear-facing 5MP camera
Battery: 3.7V/3000mh rechargeable polymer lithium battery
Connectivity:
Wi-Fi: WLAN 802.11b/g/n
Bluetooth: Bluetooth 4.1
Working temperature: 0ºC ~ 45ºC
Storage temperature: -10ºC ~ 50ºC
for vci module:
Working voltage: 9 ~18V
Average working current: About 85mA
Standby current: About 55mA
Working temperature: -10ºC ~ 55ºC
Storage temperature: -20ºC ~ 70ºC
Relative humidity 20% ~ 90%

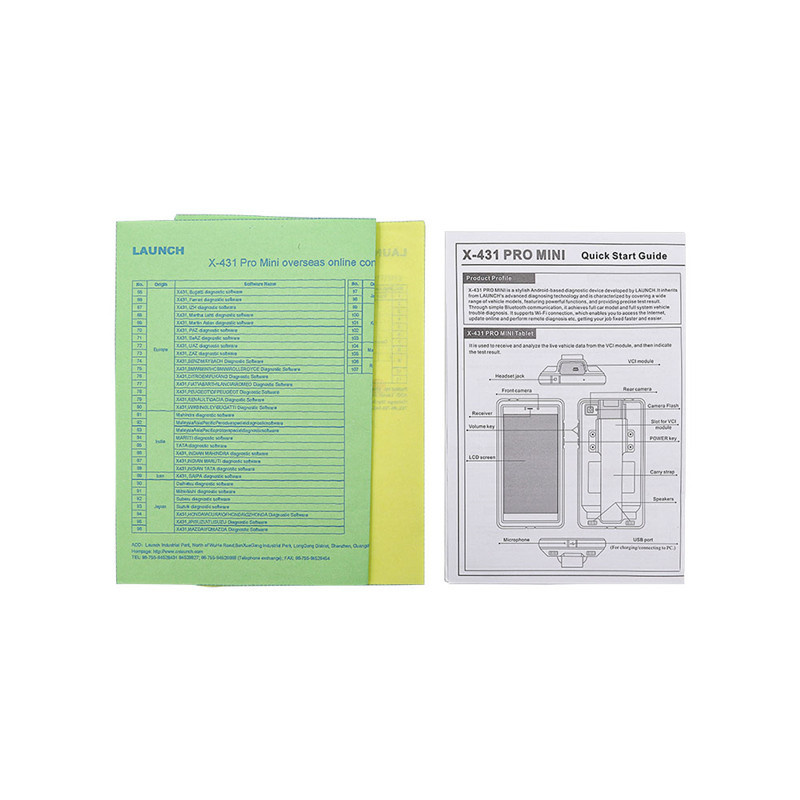

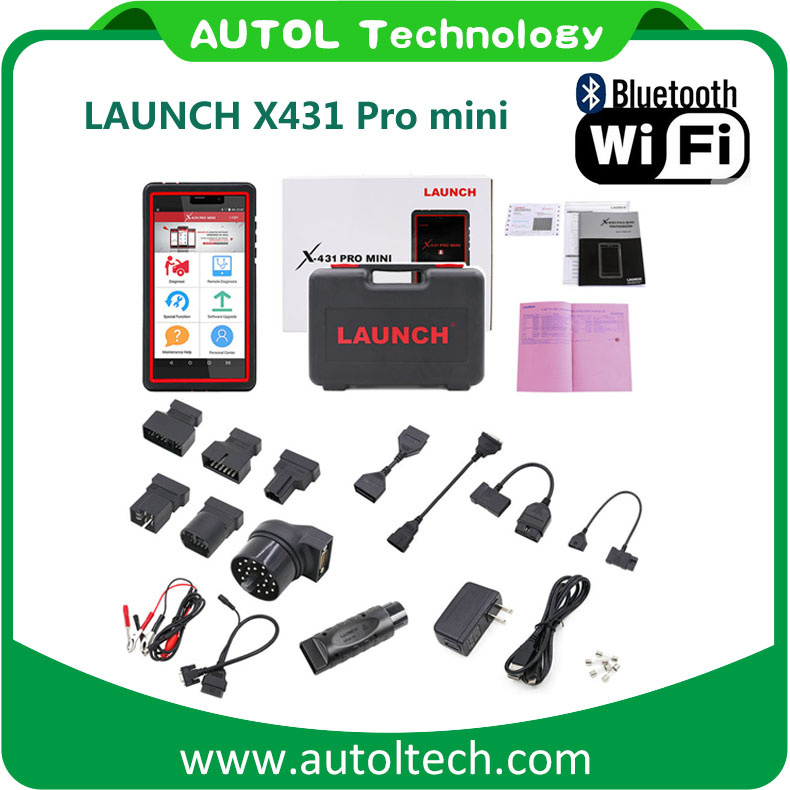

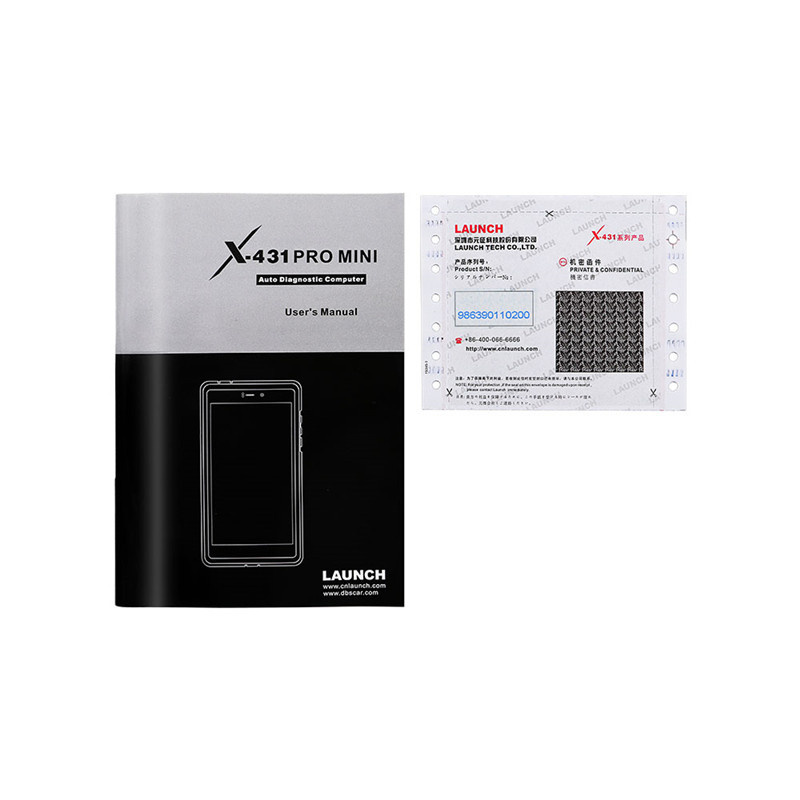

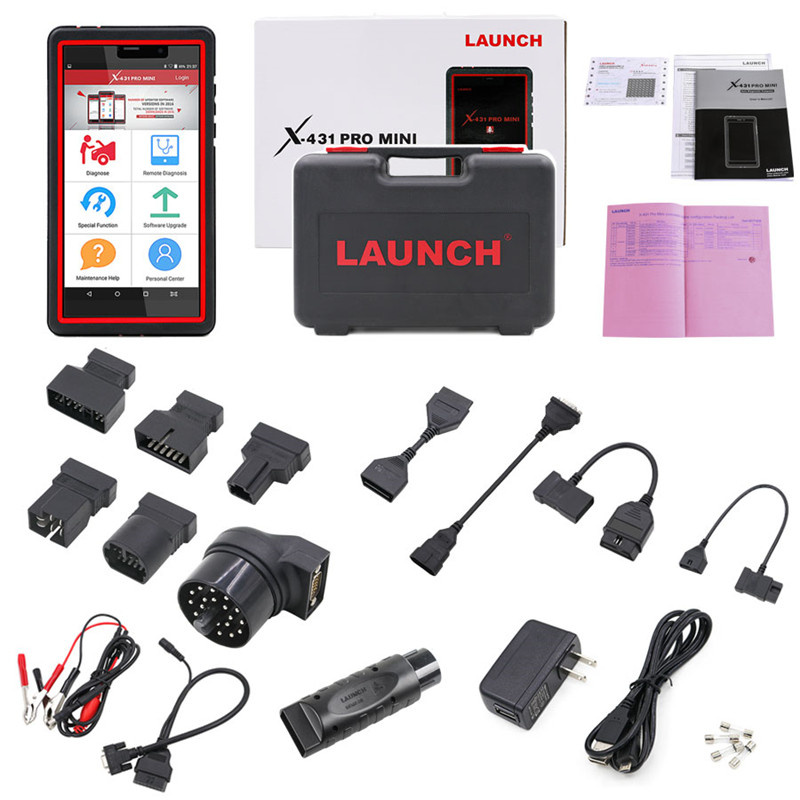

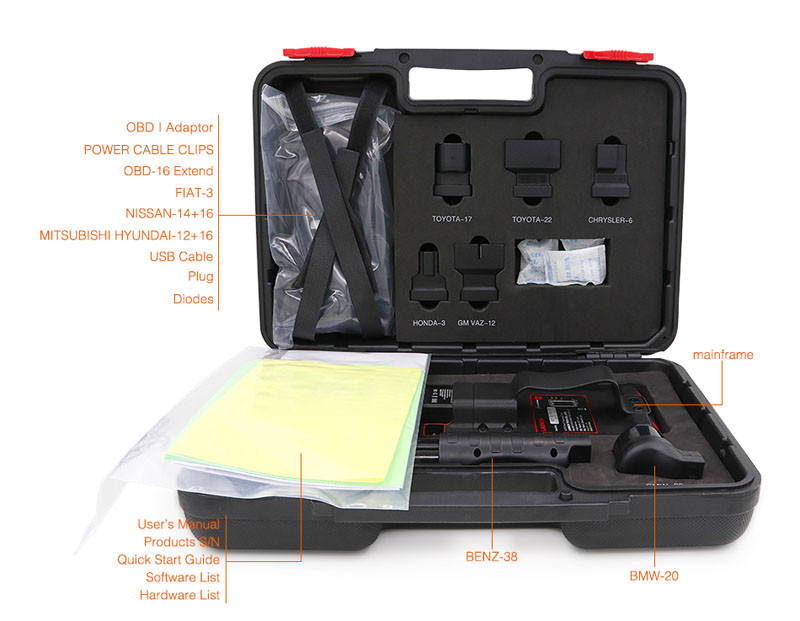

Packing list of launch x431 pro mini:
While opening X-431 PRO MINI package for the first time, please carefully check the following components. Common accessories for each X-431 PRO MINI are same, but for different destinations, the accessories of X-431 PRO MINI may vary. Please consult from the local agency or check the package list
supplied with X-431 PRO MINI together
1pc x X-431 PRO MINI tablet
1pc x Password envelope
1pc x VCI module (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x OBD I adaptor (For connecting the non-16pin diagnostic connector and the
VCI module)
1pc x Battery clamps cable
1pc x Power adaptors
1pc x Non-16pin connectors (For connecting non-OBD II vehicle)
