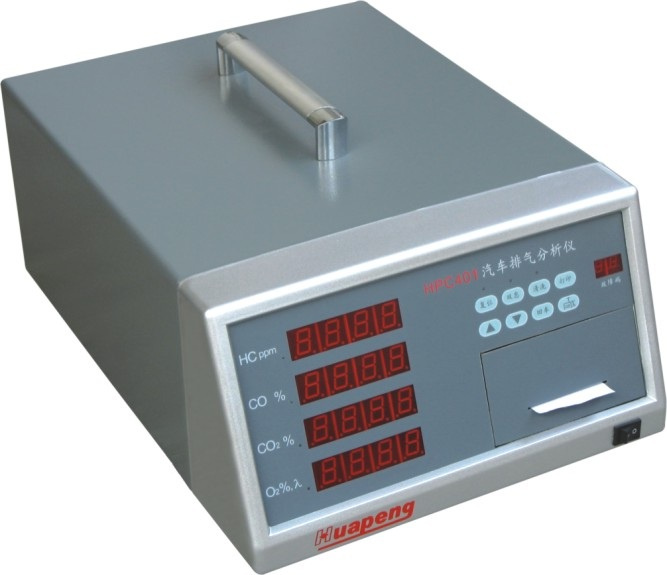

Zhzf-Hpc401 Exhaust Gas Analysers

ZHZF-HPC401 Exhaust gas analysis
Main Features:
Used to measure vehicle emissions of HC, CO, CO2 and O2 gas concentrations, automatic calculation
 shows that air-fuel ratio λ, can be the engine combustion performance and emissions of pollution in
a comprehensive test. Use of advanced foreign technology, import the key components assembled.
With a high-brightness digital display, automatic zero, linear automatic data processing, auto-alarm
when the gas line blocking, fault diagnosis where the unit automatically and print testing date, time
functions, with built-in printer (or the analog output interface or RS -232A digital serial
communication interface), can be freely idling and dual idling measure, with convenient operation,
accurate measurement data, work stable and reliable characteristics.

Main technical parameters:
Measuring range:HC: 0~10000×10-6(ppm)vol,CO: 0~10×10-2(%)vol )
                         CO2: 0~20×10-2(%)vol, O2: 0~25×10-2(%)vol
                         R.M.P: 0~9999r.m.p   OIL TEMP:0~150ºC
                         Lambda: 0.50~3.00    COcor:0~10×10-2(%)vol
Indicating   error:HC±12×10-6(ppm)vol ( absolute error ) or±5% ( relative error )
                CO±0.06×10-2(%)vol ( absolute error ) or±5% ( relative error )
                         CO2±0.5×10-2(%)vol ( absolute error ) or±5% ( relative error )
                O2±0.1×10-2(%)vol ( absolute error ) or±5% ( relative error )
Stability:moment drift≤±3%
Repeatability ≤±2%
Resolution: HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol
CO2: 0.1×10-2(%)vol, O2: 0.01×10-2(%)vol,     Lambda: 0.01
R.P.M:10r.p.m,  OIL TEMP:0.1ºC
Response time: 95% response is not more than 10 seconds
Preheating time: 8min ( preheating 3min emergency detection )
    Output mode: digital direct reading, gases can be attached printer name, in accordance with national standards
and the average concentration of the maximum value, test time, date. Can interface with computer networking.
And-use temperature: -5~50°C,  Relative humidity: ≤90%
Power:     AC100~240V 50/60Hz or DC12V( Add power inverter)
Power consumption: 40VA
Dimension:  420 (L )×310(W)×170(H)mm
Weight:     9kg
