| Prod Model: |
ZHZF-AUTO5-1 |
| Certification: |
ISO |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Exhaust Gas Analysis |
Product Description

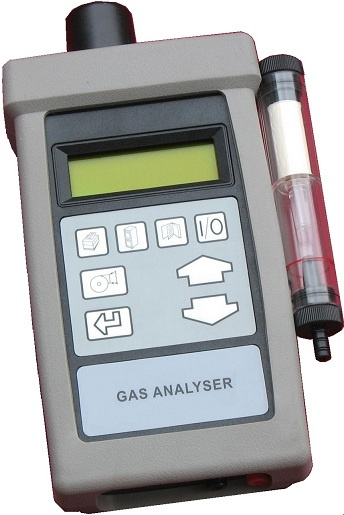

ZHZF-AUTO5-1 handheld exhaust gas analysis
brief introduction
The world's first built-in battery powered handheld exhaust gas monitor
It provides a simple, efficient and low-cost means for monitoring exhaust gas
Low power infrared sensor
• built in rechargeable batteries for 6 hours of continuous operation
The reaction time is less than 12 seconds
Storage of 250 sets of test results
A backlit display that displays all parameters at the same time
The clamp type probe can be fixed on the exhaust pipe, so as to facilitate the emission test during driving
Efficient, durable filter
Infrared remote control printing method
• 220V AC charger and 12V on-board charger
• volume 220 x 55 x 120mm weight 1kg
technical parameter
Measurement range resolution accuracy
CO >5%, +5% of excess range 20%, 0.01% readings
HC +5% 0 to 2000ppm, 10000ppm 1ppm readings in excess range
O2 0 to 21%, +5% of excess range from 0 to 25%, 0.01% readings
NO +5% readings of 0 to 5000ppm 1ppm
CO2 0 to 16%, +5% of excess range from 0 to 20%, 0.01% readings
The oil temperature is 0~150, 1, +2 centigrade
The engine speed is 200 to 4000rpm 1rpm 50rpm
Calculate LAMBDA air / fuel...... And other parameters
Communication RS232
Print KMIRP infrared remote control printer
Graphical analysis of analytical software PC
Application of environmental monitoring department
Due to the large size, heavy weight and the need of external AC power supply, it is difficult to do spot check on the road. Only a fixed detection point can be established, and it is lack of randomness and immediacy.
Due to the characteristics of the instrument, the inspection personnel can follow the vehicle anywhere on the road for vehicle sampling, not subject to the weather and other objective conditions. Testing personnel
The intensity of labour can also be improved. The rapid test of exhaust gas purification device, exhaust gas purification device must be tested under working conditions, but the current test needs
To carry out the bench test, the price of the test equipment is less than five, six hundred thousand, more than several hundred, tens of millions of dollars, to do a tail gas purification device testing, the cost is also great. Many production,
The research team was not able to test the product regularly. Because of the portable features of the instrument, the utility model can be used for the detection of the actual road running condition of the automobile
It can conveniently reflect the basic exhaust emission of automobile in different load and different road. The cost is only a one-time investment of tens of thousands of yuan instruments.
Research and application of automobile exhaust
Using the characteristics of AUTO for easy vehicle testing, researchers can easily get the basic data of automobile exhaust emission under different traffic conditions in the city, and make decisions for the government
The authorities provide reference information for urban road planning, traffic management and other government decisions
Application of automobile repair plant
The operation of the instrument is very simple, and the maintenance personnel only need a few hours of training to master it. Fully equipped functions can be used not only for exhaust gas detection, but also for automobile combustion
Inspection of system faults provides quick and reliable reference for tail gas regulation.
Reference calibration applications for other field instruments
As a result of the portable features of the instrument, the management personnel can carry the instruments which have just been calibrated in the laboratory, such as the annual inspection factory, the repair factory and the exhaust gas treatment plant
Operating conditions of the instrument in progress
Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
