Zhuhai Fostar Machinery and Equipment Co., Ltd. >> Zhzf-Hpc201 Exhaust Gas Analysis

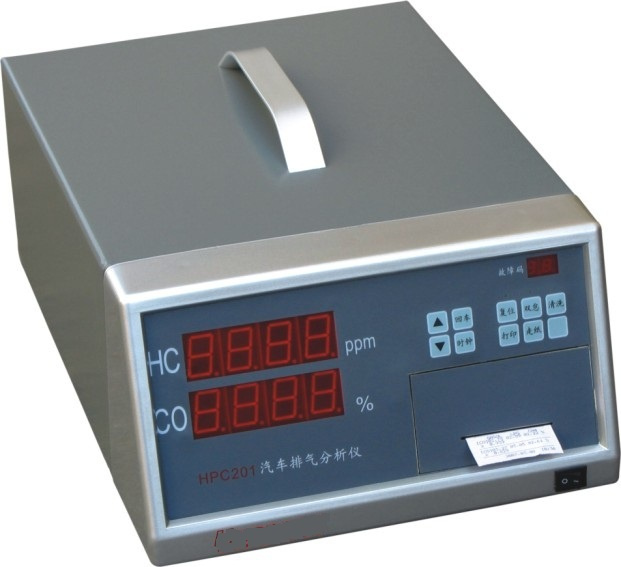

Zhzf-Hpc201 Exhaust Gas Analysis

Zhzf-Hpc201 Exhaust Gas Analysis
Price: US $ 1200/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: ZHZF-HPC201
Certification: ISO
Update Method: by Internet
Testing Equipment Type: Exhaust Gas Analysis

Product Description

ZHZY-HPC201 Exhaust gas analysis
Main technical parameters:
Measuring range:HC: 0~10000×10-6(ppm)vol
              CO: 0~10×10-2(%)vol )
Indicating error: HC±12×10-6 (ppm)vol( absolute error ) or±5% ( relative error )
         CO±0.06×10-2(%)vol ( absolute error ) or±5% ( relative error )
Stability:moment drift≤±3%
Repeatability ≤±2%
Resolution: HC:1×10-6(ppm)vol
          CO: 0.01×10-2(%)vol
Response time: 95% response is not more than 10 seconds
Preheating time: 8min ( preheating 3min emergency detection )
Output mode: digital direct reading, gases can be attached printer name, the maximum concentration,
average value, minimum value, test time, date. Can interface with computer networking
And-use temperature: -5~50°C,  Relative humidity: ≤90%
Power:     AC100~240V 50/60Hz or DC12V( Add power inverter)
Power consumption: 40VA
Dimension:      420 (L )×310(W)×170(H)mm
Weight:         9kg

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
