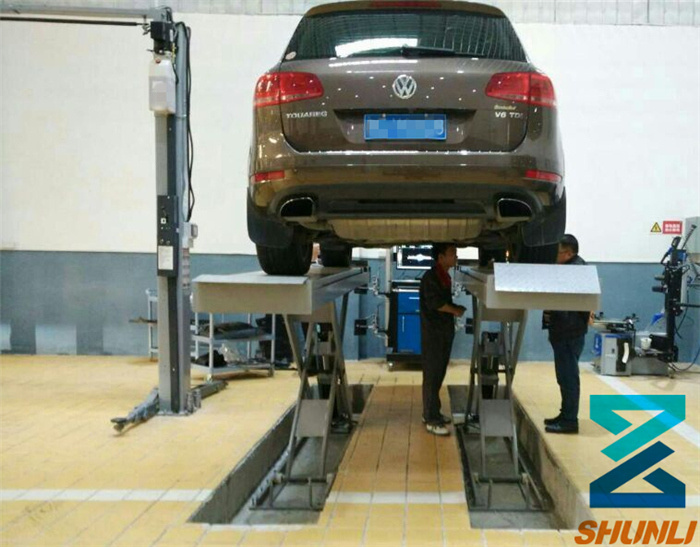

with Trolley Scissor Lift for 4 Wheel Alignment (SHL-Y-J-65X)
| Price: |
US $ 6880/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specification1.Oil cylinder built-in explosion-proof device;2.Adjustable the width of sub lifting platform;3.Mechanical safety locking with features of automatic engagement and pneumatic release;
4.Unique conjoined X structure. Solid steel plate made of high precision numerical control design, overcome steel pipe rigidity. Not easy to rust, more reasonable and secure;
5.Super precision alignment scissor lift, double hidden design small space;
6.Automatically open the pneumatic rack insurance device when the lift down, super durable slide block;
7.Mechanical safety, double Hydraulic System pneumatic safety lock release system
8.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable
9.24V safety control circuit. Easy operation the electric control cabinet.
Technical parameter | Model | SHL-Y-J-40X | SHL-Y-J-45X | SHL-Y-J-55X | SHL-Y-J-65X |
| Lifting Capacity | 4000kg | 4500kg | 5500kg | 6500kg |
| Host Lifting Height | 1850mm | 1850mm | 1950mm | 1950mm |
| The Host Platform Length | 4500mm | 4500mm | 4800mm | 5200mm |
| The Host Platform Width | 610mm | 610mm | 670mm | 670mm |
| Second Jack Lifting Height | 450mm | 450mm | 450mm | 450mm |
| Motor | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
| Power | 220V, 380V | 220V, 380V | 220V, 380V | 220V, 380V |
| Air Pressure | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa | 0.4-0.6mpa |

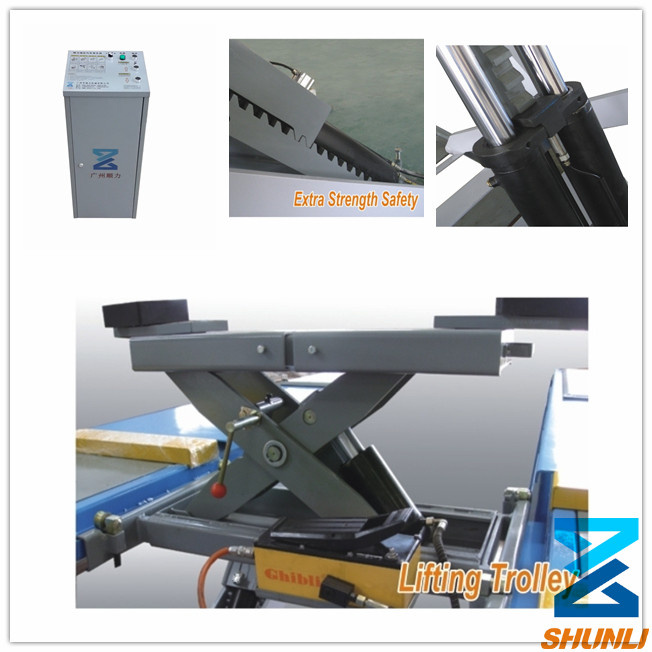

Product Details

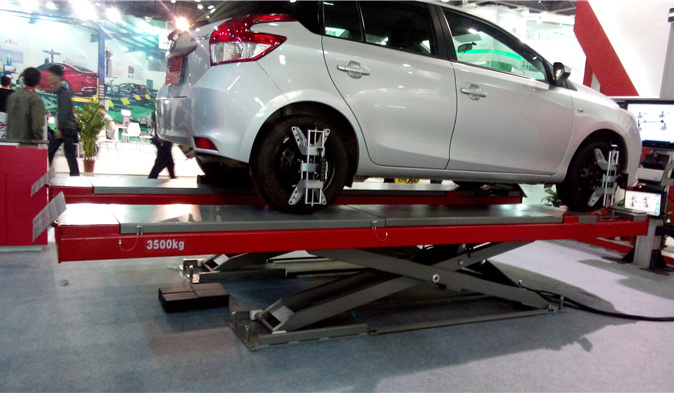

In the Exhibition

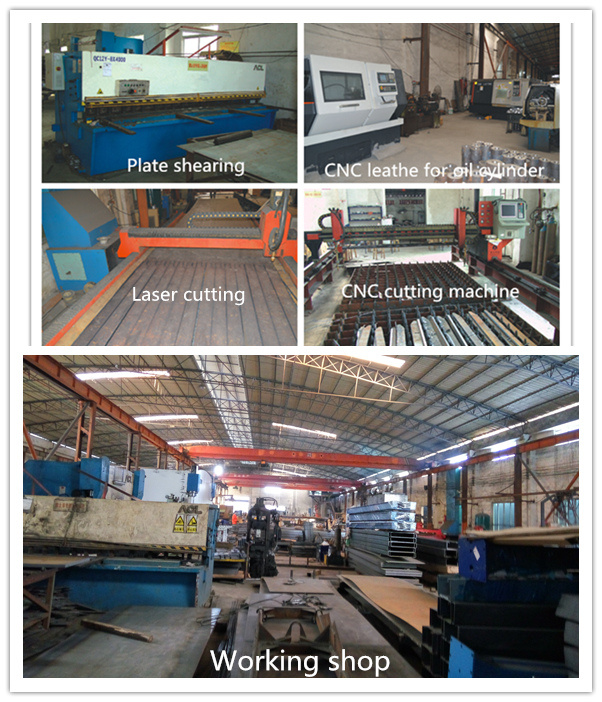

Our Factory
| Prod Model: |
SHL-Y-J-65X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
2.2kw |
| Lifting Height (Main Machine): |
1950mm |
| Main Lifting Capacity: |
6500kg |
| Second Lifting Capacity: |
6500kg |
| Certification: |
ISO |
| Design: |
Scissor |
| Type: |
Three Cylinder Hydraulic Lift |
| Lifting Capacity: |
6500kg |
| Brand: |
Shunli |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
