Product Specification1. Two kinds of installation. Dig the pit or directly installation on the ground.
2. Oil cylinder built-in explosion-proof device.
3. Ultra-thin type structure, When it close the thickness only 205 mm, can be installed directly on the ground.
4. Scissor lift is designed to maximize your workshop and make easier to work all around being serviced vehicle without obstacles.
5. Super precision wheel alignment scissor lift, can double hidden design small space
Long side slide plate.
6. Stretch secondary lifting panel, suitable for different wheelbase models.
7. Automatically open the pneumatic rack insurance device when the lift down, super durable slide block.
8. Double hydraulic system, hydraulic and mechanical lock triple insurance device, machine double-stage pneumatic insurance device, suitable for different height requirements.
9. Main hydraulic parts imported from Japan, Germany, high-quality, stable, safe and reliable.
10. Step by step operation and installation manual shipped with each unit.
Technical Parameter

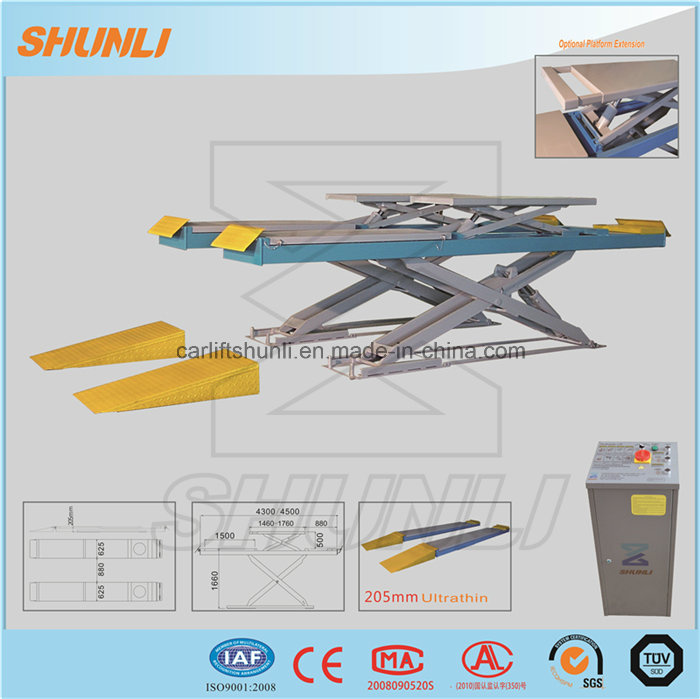

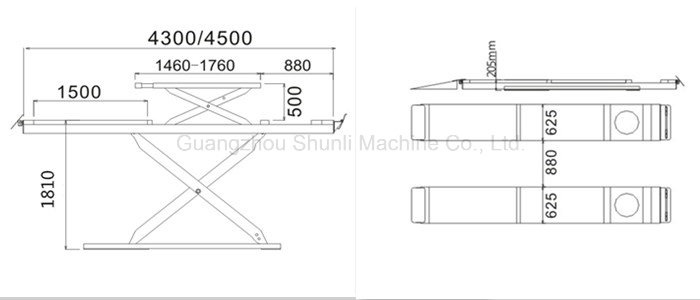

CE Certified Hot Sale car scissor lift for wheel aligner| Model | SHL-Y-J-35CBL |
| Lifting capacity: | 3500kg |
| Host lift lifting height: | 1810mm |
| Host lift platform length | 4300-4500mm |
| Host lift platform width: | 610mm |
| Second jack lifting Capacity | 3500kg |
| Second jack lifting height | 500mm |
| Second jack lifting length | 1540-1750mm |
| Second jack lifting width | 570mm |
| Motor | 2.2kw |
| Power | 220V, 380V |
| Air pressure | 0.4-0.6Mpa |
Product Detail Showing
Our Service
With oversea customersWith advanced technology and prompt service, we build long business with world customers, such as Franch , USA,Poland, Romania, Russia, Australia, New Zealand, Canada, Panama, Ecuador, Peru, Chile, Algeria, Kenya, South Africa, Zimbabwe, Philippines, Indonesia, Kazakhstan, Mongolia, Egypt, etc.
Certification:
Out Advantage:1) Factory direct sales. Good price and fast service.
Not need to pay for the third company, make the order with us, than send the product to you directly. If your
product have any question, try to find us, we will give you answer directly.

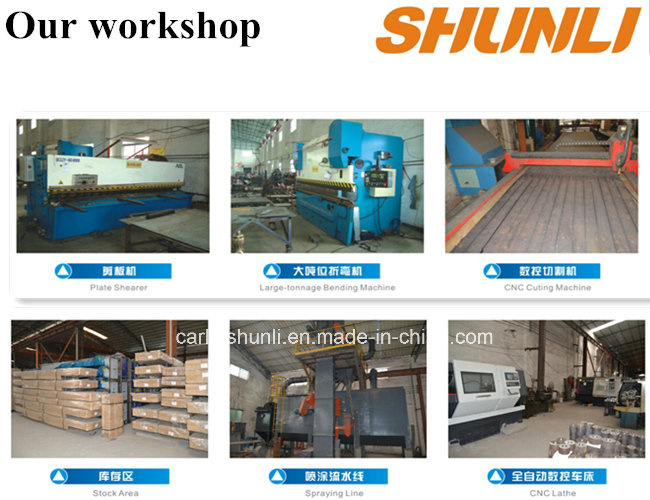

2) Advantage of equipment make sure good quality product.
500T CNC lathe, 200M painting and baking line, Robot welder machine and Import seal material
3) Good package of product. Each product have more than three layer package
4) 24 months warranty. Long time after sale service.
5) Solid steel X structure material. More stronger than tube steel
6) We have SGS certification.
7) We have 3.0T /4.5T /5T scissor lift have CE certification. 4T/5T post car lift have CE certification
8) We can produce 105mm thin scissor lift.
9) We can according customer's design to make the special car lift to you.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, each product we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Welcome to contact us for more detail information.
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
