1. INFORMATION

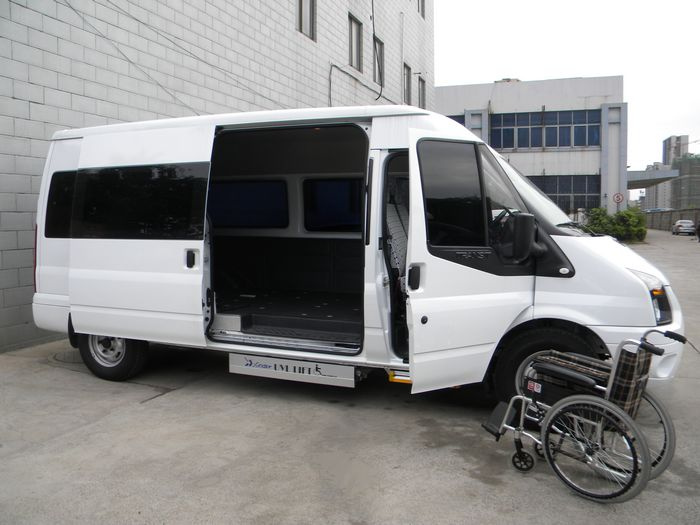

WL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
WL-UVL-700 wheelchair lift for bus platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down. Handicap wheel chair lift uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline.
2. ADVANTAGES
Electric outboard rollstop and automatic inboard rollstop
Super thin compact design
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system
3. MAIN DIMENSIONS
Model |
WL-UVL-700 |
WL-UVL-700-S |
WL-UVL-700(II) |
Platform size |
751*1220 |
751*1220 |
751*1220 |
Max. up stroke |
505 |
505 |
430 |
Max. down stroke |
500 |
500 |
540 |
Length required to install lift |
1940 |
1812 |
1867 |
Height of lift rear end |
133 |
133 |
133 |
Height of lift front end |
167 |
167 |
167 |
Distance between guide frame and up fitting surface |
53 |
53 |
53 |
Distance between front fitting surface and spindle of main arm |
347 |
75 |
145 |
Installation position |
for the bus with three steps; installed in step |
for the bus with two steps; installed under chassis |
for coach or tourist bus; installed in the luggage |
4. TECHNICAL SPECIFICATION
Model |
Voltage |
Motor power |
Pressure |
Cylinder diameter&stroke |
UVL-700 |
12V/24V |
0.8Kw |
2500Psi |
Φ60X70
unidirectional operation |
Max lifting load |
Max lifting height |
Voltage |
Len & width of platform |
350 Kg |
700mm |
12/24 V |
751*1220mm |
Raise lift platform: motor drive, hydraulic function;
Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
Raise platform manually: operate manual pump;
Lower platform manually: rotate button of manual pressure release valve with specialized tool;
Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
Model & Capacity of hydraulic oil: L-HV46
