Electric and Hydraulic Scissor Wheelchair Lift for Disabled
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

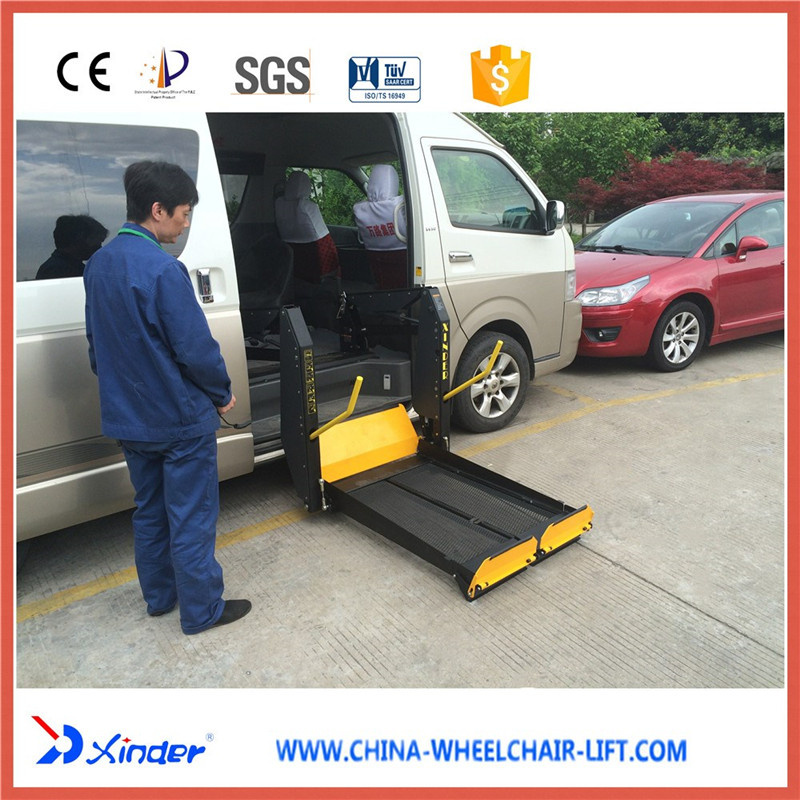

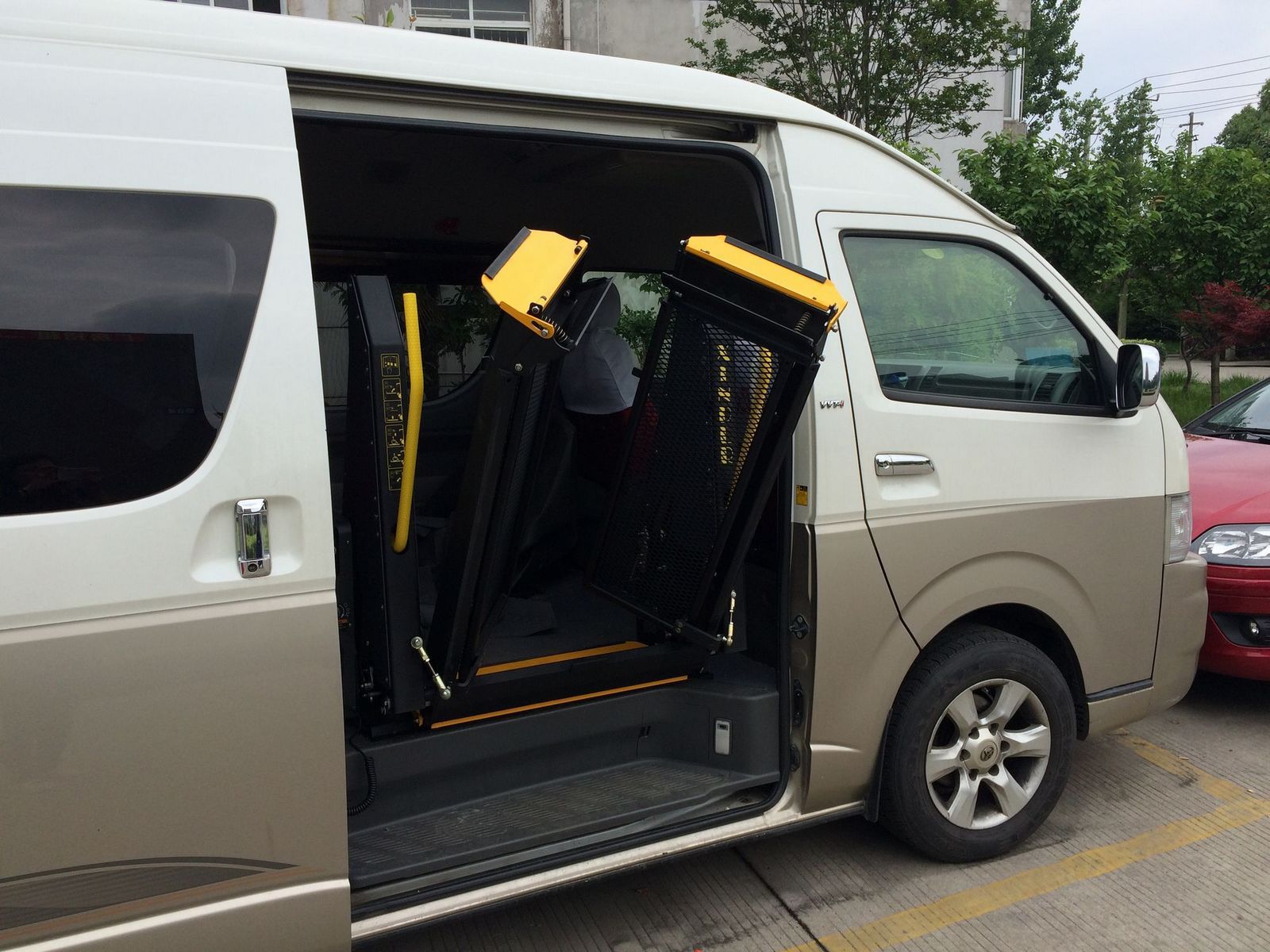

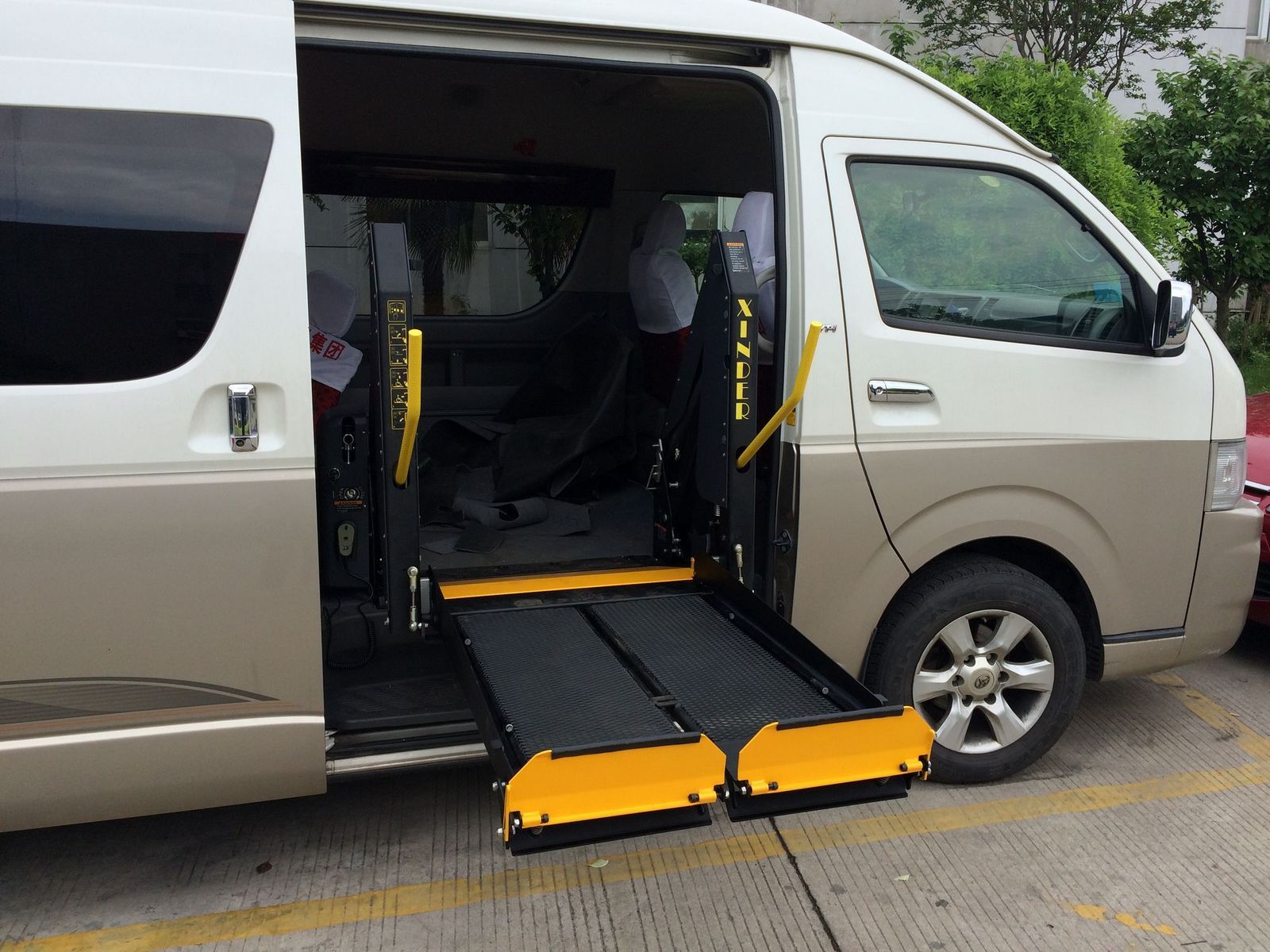

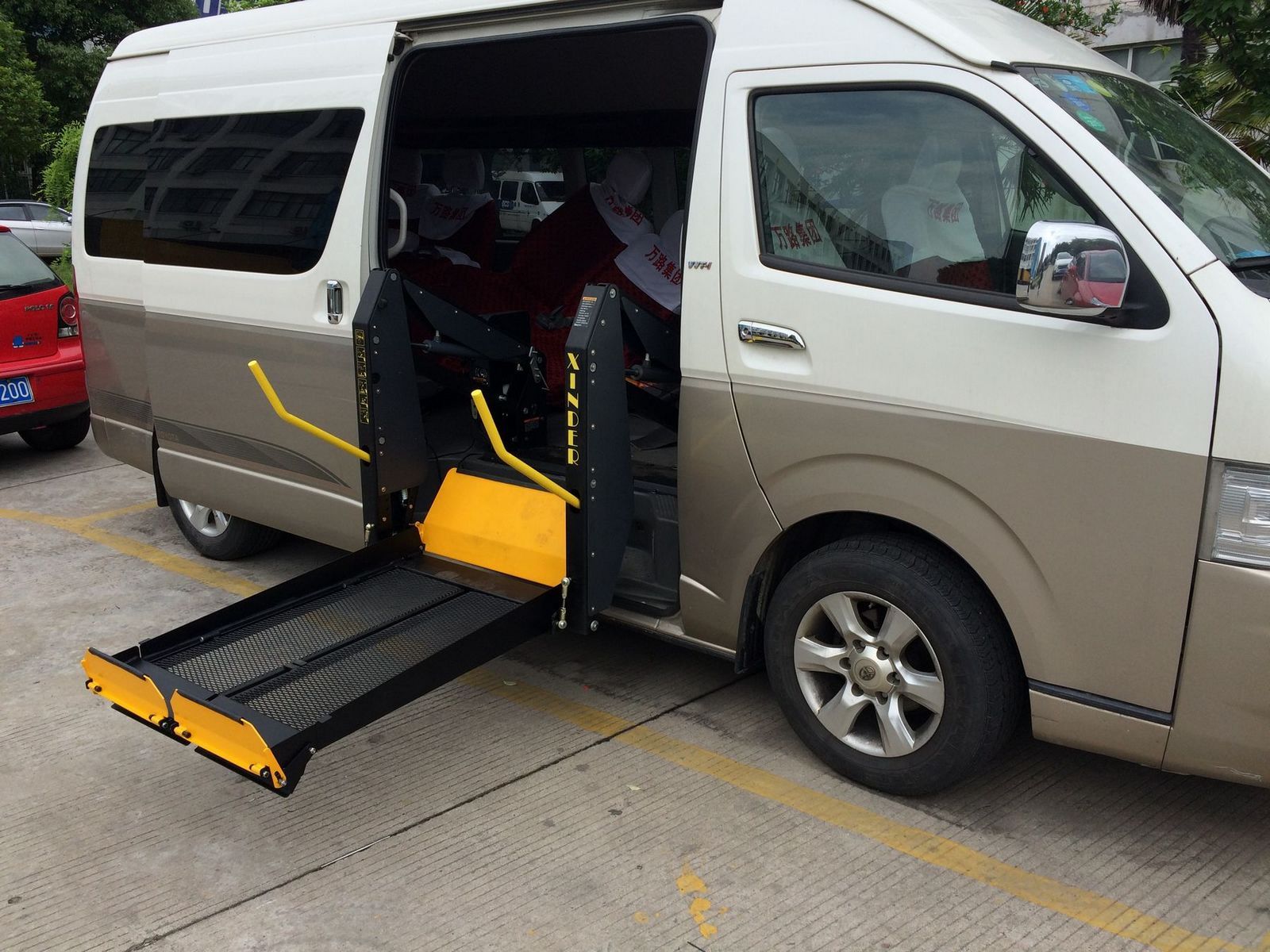

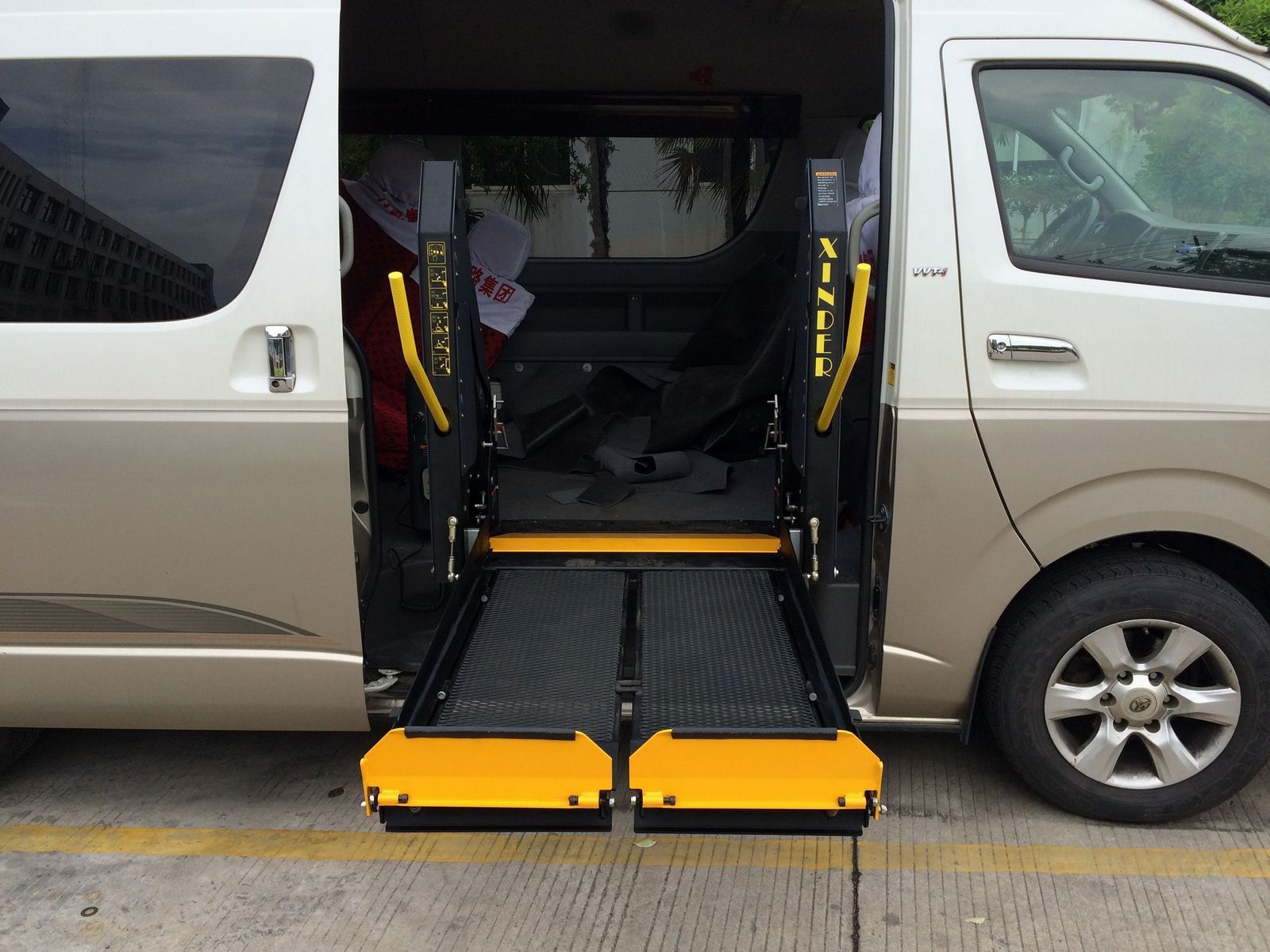

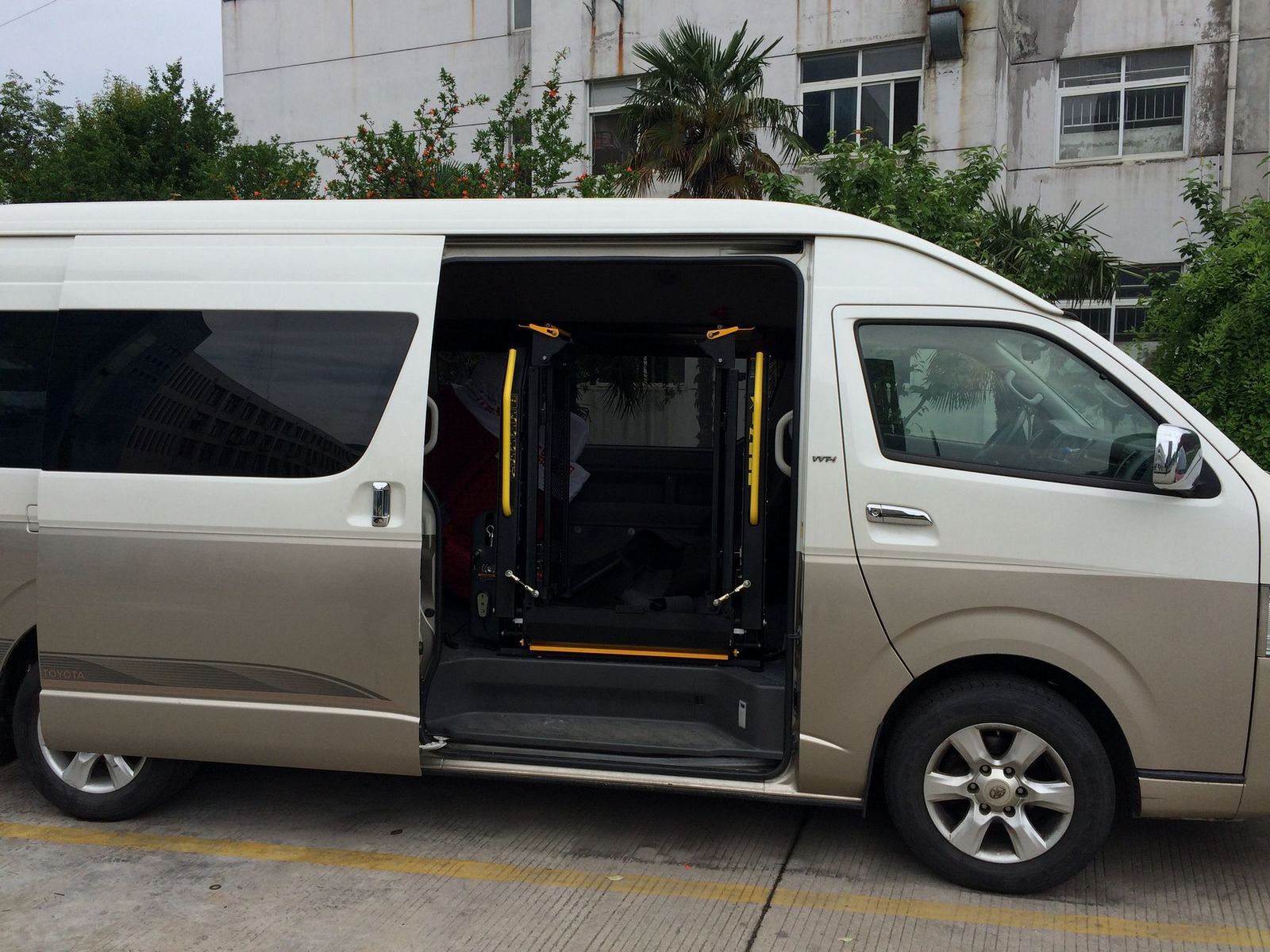

CE Chinese Manufacturer of Electric and Hydraulic Scissor Wheelchair Lift for DisabledWL-D series Dual-Arm wheelchair lift provides an easy access for the people in wheelchair to get in/out of vehicles. The platform can move smoothly, reliably and safely, whose loading capacity can be up to 350kg.There is electrical &hydraulic control system in WL-D series wheelchair lift, which can operate lift to extend, stow, lift and lower down. Lift performance is controlled by standard controller which can be wire control or remote control. Moreover, there is manual equipment for manual operation.Maintenance free bearing is used at hinged joint, so that this lift is easy to maintenance. This lift will take up little vehicle space because of the exquisite and compact design and completely steel structure.The WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.This WL-D-880 automatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift also features a strong durable steel frame built to give you years of dependable service. | Model | WL-D- 880-1150 | WL-D- 880S-1150 | WL-D- 880U-1150 | WL-D- 880-1250 | WL-D- 880S-1250 | WL-D- 880U-1250 |
| Platform Size (A×B) | 720×1150 | 720×1150 | 720×1150 | 820×1250 | 820×1250 | 820×1250 |
| Overall Width (C) | 1135 mm | 1135 mm | 1135 mm | 1235 mm | 1235 mm | 1235 mm |
| Overall Height (D) | 1225 mm | 1225 mm | 1130 mm | 1225 mm | 1225 mm | 1130 mm |
| Overall Length (E) | 440 mm | 440 mm | 500 mm | 440 mm | 440 mm | 500 mm |
| Max Lifting Height(F) | 880 mm | 880 mm | 880 mm | 880 mm | 880 mm | 880 mm |
| Rated Voltage | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V |
| Max Working Pressure | 14 MPa | 14 MPa | 14 MPa | 14 MPa | 14 MPa | 14 MPa |
| Loading Capacity | 350 Kg | 350 Kg | 350 Kg | 350 Kg | 350 Kg | 350 Kg |
| Own Weight | 135 Kg | 135 Kg | 135 Kg | 135 Kg | 135 Kg | 135 Kg |
| Prod Model: |
WL-D-880S |
| Model: |
Wl-D-880s |
| Max Lifting Height: |
880mm |
| Safety Capacity: |
350 Kg |
| Plaftform Dimension: |
1150*720/1250*820mm |
| Certificate: |
Ce |
| Volt: |
24V or 12V |
| Operation: |
Electric and Hydraulic Control |
| Own Weight: |
135kg |
| Packing Size: |
1240*600*1400mm |
| Gross Weight: |
185kg |
| Type: |
One Cylinder Hydraulic Lift |
| Certification: |
CE |
| Design: |
Single Post |
| Lifting Capacity: |
350kg |
| Brand: |
Xinder |
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
