1. Install the USB SensorLock driver:
(i) Plug in the USB SensorLock.
(ii) Go to "Computer Management"->"Device Manager

2. Install the Camera driver:
(i) Plug in the Cameras.
(ii) Same as (ii) on previous page.
(iii) You'll find two devices with "!" and have the same name. Right click one of them to choose "Update Driver Software…".
(iv) Choose "Browse my computer for driver software", and then locate it to the Folder on DVD "Camera-Drivers\drivers". Push "Next"
Do (iii) and (iv) for the other one with "!".

3. Install Cameras onto the Beam (Optional)
For those clients who buy cameras not assembled on beam, or make new camera replace old ones on beam, it is crucial to read this section carefully.
For every camera, there is an ID tag on it, like "NC121001" for example. And we will also attach a corresponding file for it online or via DVD, "NC121001.dat". Now, Let's say you're going to install two cameras onto the beam, "NC121001" on the left and "NC121002" on the right (the left side is your left-hand side when you stand in front of the camera beam facing it). You just need to copy "NC121001.dat" into the corresponding software folder, and rename it as "Camera0.dat" (0 means left). Do it also for "NC121002.dat" and rename it as "Camera1.dat" (1 means right). Then, start up the software and do the RCP calibration (see RCP calibration section).

4. Locate the Beam

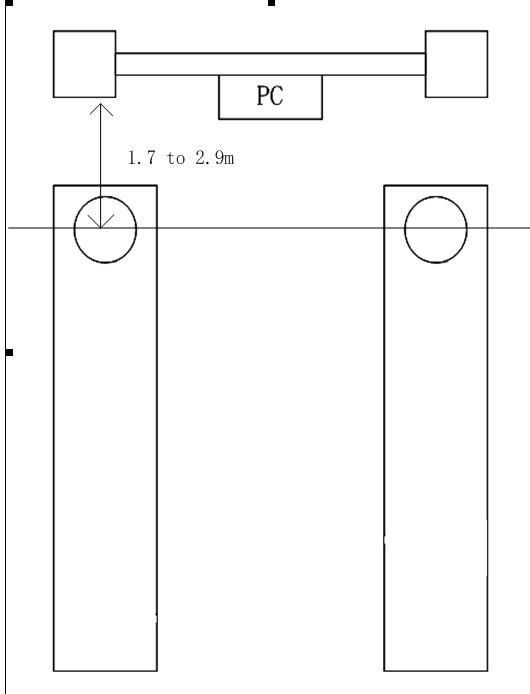

Set the beam in front of the lift, and make it parallel to the line that across both turntables' center. The distance from the camera to the line above should be 1.7 to 2.9m. The distance between two camera centers is around 2.55m. Tune the level of the beam to see all target panels (using the camera view in software) when the car is lift up.

5. Fix target boards onto clamps
Each Aligner has FOUR target boards and FOUR clamps. Please check the height of the clamps first. If they're of the same height, you can pair the target board and the clamp in any way. If two of the clamps are higher and the other two are lower, you need to fix the front target board onto the higher clamp and the rear target board onto the lower clamp.
Besides, SRD-606 offers different target boards. If they are two small and two big, the small ones should be for the front wheels and the big ones for the rear wheels. If they are in same size, the two with smaller circles are for the front wheels and the two with bigger circles are for the rear wheels.
