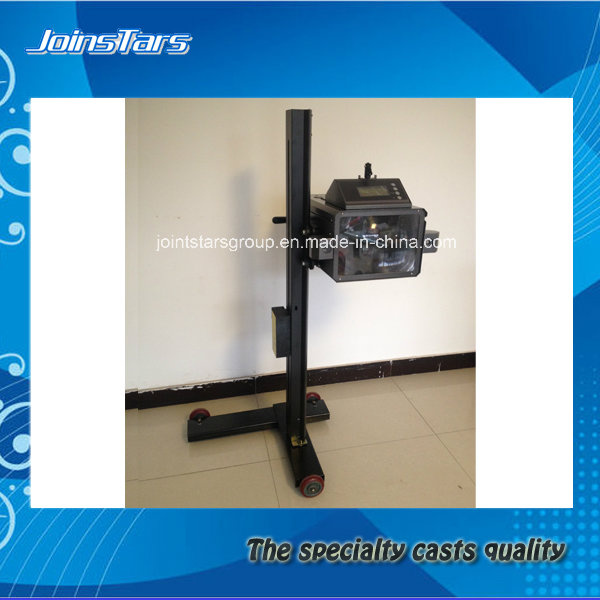

Automatic Headlight Tester/Semi-Automatic Headlight /Vehicle Headlight Tester/Headlamp Aligner
| Price: |
US $ 690-950/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Model: 3C Application3C Headlight tester measure the luminous intensity and the deviation of High beam and Low Beam of automotive cars, trucks and motorcycles. Ideal for small-sized vehicle inspect stations, auto service shops and educational institution. General Features1 European styled appearance2 Standard RS-232 interface and battery-operated in low power consumption mode.3 Bright and clear LCD display in Chinese and English.4 Assembly and disassembly are fast, smart and light, easy operation, easy to move and maintenance.5 Optional chargeable battery. Main Technical SpecificationsMeasuring RangeLight Intensity: 0 ~ 120,000cdDeviation of Optical Axis:Up 350mm/10m Down 525mm/10mLeft 525mm/10m Right 525mm/10mMeasurement AccuracyLight Intensity of High Beam: 10%Optical Deviation: 35mm/10mPower Supply:AC220V 10% 50Hz 1Hz or DC12V batteryPower Consumption: 15WNet Weight: 40KgOuter Dimension:680mm*570mm*1580mmPackage Dimension:Carton 1:750mm*560mm*460mmCarton 2:1610mm*370mm*240mmInspect distance:0.5m Delivery:Your required products will be shipped ASAP after your payment confirmed.All items will be carefully aging tested and run well assured before shipping.Warranty & Maintenance:We assure you18 months warranty, and lifelong maintenance.Feedback:Your positive feedback will be highly appreciated once you receive our products. Any question or suggestion,please do not hesitate to let us know.We are sure to do what we can to solve your problem.Hope to find a way to have long-term cooperation with you!| Applicable Scope |
| Headlight of the vehicle | Halide lamp |
| | HID lamp |
| | Incandescent lamp |
| Positioning ways |
| Alignment | The vertical direction alignment: the laser at the top of vertical post
The horizontal direction alignment: the laser on both sides of Optical Block. |
| Communication |
| PC | Cable Or Wireless |
| Measuring Range |
| Up | 0 - 350 mm / 10 m(0 - 2°) |
| Down | 0 - 525 mm / 10 m(0 - 3°) |
| Left | 0 - 525 mm / 10 m (0 - 3°) |
| Right | 0 - 525 mm / 10 m (0 - 3°) |
| Measuring range | 500mm±5mm |
| Height measuring Range | 300mm - 1300 mm |
| Light intensity |
| Measuring rang of High light illuminating intensity | 0 - 120000 Candela |
| Indicated value error |
| Indicated value error of High Light illuminating Intensity | ±10% |
| Indicated value error of High Light & near light axis offset | ±12′ |
| Applicable Conditions |
| Temperature | -5 °C ~40 °C |
| Relative humidity | <90% |
| Power supply | AV220±22V,50/60HZ |
| Size |
| Whole size(LxWxH) | 680mm×570mm×1400mm |
| Prod Model: |
3C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Headlight Tester: |
Headlight |
| Type: |
Auto Diagnostic Tool |
| Function: |
Shining |
| Certification: |
GS |
| Update Method: |
by Internet |
