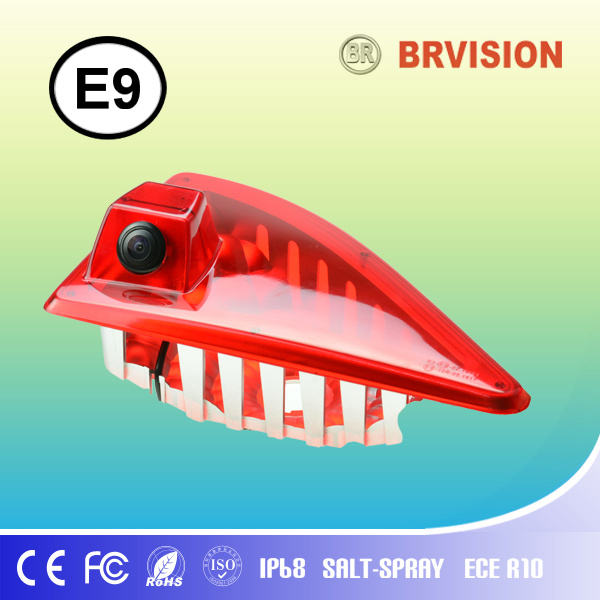

break light camera specially for Renault Master
Model NO.:BR-RVC07-RM
Technical data
Image Type : 1/3'' CCD
TV System: NTSC/PAL
Vibration Rate: 10G Built-in Lens : 2.8mm
Lens angel :120 degree
Waterproof and Dust resistance grade : IP69k
Horizontal Resolution: 700TV
Night Vision function: 9pcs LED lamp
Power:12VDC(+/-10%)
Video Output: 1.0vp-p, 75Ohm
Power Consumption: <3W
Operating temperature: -30ºC to +70ºC
Storage temperature: -40ºC to +80ºC
4P lock connector
| Image Type : | 1/3CCD |
| TV System: | NTSC/PAL |
| Vibration Rate: | 10G |
| Built-in Lens : | 2.8mm |
| Lens angel : | 170 degree |
| Waterproof and Dust resistance grade : | IP68 |
| Horizontal Resolution: | 700TVL |
| Night Vision function: | 9pcs LED lamp |
| Power: | 12VDC(+/-10%) |
| Video Output: | 1.0vp-p, 75Ohm, |
| Power Consumption: | <3W |
| Operating temperature: | -30ºC to +70ºC |
| Storage temperature: | -40ºC to +80ºC |
Waterproof IP68 Brake Light Camera for Renault Master
Model No.: BR-RVC07-RM
1. OE brake-light camera to Fit Renault Master
2. 20 degree Vertical view angle adjustment.
3. Built-in LED brake light.
4. Current Consumption: MAX: 50mA.
5. Sensor: PC1089 Sensor.
6. Resolution: 700 TV Line.
7. Minimum illumination: 0Lux with IR.
8. View angle: 120 degree.
9. Effective Pixies: 648*488.
10. TV System: NTSC / PAL.
11. Video colour: Full colour.
12. Waterproof: IP69K.
13. Working Voltage: DC 9-16 V.
14. Operating Temperature: -20° C to 80° C.
15. Including 10M locking extension cable.
16. Option: Speaker.
Specification:
| 3rd Brake Light Camera | Renault Master |
| Can Adjust | 120 degree Vertical View Angle Adjustment |
| Sensor | PC1089 sensor |
| Resolution | 540 TV Line |
| View Angle | 170 degree |
| Effective Pixies | 648*488 |
| TV System | NTSC/PAL |
| Working Voltage | DC 9-16 V |
| Operating Temperature | -30° C to 70° C |
| Waterproof | IP69K |
