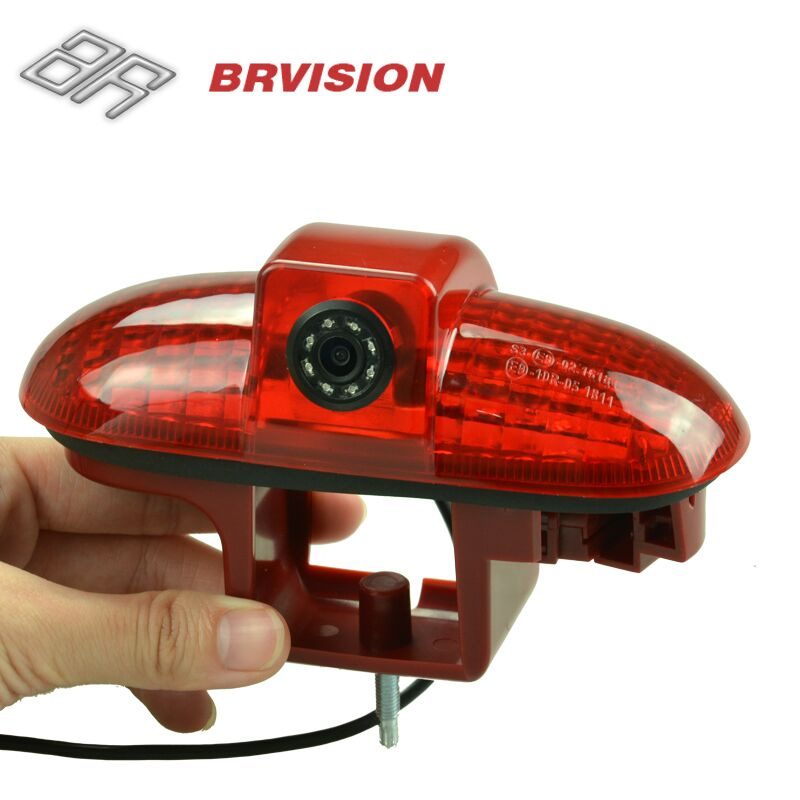

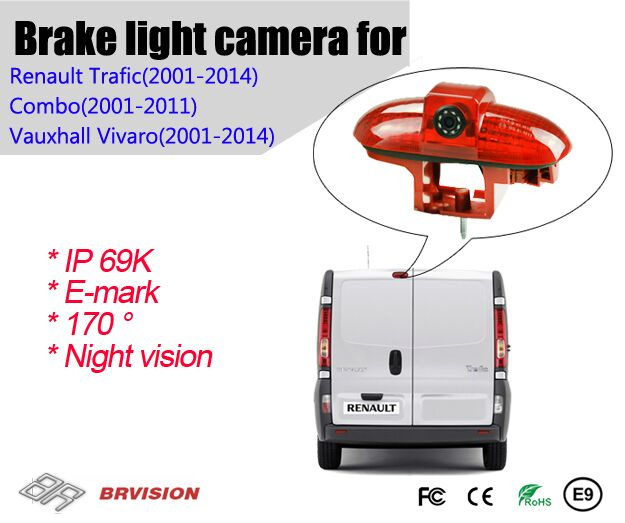

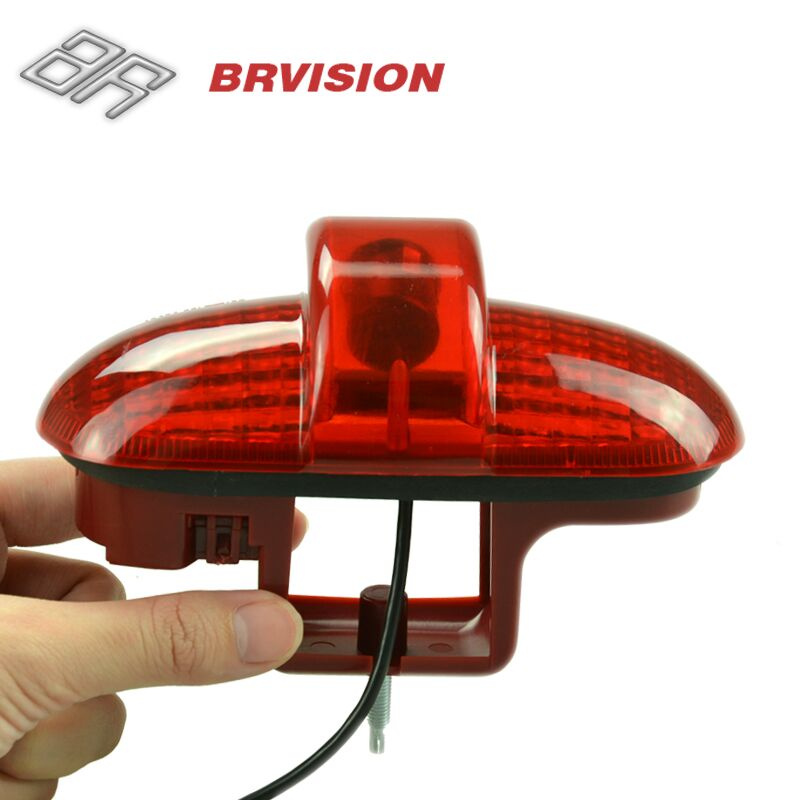

Products Specifications:BR-RVC23, Brake light camera for Renault Trafic(2001-2014),Combo(2001-2011),Vauxhall Vivaro(2001-2014). With IP69K waterproof rate. CE, Emark, RoHS certificate are available.
Item No. | BR-RVC23 |
Image Type | 1/3" CMOS/ CCD |
Night vision | Without IR lamp |
TV System | NTSC/PAL |
Lens Angle (Deg.) | 170 degree |
IP Rating | IP69K |
Vibration Rate | 10G |
Connector | 1M 4P BMW to 4P lock connector |
Effective Pixels | N: 510×492 pixels P: 500×582 pixels |
Horizontal Resolution | 700TVL |
B.L.C | Back light Compensation (Auto) |
White Balance | Auto White Balance (Auto) |
Minimum Illumination | 0Lux (LED ON) |
S/N Ratio | >=48dB |
Electronic Shutter | 1/60~1/100,000 Sec |
Power consumption | <3W |
Built-in Lens | f: 2.8mm |
Power Consumption | DC 12V (+/-10%) |
Audio | without |
Operation Temperature | -30ºC~+70ºC.RH95% Max |
Storage Temperature | -40ºC~+80ºC.RH95% Max |
Certificate | FCC,CE, E-mark,ISO9001, RoHS |
Company informationBRvision Technology Co.,LTD is a manufacturer and company serving the Heavy-duty truck and commercial vehicle industry with vehicle safety systems, including reversing camera, monitor, dash camera, parking sensor and mobile DVR etc.
BRvision was established in 2008, designed the first OE mirror monitor & camera for Chrysler.
Our new factory was established in Songgang, Shenshen in 2012. In these year, all the test equipment installed in factory, and we also produced OE camera for Suzuki.
In 2013, we past the ISO, set up our R&D department, also the overseas sales office established in Shajing, and the ERP system online this year.
We do 100% exporting, most of our products were exported to Western EU, Oceania and North America. We offer one global price, which is fair to each client.
Our mission is providing you a safety solutions on vehicles ! Welcome to visit our factory !
Trade Show Review
Since BRvision established in 2008, we have been attending the automechanika show Frankurt and IAA show Germany and Sema show Las Vegas and some other hot automative shows all over the world for many years . Welcome to contact our sales for our trade show information .
Our serviceAs a up-rising star in this field, the advantages we have as follows:
We are professional Vehicle camera system manufacturer with rich experience to serve OEM and ODM for all top famous brands in this field.
We past all of the relative Certificates in this field, : E-mark, FCC,CE, ISO9001, E9, IP69K. We are applying for TS16949.
We have good quality control, our products need to be doing tests such as Salt Spray Test, High&Low Temperature,humidity Test, Aging Test,Vibration Test ,Waterproof Test, Viewing angle Test,Color Test ......
We have Own designing team for new products development, that's why we are good at OEM/ODM projects. We have a ERP system to control the production, one ERP system to control our sales tem, and one ERP system to control our R&D team.
