Prod Model:	LS-CS07b

Product Description

Technical details:

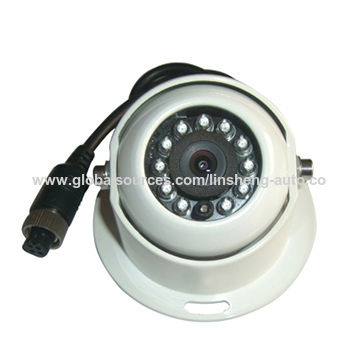

Special designed camera for indoor use

Night version, 11 IR LEDs

IR distance: approximately 15m

High resolution

1. Image pick-up sensor: Sharp 1/3-inch B/W CCD sensor specifications

2. TV system: CCIR/EIA

3. Horizontal resolution (TV lines): 420TV lines

4. Number pixels: 512(H)*582(V); PAL: 512(H)*492(V).

5. Scanning system: 2:1 interlace

6. Sync system: internal synchronization

7. Minimum illumination: 0.05 lux/F1.2 (0 lux/F1.2 with IR)

8. Horizontal synchronization resolution: 15625/15734kHz

9. Vertical synchronization resolution: 50/60Hz

10. Gamma characteristic: 0.45

11. AGC: auto

12. S/N ratio: ≥48dB

13. White balance: auto

14. Electronic shutter: 1/50 (CCIR) and 1/60 (EIA) to 1/1000 seconds

15. BLC: auto

16. Current consumption: maximum 300mA

17. Power supply: 12V DC

18. Operating temperature: -20°C-70°C, 95% RH max

19. Storage temperature: -40°C-80°C, 95% RH max

20. Lens: f=3.6/2.8mm, f=2.0

Located at Guangzhou city south of China, LINSHENG INTERNATIONAL ENTERPRISE Co., Ltd specialized in automobile Safety and Security Systems and Accessories electronics with decade rich of experience.

Mainly of our products are Pickups Tonneau Cover Remote Control System, Wheelchair Platform Remote Control System, Commercial Vehicles Parking Sensors(wired and wireless), and Trucks Power Window Kits and Central Locking. Manufactured under strict quality control measures, products with CE, FCC certified by SGS; Which are ready for Europe, USA, Canada and Australia developed countries.

We can provide customized design and molding support, our R&D department 16 engineers team always standing by for your OEM and ODM projects. Addtionally, both software and hardware technicians always working in the meanwhile will speed up your projects finished and perfected in a shorter time.

To work with a qualified and reliable supplier, please do contact us today!
