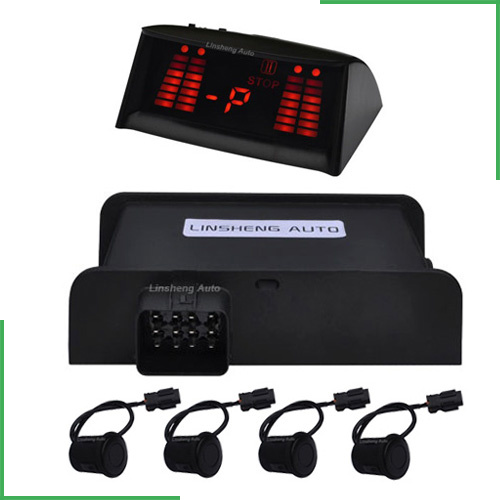

Name: Powerline-Bus Transmission Truck Wireless Parking Sensor
Brand: ibuyautoparts.com
SKU: 812263885
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 118/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications:

1. LED display, distance in metere or feet/inches
2. Warnning mode: Digit, LED bar & Sound
3. Transmission mode: powerline-bus
4. Power source: 10.5-16.0 or 18.0-28.0V DC
5. Minimun detection 0.2 meter
6. Complex sensor, easy for replacement when neccessary
7. Interlligent ECU detect and alert defective sensor automatically
8. Working Temp:-35~+80 degree
9. 4 Rear Active Sensors, 40KHz
10. Waterproof:Sensor IP67, ECU IP66, Connector IP67
11. Detection Range: 0.7~13' / 0.22~4.0m
12. 164Ft ( 50M ) transmission range in stable
13. Power-bus transmission stable working absolutely
14. Full specification data available
15. CHINA TOP 1 QUALITY WIRELESS TRUCKS PARKING SENSORS

Dimensions:

Specification:

Rated Voltage	12V/24V DC
Operation Voltage	10.5V~30.0V DC
Operation Current	200mA Max
Sound Pressure (dB at 30CM)	0~75dB
Operation Humidity	<90%RH
IP Code	IP65
Operation Temp.	-30~+80(ºC)

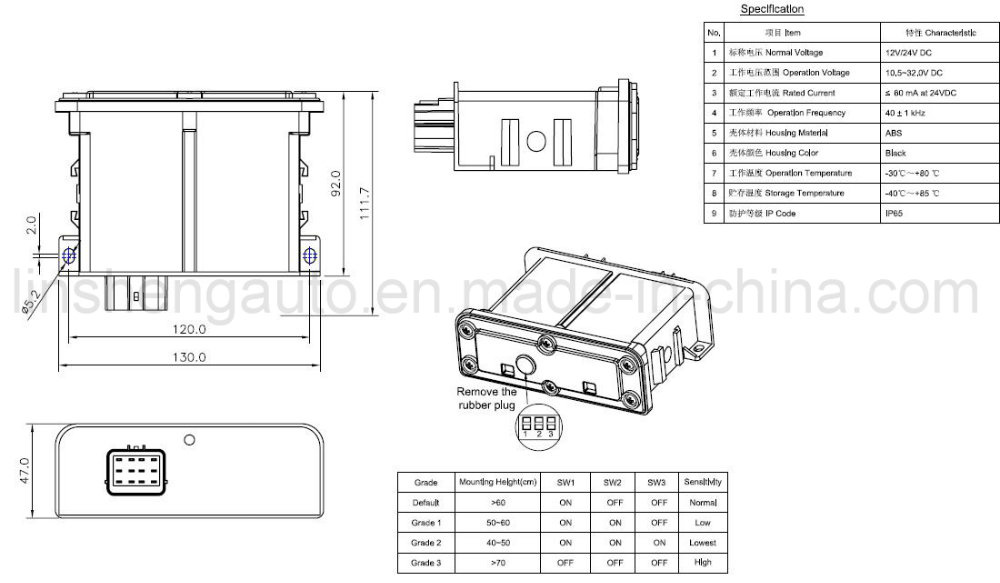

ECU dimensstions:

Prod Model:	LS- WCVPS-led
Customized:	Yes
OEM:	Yes
ODM:	Yes
Normal Voltage:	12VDC/24VDC
Kind:	Obstacle Detection Radar
Certification:	RoHS
Working Principle:	Frequency Modulated Continuous Wave
Operating Temperature Range:	-20??C~+80??C
Test Distance:	0.2~4.0 Meters
Warning Type:	LED+Audio
Technich Type:	Powerline
Installation Method:	Open-Hole or Hungup
Brand:	Linsheng-Auto

Located at Guangzhou city south of China, LINSHENG INTERNATIONAL ENTERPRISE Co., Ltd specialized in automobile Safety and Security Systems and Accessories electronics with decade rich of experience.

Mainly of our products are Pickups Tonneau Cover Remote Control System, Wheelchair Platform Remote Control System, Commercial Vehicles Parking Sensors(wired and wireless), and Trucks Power Window Kits and Central Locking. Manufactured under strict quality control measures, products with CE, FCC certified by SGS; Which are ready for Europe, USA, Canada and Australia developed countries.

We can provide customized design and molding support, our R&D department 16 engineers team always standing by for your OEM and ODM projects. Addtionally, both software and hardware technicians always working in the meanwhile will speed up your projects finished and perfected in a shorter time.

To work with a qualified and reliable supplier, please do contact us today!
