Waterproof Extreme Pulling 4500 UTV Electric Winch with Excellent Feedback

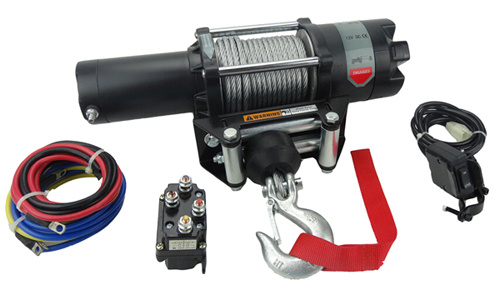

Name: Waterproof Extreme Pulling 4500 UTV Electric Winch with Excellent Feedback
Brand: ibuyautoparts.com
SKU: 839019515
Availability: InStock
Rating: 4.6 (48 reviews)

Price:	US $ 81-89/Piece
Min Order:	36/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Newly developed electric winch for extra bigger Side x Sides .When you are looking for ideal winch for your bigger UTV or extra weight Side x Side .This professional winch design is your best choice !
Portable & compact design , powerful seale winch motor (same performance as Top Brand winch motors ) , three planetary gear drive- train ,fast line speed ,gear ratio: 156:1! all metal gears , run smoothly with no noise ,draw low amps .more efficient . Extreme performance with not a big price ! Ideal winch for ATV & UTV riders .
We have design three kinds of pulling rates on this winch model : 3500lbs ,4000lbs and 4500lbs winch with both wire steel cable and synthetic ropes available !

OEM service is acceptable all the time !

UTV 4500LBS WINCH FEATURES AND SPECIFICATIONS

Part Number : XM-XU814

a. pulling rate: 4500lbs. (3389kgs) single-line
b.motor : DC 12V 2.2hp/ 1.7kw permanent magnet sealed
c.gear ratio: 156:1 three stage planetary geartrain sealed
d.clutch: Turning & sliding ring gear
e.brake : mechanical
f.switch : handlebar mount mini-rocker wire control and wireless remotecontrol included
g.Roller fairlead
H.Wire Rope: 50', 6.5mm diameter (15m, 6.5mm diam)
I.Mounting Bolt Pattern: 76 X 167mm
J. wirings ,solenoid (IP67) INCLUDED

Optional kits
Snatch block
winch cover
gloves
hook & strap

Prod Model:	XM-XU814
Pulling Rate:	4500 Lb
Durable:	Lifetime
Size:	Compact Design
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Electric Winch Model:	ATV & UTV
Working Voltage Of Electric Winch:	12 or 24 V

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
