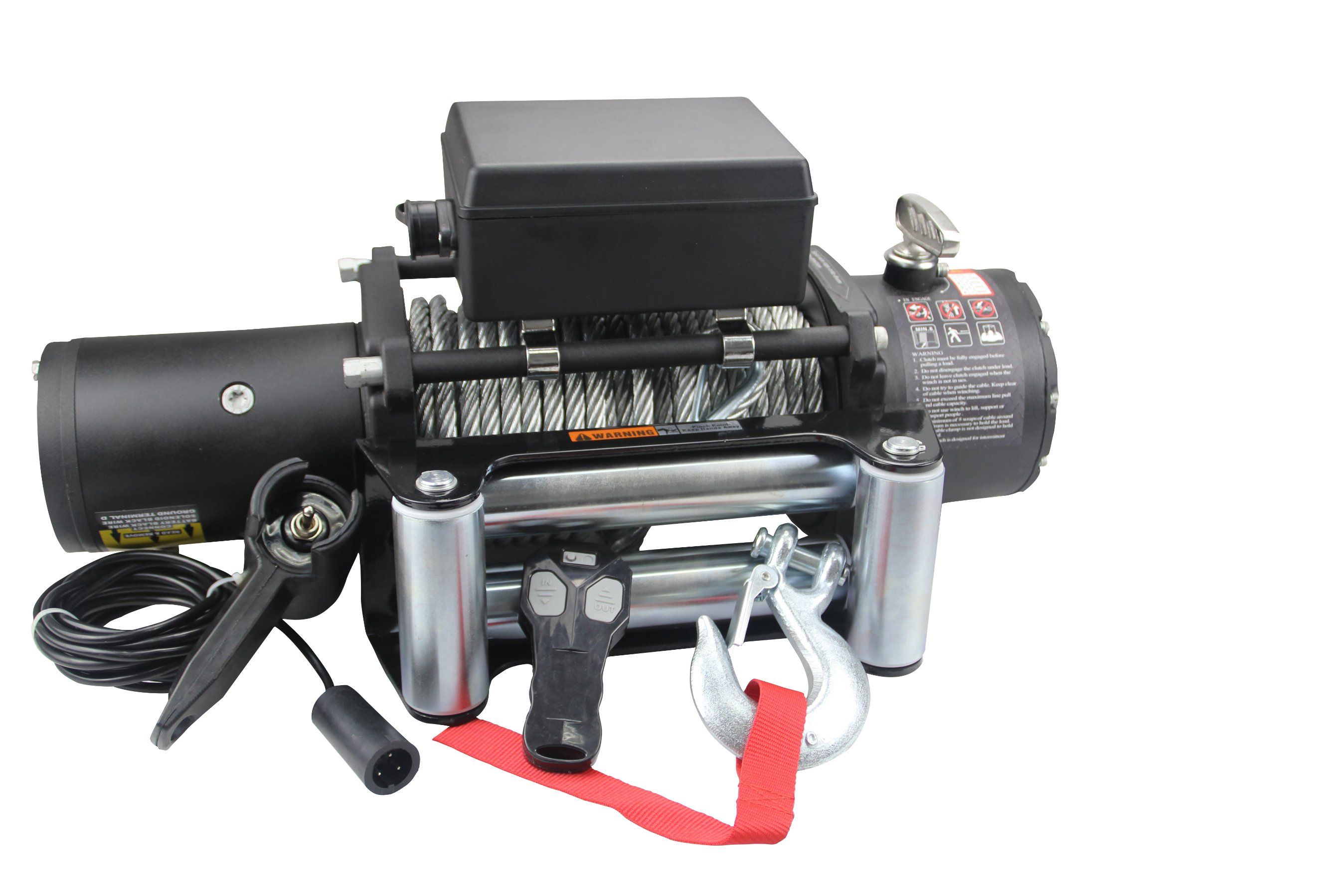

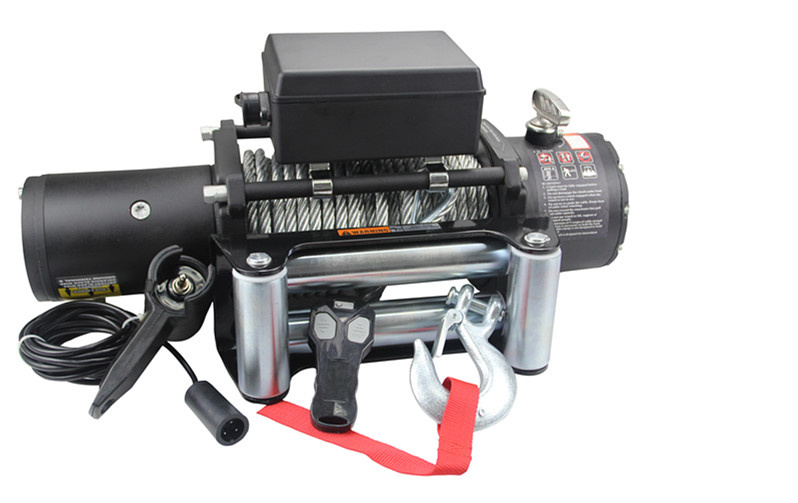

Powerful off -Road Recovery Electric Winch with 9500 Lb

 Very popular model in the current market. Classic design, excellent performance with not a big price, which are the top choice for customers. High quality with brute torque series wound motor, 3 stage gear driven train, Sliding ring gear for "engage" and "disengage". Working at extreme hard condition, low noise, small AMPS. Top recovery equipment for off-road. They are available of pulling ranges from 8500lbs-12500lbs. Welcome to further inquiries!

OEM is available

Synthetic rope & aluminum fairlead are available for this model!

9500LBS Features and Specifications:

Part number: XM-TE935

Performance: DC 12 V OR 24 V

Single line rated pull: 95, 000lbs ( 4304kg)

Motor: 5.0HP/4.0kw series -wound sealed

Braking action: Automatic locking with motor

Clutch: Sliding ring gear

Gear train: 3 -stage planetary

Gear ratio: 265: 1

Remote Switch: 12FT, wire remote control with black hand bar, wireless remote kits included

Battery: Recommended: 650CCA minimum for winching

Battery Leads: 2 Gauge 72"(1.83m)

Fairlead: 4-way roller fairlead (Aluminum Hawse available )

Synthetic rope: Ф8.5 X 85 FT (Ф8.5X 25 m )

Weight: 82 pound (37kg )

Overall dimension: 21.3" X 8.6" X 6.3" (550mm X 220mm X 160mm)

Mounting bolt pattern: 10" X 4.5" (254mm X 114.3mm)
