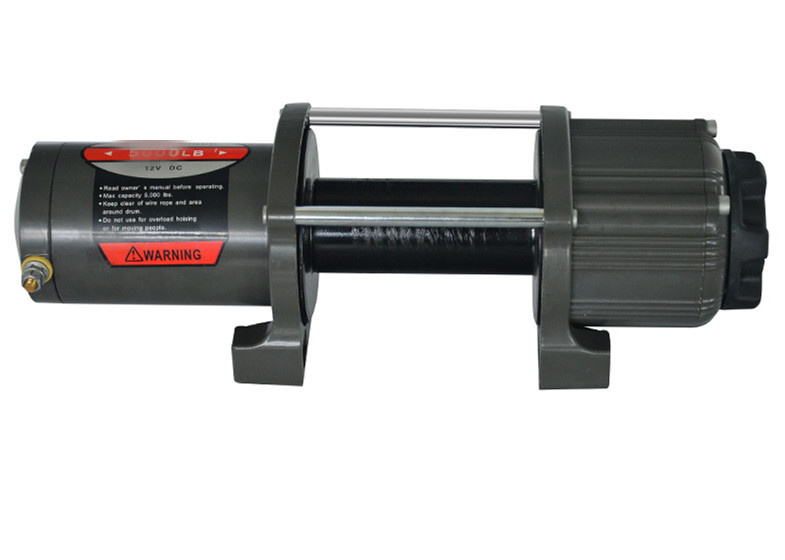

Waterproof & Extreme Performance Electric UTV Winch with 4000 Lb Pulling

Name: Waterproof & Extreme Performance Electric UTV Winch with 4000 Lb Pulling
Brand: ibuyautoparts.com
SKU: 729486132
Availability: InStock
Rating: 4.4 (58 reviews)

Price:	US $ 110-128/Piece
Min Order:	36/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-XU807
Pulling Rate:	4000 Lb
Durable:	Lifetime
Size:	Compact Design
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Certification:	CE
Pull Direction:	Forward and Backward
Working Voltage Of Electric Winch:	12 or 24 V

Product Description

Classic design electric winch for UTV & Side x Sides .When you are looking for ideal winch for your UTV or LIGHT Side x Side Business .Our 4000lbs winch is your best choice !

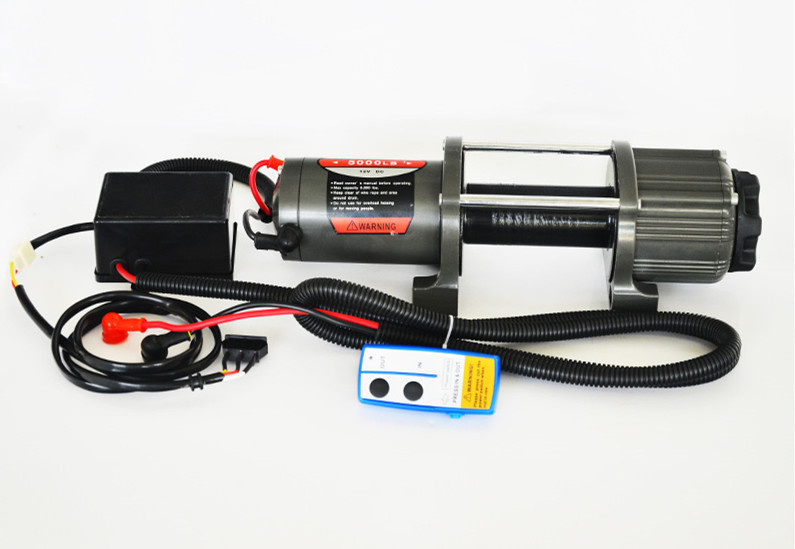

Portable & compact design , high torque fast speed permanent magnet winch motor sealed , three planetary gear train ,fast line speed ,gear ratio: 136:1! all metal gears , run smoothly with small noise ,draw low amps .more efficient . Sealed gear box . ATV winch accessories --- fairlead ,remotes ,separated solenoid power box and wires with cover included .

Both steel cable and synthetic rope are dependable on the requirements
OEM service is acceptable all the time !

UTV 4000LBS WINCH FEATURES AND SPECIFICATIONS

Part Number : XM-XU807
1. pulling rate: 4000lbs. (1812 kgs) single-line
2.motor : DC 12V 1.6hp/ 1.2kw permanent magnet
3.gear ratio: 136:1 three stage planetary gear train
4.clutch: cam activated
5.brake : mechanical
6.switch : handlebar mount mini-rocker wire control and wireless remote control included or Optional
7.fairlead : aluminum hawse for synthetic rope ,4-way roller fairlead for steel cable
8.Wire Rope: 50', 6.5mm diameter (15m, 6.5mm diam)
9 .Mounting Bolt Pattern: 3.0' x 6.6'(76 X 168mm)
10. wirings ,solenoid (IP67) INCLUDED

Optional kits
Snatch block
winch cover
gloves
hook & strap
winch steel cable
winch synthetic rope

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.
