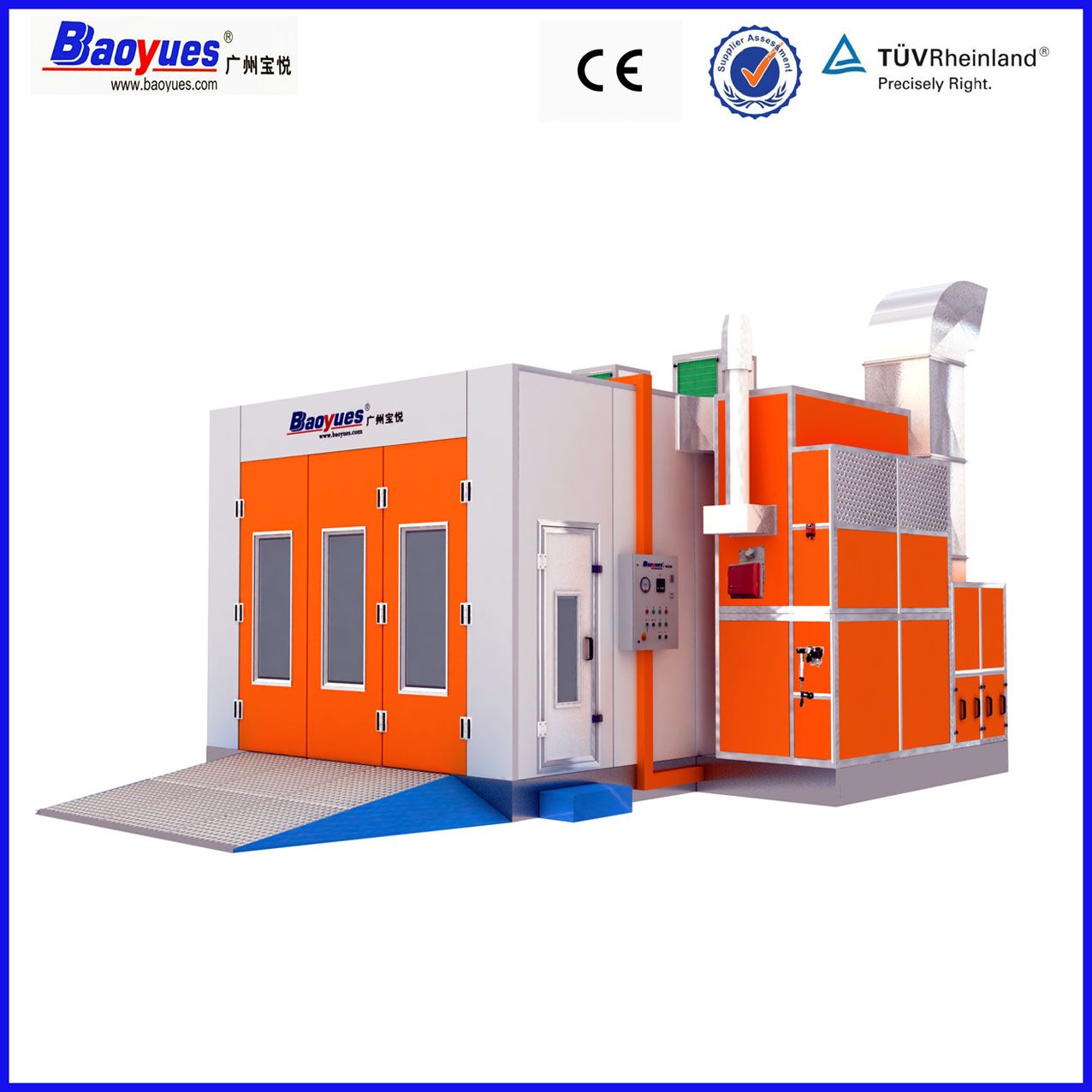

Water Base Paint System, Painting Room
| Price: |
US $ 9000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
BY-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Water Base Paint System,Painting Room |
| Usage: |
for Car(or Furniture) Painting, Baking |
| Specifications: |
Customise Acceptable |
| Certificate: |
CE, CCS, TUV, SGS |
| Service: |
Professional Team for Installation Abroad |
| Warranty: |
1 Year |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Wet-type |
| Certification: |
UL |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Baoyues |
Product Description
Water base paint system,painting room
1. Powerfrugal system
2. CE,CCS,TUV,SGS certificates
3. Low noise, no pollution
4.1 year warranty
5. Professional team for installation abroad
The details
The inside dimension and outside dimension can be design as your requirement. Baoyue offter the warranty about 1 year, with professional technical and best service in this line.
Certificates:Water base paint system,painting room
Water base paint system,painting roomWater base paint system,painting room
Introduction of Guangzhou Baoyues:
Guangzhou Baoyue Electromechanical Equipment Co.,Ltd,which specilize in the design, manufacture and sale for auto spray/backing booth,industry painting equipment, high temperature drying plant, has sucessfully exported our products to Europe, Africa, America ect. and get a positive feedback. We own the factory in Guangzhou of China, all the customer are welcomed to visit our factory. The competitive price and high quality of our products can be very helpful to your business.
Guangzhou Baoyues, the leader manufacturer of spray booth in China! ! !
|
Item |
Detailed Specification |
|
Inside dimension |
6900×3900×2650 mm (L×W×H) |
|
Outside dimension |
7000×5600×3500mm (L×W×H) |
|
Front door |
Folding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame, orange colour, door head and two batten on both sides white colour. |
|
Emergency door |
1 units, 800×2000mm (W×H), colour: white. |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support, adjustable type, full grilles made by flat bar and twisted steel, galvanized, 3 ramps, 900×2000mm/pc, silver colour. |
|
Wall panel |
Thickness: 50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with PU inside, colour: white. |
|
Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×58W, side lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, three primary colours Phillip tube, lighting boxes are powered coated, illumination ≥ 1500LUX |
|
Generator cabinet |
Intake from side upper, exhaust from rear upper, aluminum alloy steel frame; orange machine-made panel covered, filled with heat preservation material inside. |
|
Intake and Exhaust system |
Inlet: 2×4KW centrifugal fan, belt drive, model: TAE-400H, total air capacity: 25000m 3 / h, air speed ≥ 0.24m/s. |
|
Outlet: 1×7.5KW centrifugal fan, belt drive, model: TAE-560H, total air capacity: 24000m3/h. Manual damper, 4m ducts, 1 pcs 90 0 bend, 1 pcs 30 0 bend. |
|
Heating system |
Italy RIELLO RG5S diesel burner, double layer stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000kcal/h, max temperature: 80 degree . |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, cylinder activated carbon filter. |
|
Water base paint system |
Water base paint system on the roof, stainless steel nozzle, 3×0.75KW motor, air capacity: 4800 m3/h. |
|
Roof |
50mm PU panel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, pressure gauge, power supply switch, water base paint switch, emergency stop, all motors is normal start. |
|
Total power |
22KW (Power supply 1×220V, 3×380V, 50HZ) |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
