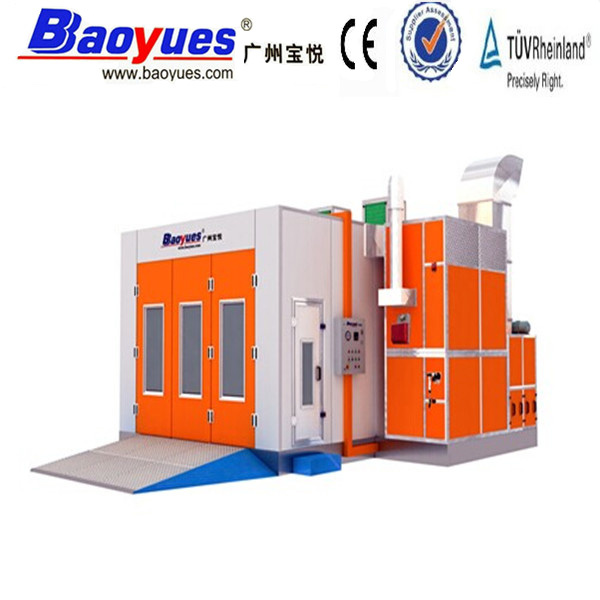

Environmental Automotive Maintenance Eqipment, with Water-Borne Paint System
| Price: |
US $ 10000-13000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Description
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Advantages
1. Professional team for installation abroad
2. Timely delivery
3. CE TUV proved
4. Best quality
5. Best service
6. Best price
Our service
1. Professional vehicle equipment supplier.
2. Continuous development of new products.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system & good reputation in the market.
Company: Professional manufacturer and competitive factory price, we can control of the production cycle and product quality very good
Our products had sold to Australia, Germany, Nigeria, Philippine, Romania, Singapore, Russian Federation, Kingdom of Saudi Arabia, The United Arab Emirates, etc...
Other trading conditions and terms, please find below:
A: Payment term: T/T 50% in advance after order confirmed, 50% in balance before shipment.
B: Delivery time: To effect shipment within 15 days after receipt of deposit.
C: Warranty time: 1 years. During the warranty time, any time, any problem caused by products' quality, BAOYUE has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier. Enclosed please kindly find the BAOYUE guarantee & after-sales services clause.
|
Item |
Detailed Specification |
|
Inside dimension |
6900×3900×2650 mm (L×W×H) |
|
Outside dimension |
7000×5600×3500mm (L×W×H) |
|
Front door |
Folding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame,
orange colour, door head and two batten on both sides white colour |
|
Emergency door |
1 units, 800×2000mm (W×H), colour: white. |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support, adjustable type, full grilles made by flat bar and twisted steel, galvanized, 3 ramps, 900×2000mm/pc, silver colour. |
|
Wall panel |
Thickness: 50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with PU
inside, colour: white. |
|
Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×58W, side lights: 8Units×4Pcs=32Pcs×36W, with electronic
ballasts, three primary colours Phillip tube, lighting boxes are powered coated, illumination ≥
1500LUX |
|
Generator cabinet |
Intake from side upper, exhaust from rear upper, aluminum alloy steel frame; orange machinemade panel covered, filled with heat preservation material inside. |
Intake and Exhaust
system
|
Inlet: 2×4KW centrifugal fan, belt drive, model: TAE-400H, total air capacity: 25000m3/h, air
speed ≥0.24m/s. |
Outlet: 1×7.5KW centrifugal fan, belt drive, model: TAE-560H, total air capacity: 24000m3/h.
Manual damper, 4m ducts, 1 pcs 900 bend, 1 pcs 300 bend |
|
Heating system |
Italy RIELLO RG5S diesel burner, double layer stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000kcal/h, max
temperature: 80°C |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, cylinder activated carbon filter |
Water base paint
system |
Water base paint system on the roof, stainless steel nozzle, 3×0.75KW motor, air capacity: 4800m3/h. |
|
Roof |
50mm PU panel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat,
pressure gauge, power supply switch, water base paint switch, emergency stop, all motors is normal start. |
|
Total power |
22KW (Power supply 1×220V, 3×380V, 50HZ) |
| Prod Model: |
BY-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Used Auto Repair Equipment |
| Color: |
Orange |
| Voltage: |
1X220V,3X380V,50Hz |
| Purification: |
≥97% |
| Noise Db (a): |
≤70 |
| Air Capacity: |
25000m3/H |
| Free Air Speed: |
≥0.24m/S |
| Frequency Of Air Change: |
294 Time /H |
| Safety: |
with Pressure Emergency Door |
| Wararanty: |
12month |
| Airflow Direction: |
Fully Undershot-type |
| Paint Mist Treatment: |
Wet-type |
| Certification: |
CSA |
| Condition: |
New |
| Type: |
Water Borne Paint Spray Booth |
| Heating Mode: |
Diesel or Electric |
| Brand: |
Baoyue |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
