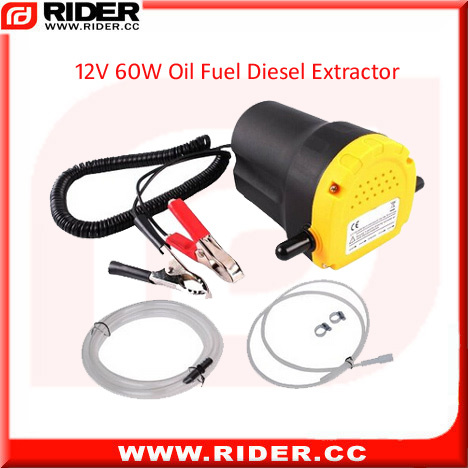

12V 60W Oil Fuel Diesel Extractor Scavenge Suction Transfer Pump Specifications:Voltage DC 12V
Rated Power 60 W
Rated Current 5 amps
Flow Rate for motor oil(40-60centigrade degree ) 3 L/min
Flow Rate for diesel 4 L/min
Electric wire length 3m
Connector 1/2 inch
Hose Dimension(approx.): Length / Outer diameter / Inner diameterSuction hose: 1.2M / 6mm / 4mm

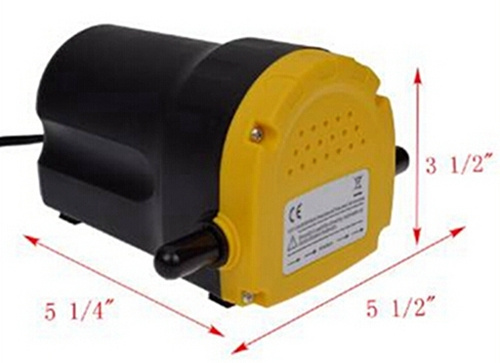

Discharge hose: 1.5M / 12mm / 10mm Oil Extractor Pump Size: 5 1/4'' x 5 1/2'' x 3 1/2 ''( L x W x H)Packing&shipping information:Inner case: 18x13x8.5cm.
G. W. /N. W: 1.2/1.1kg
Packing 10pcs/ctn
Outer Carton 47x22x38cm
G. W. /N. W: 13/11kg
Feature:Ideal for quick and clean oil -changes

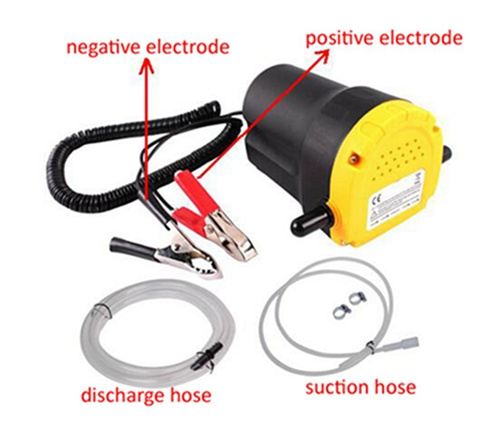

The oil-pump works by connecting the clamps to the 12v car battery.
To extract oil through the oil dipstick bore with 6mm diameter soft hose
Important:DO NOT keep the oil-extractor running exceed 30 minutes to avoid over heat.Cool it down before you turn it on again.DO NOT use the extractor for the following liquids:Water (no lubrication of the pump)Gearbox-oil (too viscous)Easy inflammable liquids (fuel, petrol, etc;)Package includes:1 x Fuel Transfer Extractor Pump with electrode clamps.2 x Hose (suction hose and discharge hose).2 x connectors.1 x User manual .

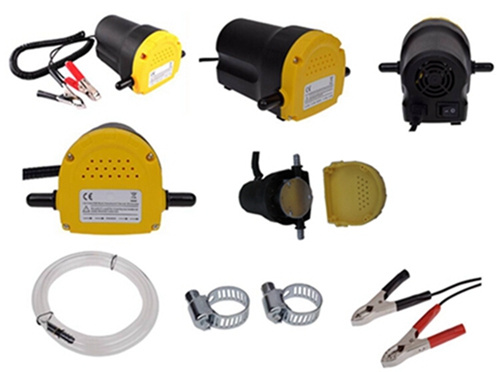

Product detail show:
More products:| Model | Specification | Packing info. |
| R-A-WOD-80PB-1 | Vacuum degree:0-minus 0.08mpa
Working pressure:8-10kg/cm
Oil tank capacity:80L
Medium Lubricating oil
Φ5mm probes:1pc
Φ6mm probes:2pcs
Φ8mm probes:2pcs
Release pressure:4kg/cm2 | Qty:1pcs/carton
G.W./N.W.:21.5/20kg
Carton size:55x46x100cm |
| R-A-WOD-80PB-2 | Vacuum degree:0-minus 0.08mpa
Working pressure:8-10kg/cm
Oil tank capacity:80L
Medium Lubricating oil
Φ5mm probes:1pc
Φ6mm probes:2pcs
Φ8mm probes:2pcs
Release pressure:4kg/cm2 | Qty:1pcs/carton
G.W./N.W.:21.5/20kg
Carton size:53x46x85.5cm |
| R-A-WOD-80CPB-1 | Vacuum degree:0-minus 0.08mpa
Working pressure:8-10kg/cm
Oil tank capacity:80L
Oil basin capacity:10L
Medium Lubricating oil
Φ5mm probes:1pc
Φ6mm probes:2pcs
Φ8mm probes:2pcs
Release pressure:4kg/cm2 | Qty:2ctns/pc
#1 carton :
G.W./N.W:18.8/16.6kg
Carton size:53×46×84cm
#2 carton :
G.W./N.W:7.7/6.6kg
Carton size:57×39×40cm |
| R-A-WOD-80CPB-2 | Vacuum degree:0-minus 0.08mpa
Working pressure:8-10kg/cm
Oil tank capacity:80L
Oil basin capacity:10L
Medium Lubricating oil
Φ5mm probes:1pc
Φ6mm probes:2pcs
Φ8mm probes:2pcs
Release pressure:4kg/cm2 | Qty:2ctns/pc
#1 carton :
G.W./N.W:18.8/16.6kg
Carton size:53x46×80cm
#2 carton :
G.W./N.W:7.7/6.5kg
Carton size:57x39x40cm |
| R-A-WOD-60B | Oil tank capacity:60L | Qty:1pcs/carton
G.W./N.W:12/11kg
Carton size:46×46×64.5cm |
| R-A-WOD-80B-1 | Oil tank capacity:80L | Qty:1pcs/carton
G.W./N.W:13.5/12kg
Carton size:46×46×80.5cm |
| R-A-WOD-80B-2 | Oil tank capacity:80L
Working pressure:1-2.5BAR
Release pressure:3BAR
Draining hose Length:160cm
Min. collection height:100cm
Max. collection height:160cm | Qty:1pcs/carton
G.W./N.W.:18.5/17.2kg
Carton size:48×44×79cm |
| R-A-WOD-80B-3 | Oil tank capacity:80L
Working pressure:1-2.5BAR
Release pressure:3BAR
Draining hose Length:160cm
Min. collection height:100cm
Max. collection height:160cm | Qty:1pcs/carton
G.W./N.W:18.5/17.5kg
Carton size:48×44×79cm |
| R-A-WOD-80B-4 | Oil tank capacity:80L
Working pressure:1-2.5BAR
Release pressure:3BAR
Draining hose Length:160cm
Min. collection height:100cm
Max. collection height:160cm | Qty:1pcs/carton
G.W./N.W:18.5/17kg
Carton size:48×44×79cm |
| R-A-WOD-80CP | Vacuum degree:0-minus 0.08mpa
Working pressure:8-10kg/cm
Oil tank capacity:80L
Medium Lubricating oil
Φ5mm probes:1pc
Φ6mm probes:2pcs
Φ8mm probes:2pcs
Release pressure:4kg/cm2 | Qty:2ctns/pc
Carton #1:
G.W./N.W:18/17.5kg
Size: 47×40×80cm
Carton #2:
G.W./N.W: 2.5/2kg
Size:43×25×25cm |
| R-A-WOD-80P | Oil tank capacity:80L
Working pressure:1-2.5BAR
Release pressure:3BAR
Φ5mm probes:1pc
Φ6mm probes:2pcs
Φ8mm probes:2pcs | Qty:1pcs/carton
G.W./N.W:17.5/16kg
Carton size:47×40×80cm |
