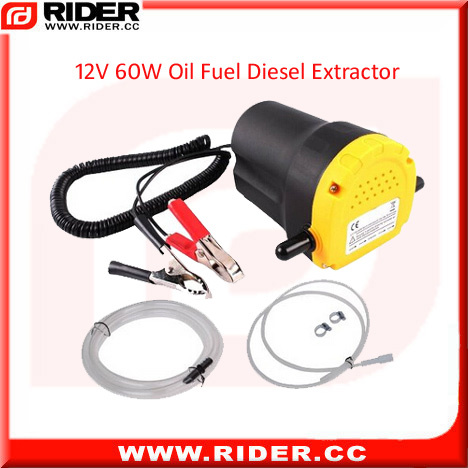

12V 60W Oil Fuel Diesel Extractor Scavenge Suction Transfer Pump
Specifications:
Voltage DC 12V
Rated Power 60 W
Rated Current 5 amps
Flow Rate for motor oil(40-60centigrade degree ) 3 L/min
Flow Rate for diesel 4 L/min
Electric wire length 3m
Connector 1/2 inch
Hose Dimension(approx.): Length / Outer diameter / Inner diameter
Suction hose: 1.2M / 6mm / 4mm
Discharge hose: 1.5M / 12mm / 10mm
Oil Extractor Pump Size: 5 1/4'' x 5 1/2'' x 3 1/2 ''( L x W x H)
Packing&shipping information:
Inner case: 18x13x8.5cm
G. W. /N. W: 1.2/1.1kg.
Packing 10pcs/ctn
Outer Carton 47x22x38cm
G. W. /N. W: 13/11kg
Feature:
Ideal for quick and clean oil -changes
The oil-pump works by connecting the clamps to the 12v car battery.
To extract oil through the oil dipstick bore with 6mm diameter soft hose
Important:
DO NOT keep the oil-extractor running exceed 30 minutes to avoid over heat.
Cool it down before you turn it on again.
DO NOT use the extractor for the following liquids:
Water (no lubrication of the pump)
Gearbox-oil (too viscous)
Easy inflammable liquids (fuel, petrol, etc;)
Package includes:
1 x Fuel Transfer Extractor Pump with electrode clamps.
2 x Hose (suction hose and discharge hose).
2 x connectors.
1 x User manual .
Product detail show:
More products:
Model | Specification | Packing info. |
R-A-WOD-80PB-1 | Vacuum degree:0-minus 0.08mpa Working pressure:8-10kg/cm Oil tank capacity:80L Medium Lubricating oil Φ5mm probes:1pc Φ6mm probes:2pcs Φ8mm probes:2pcs Release pressure:4kg/cm2 | Qty:1pcs/carton G.W./N.W.:21.5/20kg Carton size:55x46x100cm |
R-A-WOD-80PB-2 | Vacuum degree:0-minus 0.08mpa Working pressure:8-10kg/cm Oil tank capacity:80L Medium Lubricating oil Φ5mm probes:1pc Φ6mm probes:2pcs Φ8mm probes:2pcs Release pressure:4kg/cm2 | Qty:1pcs/carton G.W./N.W.:21.5/20kg Carton size:53x46x85.5cm |
R-A-WOD-80CPB-1 | Vacuum degree:0-minus 0.08mpa Working pressure:8-10kg/cm Oil tank capacity:80L Oil basin capacity:10L Medium Lubricating oil Φ5mm probes:1pc Φ6mm probes:2pcs Φ8mm probes:2pcs Release pressure:4kg/cm2 | Qty:2ctns/pc #1 carton : G.W./N.W:18.8/16.6kg Carton size:53×46×84cm #2 carton : G.W./N.W:7.7/6.6kg Carton size:57×39×40cm |
R-A-WOD-80CPB-2 | Vacuum degree:0-minus 0.08mpa Working pressure:8-10kg/cm Oil tank capacity:80L Oil basin capacity:10L Medium Lubricating oil Φ5mm probes:1pc Φ6mm probes:2pcs Φ8mm probes:2pcs Release pressure:4kg/cm2 | Qty:2ctns/pc #1 carton : G.W./N.W:18.8/16.6kg Carton size:53x46×80cm #2 carton : G.W./N.W:7.7/6.5kg Carton size:57x39x40cm |
R-A-WOD-60B | Oil tank capacity:60L | Qty:1pcs/carton G.W./N.W:12/11kg Carton size:46×46×64.5cm |
R-A-WOD-80B-1 | Oil tank capacity:80L | Qty:1pcs/carton G.W./N.W:13.5/12kg Carton size:46×46×80.5cm |
R-A-WOD-80B-2 | Oil tank capacity:80L Working pressure:1-2.5BAR Release pressure:3BAR Draining hose Length:160cm Min. collection height:100cm Max. collection height:160cm | Qty:1pcs/carton G.W./N.W.:18.5/17.2kg Carton size:48×44×79cm |
R-A-WOD-80B-3 | Oil tank capacity:80L Working pressure:1-2.5BAR Release pressure:3BAR Draining hose Length:160cm Min. collection height:100cm Max. collection height:160cm | Qty:1pcs/carton G.W./N.W:18.5/17.5kg Carton size:48×44×79cm |
R-A-WOD-80B-4 | Oil tank capacity:80L Working pressure:1-2.5BAR Release pressure:3BAR Draining hose Length:160cm Min. collection height:100cm Max. collection height:160cm | Qty:1pcs/carton G.W./N.W:18.5/17kg Carton size:48×44×79cm |
R-A-WOD-80CP | Vacuum degree:0-minus 0.08mpa Working pressure:8-10kg/cm Oil tank capacity:80L Medium Lubricating oil Φ5mm probes:1pc Φ6mm probes:2pcs Φ8mm probes:2pcs Release pressure:4kg/cm2 | Qty:2ctns/pc Carton #1: G.W./N.W:18/17.5kg Size: 47×40×80cm Carton #2: G.W./N.W: 2.5/2kg Size:43×25×25cm |
R-A-WOD-80P | Oil tank capacity:80L Working pressure:1-2.5BAR Release pressure:3BAR Φ5mm probes:1pc Φ6mm probes:2pcs Φ8mm probes:2pcs | Qty:1pcs/carton G.W./N.W:17.5/16kg Carton size:47×40×80cm |
