550 * 500 * 520mm 25KG
810*710**1100 mm 55KG
Zhuhai FOB price: 2600USD / PCS
First, the main technical parameters of the product are as follows:
Second, the main product accessories are as follows:
| Location parameter | Accuracy (center value) | Accuracy range | Maximum measuring range |
| Display accuracy and measurement accuracy | ±0.01°/0.01mm | Measurement repeatability±0.01°or0.01mm |
| Toe | ±0.015° | ±0.01° | ±30° |
| Dip angle | ±0.025° | ±0.01° | ±30° |
| Kingpin inclination | ±0.025° | ±0.01° | ±15° |
| Kingpin inclination | ±0.025° | ±0.01° | ±20° |
| thrust angle | ±0.015° | ±0.01° | ±6° |
| Maximum turning angle | ±0.015° | ±0.01° | ±30° |
| Recession angle | ±0.015° | ±0.01° | ±6° |
| Tread | ±0.25cm | ±0.01° | 3000mm |
| Wheelbase | ±0.25cm | ±0.01° | 8000mm |
| diagonal | ±2mm | ±0.3cm | 12000mm |
| Rolling radius | ±2mm | ±0.3cm | 700mm |
4. Standard accessories are as follows:
Second, the main product accessories are as follows:

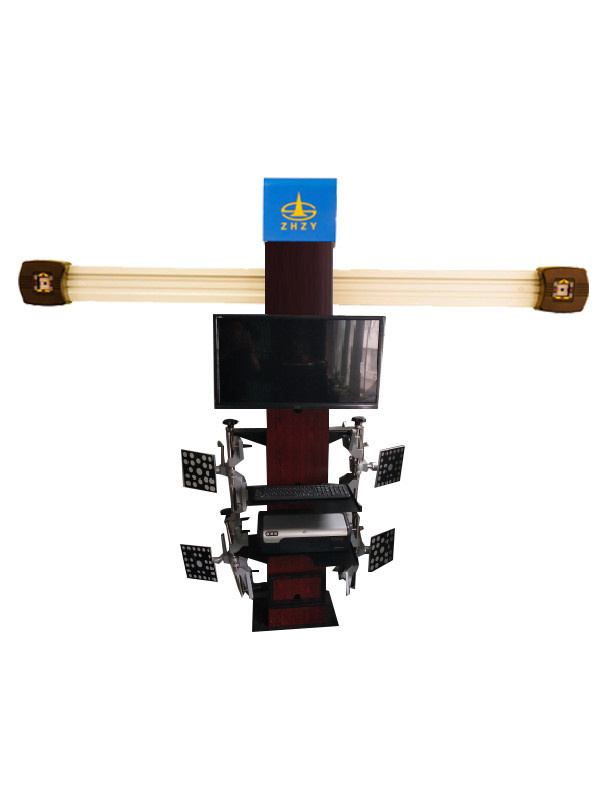

1. Beam assembly (including installed two cameras, lamp board, lens assembly, camera cover, alumina beam, column bracket and lamp board wiring harness and transformer and camera USB harness assembly) 1 matching;
2. Column assembly: aluminum alloy side (300 * 150 * 2200 * 4 (thick): mm,
3. Column seat: a;
4. Column hat: one;
5. Clamp support: 4 pieces;
6. Microcomputer host: one,
7. 32-inch monitor: one
8. Four-point fixture: four
9. Target board: four
10. Car steering wheel lock a package
11. Brake car brackets a support.
12. Corner plate: two | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
5. main features of the product
0.1) camera reaction speed, low temperature performance and good, can be at about 30 degrees Celsius low temperature work, cart time only 3S, camera speed is 30 pictures per second speed
0.2) reflective panels over sight range, within 12 meters or so within the scope of the target, can be extended vehicle detection;
0.3) measuring accuracy in the industry first-class;
0.4) software supports a variety of reflective patterns;
0.5) products have been certified by ISO quality system and exported to EU CE certification;
0.6) Guan Jian reflector plate using four plate interchangeable type, can be divided into about, including any machine on the plate can be interchangeable, without calibration
0.7) computer attached to 3D operation screen, easy to operate. It has the function of self installation and operation guide.
0.8) software operation is simple, easy to use. Intuitive 3D display
0.9) National UNPROFOR, remote service system;
10.) all over the country are equipped with after-sales service network, remote technical support
11.) product regular return visit system. Continuous innovation, once a year, data free updates of data packets
12) the product is specially designed for the trench type, with a lower display to facilitate data viewing.
13) manufacturers free training staff
14) dynamic calculation of body parameters is not affected by the unevenness of the lifting machine
15) automatic calculation of body parameters and rolling, compensation of body parameters
16) software intuitive response to the four wheels of the car and the need to solve the problem of repair
The above products need matching printer, notebook computer, nonstandard display size and tablet computer as the accessories.
