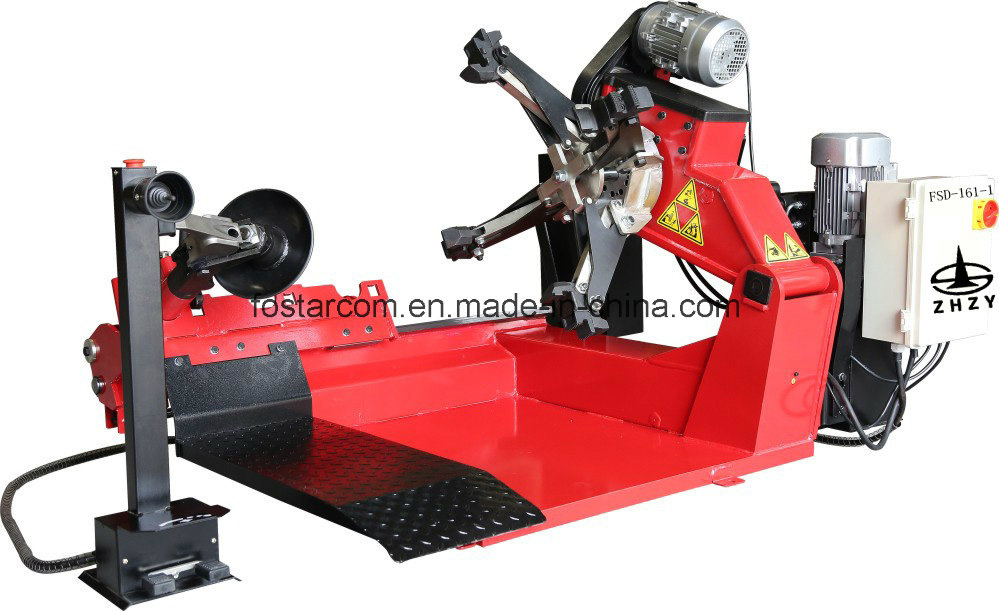

Truck Tire Changer Fsd-161

Name: Truck Tire Changer Fsd-161
Brand: ibuyautoparts.com
SKU: 730679682
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 3450-3500/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Item name: truck tyre dismounting machine
Item number: ZHZY-161
Origin: Zhuhai
Registered trademark: Zhuhai hawk (ZHZY)
technical parameter
Suitable for flange: 13 "-27""
Maximum wheel weight: 1500kg
Maximum wheel diameter: 1600mm
Maximum wheel width: 780mm
Working pressure: 130bar
Power source: 380V
Gear box motor power: 1.5kw
Hydraulic pump motor power: 1.5kw
Net weight: 630kg
Scope of application:
This product applies to flange 13, "-27"".
Product features:
All kinds of trucks and passenger tires can be assembled and disassembled.
Product performance:
1. use movable low voltage control handle for operation. The console is light and easy to design and easy to move.
2. operating voltage 24V, safe and stable.
3. the universal assembly arm is provided with an oscillating assembly disc and assembly hook.
4. the tool support, lifting arm and clamp are all hydraulically driven.
5. stepless adjustment of clamping force.
6. the guide rail adopts the integral welding processing technology, eliminates the deformation due to welding deformation, ensures the accuracy of the rail, and makes the operation more stable.
Product quality:
This product reaches the ISO9001-2008 quality system standard and the European Union quality standard, obtains the export European Union CE authentication certificate.

Prod Model:	fsd-161
Colour:	Red, Yellow, Green, Blue
Certification:	ISO
Condition:	New

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
