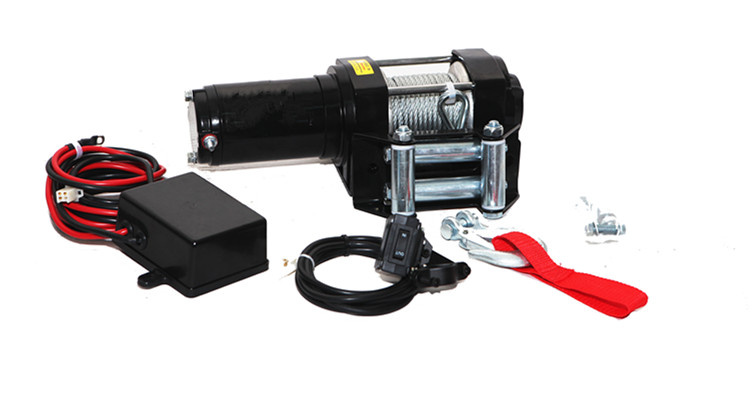

Universal Design Powerful ATV Electric Winch with 3000 Lb Pulling

Name: Universal Design Powerful ATV Electric Winch with 3000 Lb Pulling
Brand: ibuyautoparts.com
SKU: 838574945
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 40-47PCS
Min Order:	36PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Portable winch with powerful pulling ,high-performance Permanent magnet DC motor . Steel gear with single gear driven train design ,run smoothly with low noise &low amps ,excellent performance , you are stuck when you are on off-road , Let's us get you out of it !
3000 LBS Features and Specifications :
Part Number : XM-XA806
Pulling rate : single line 3000lbs(1360kg)
Motor: DC 12 V 1.2hp/0.9kw permanent magnet
Braking action: Dynamic
Clutch: Sliding ring gear
Gear train : Planetary gear
Gear ratio: 153: 1
Switch: Wire remote control with mini rocker handbar , IP67 separated Solenoid with quick connector
Fairlead: 4-way roller fairlead & Mounting plate included
Steel cable: 4.8mm x 12.5 m
Weight: 22 lbs (10kgs)
Overall dimension: 12.8" x 7.11" x 4.18" (326mm x 180.5mm x 106.2mm)

Prod Model:	XM-XA805
Pulling:	3000 Lb
Durable Cycle:	10000 +
Size:	Compact Design
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Certification:	RoHS
Pull Direction:	Forward and Backward
Working Voltage Of Electric Winch:	12 or 24 V

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
