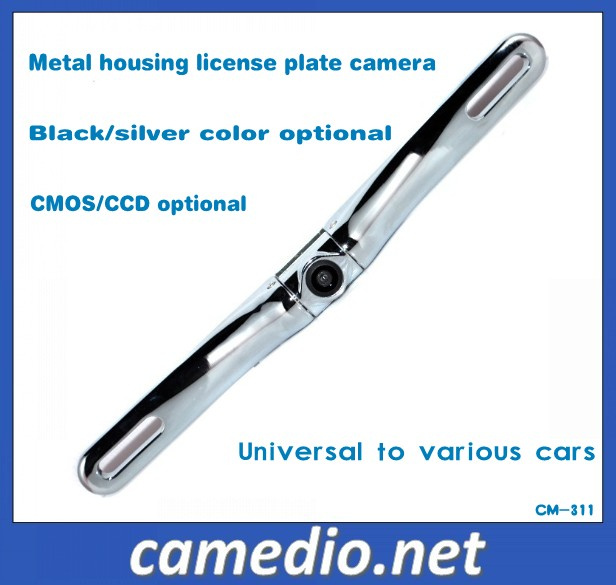

1)Exquisite high cleass metal housing design ,
2)waterproof,and day/night vision
3)Wide viewing angle 170 degree
4)Color of Tarnish and silver optional
5)4 kinds of image sensors available:PC1030 420TV lines CMOS, PC3030 480TV lines CMOS, MT9V136 Analog CCD 480TV lines, PC1089 520TV lines CMOS (CCD level)

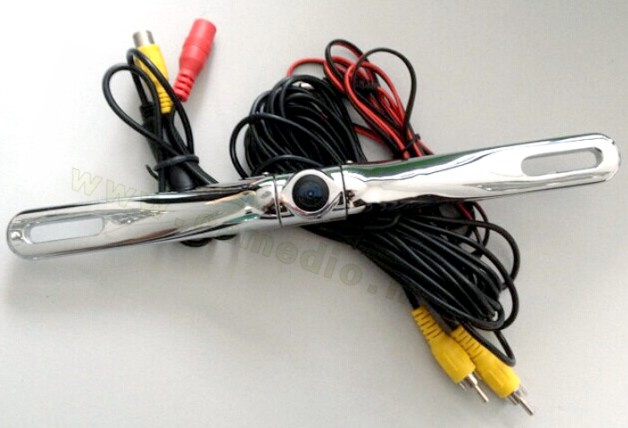

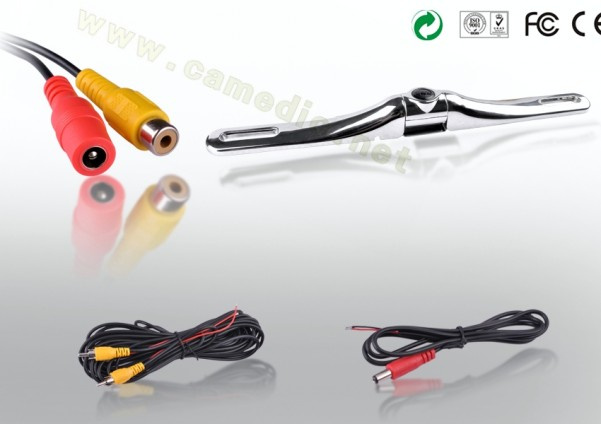

****1/4 CMOS Night vision universal license plate backup camera The rearview camera mounts to your rear license plate and sendsvideo signal to a color monitor,
that you position on your dashboard or sun visor up to 50 ft.away!
The camera offers 170 degree viewing angles for an expanded view.
LED infrared lights allow you to see behind you even in the darkest conditions.
Works with all 12V DC electrical systems.
Installation Guides:
1. Get out the license light;
2. Get the rear view lens lines across the license light original position;
3. Fasten the camera with the buckle which place in the two sides of the camera;
4. Connect the lens built-in license light power lines to the original license light power lines;
5. Connect the reverse lens switching lines;
6. Connect the camera's signal line to the signal extension line;
7. Connect the car's reverse light line to camera's video cable;
8. Check if all lines are correct connected and arranged;
9. Debug the working effects of the camera and the license light;
10. Cover the car trunk. Finished.

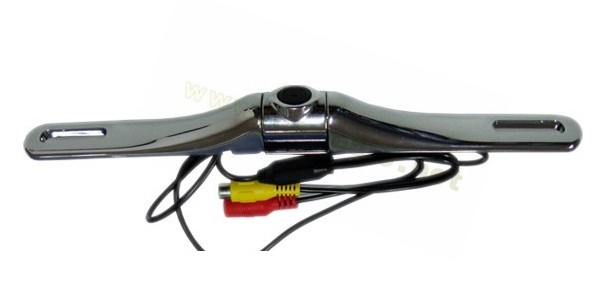

Black color :
Specifications for different image devices| A. PC1030 (parking guide line) |
| Image device: PC1030 | Resolution: 420 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Video output: 1.0 VP-P,75 OHM | Operation temperature: -20ºC - 70ºC,RH 95% MAX |
| Effective pixels: 648×488 pixels | Gamma consumption: 0.45 | Storage temperature: -40 - 85,RH 95% MAX |
| Electronic Shutter : 1/60-1/5000 | White balance: auto | Waterproof: IP67/68 |
| |
| B. MT9V136 (parking guide line) |
| Image device: MT9V136 | Resolution: 480 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Video output: 1.0 VP-P,75 OHM | Operation temperature: -20ºC-70ºC,RH 95% MAX |
| Effective pixels: 720x576/480 pixels | Gamma consumption: 0.45 | Storage temperature: -40ºC-85ºC,RH 95% MAX |
| Electronic Shutter: 1-1/10000 | White balance: auto | Waterproof: IP67/68 |
| |
| C. PC1089 (parking guide line) |
| Image device: PC1089 | Resolution: 520 TV lines | Power supply: DC 12V |
| TV system: PAL/NTSC | Dark Signal: 46.7 mV/sec @60ºC | Operation temperature: -40ºC-70ºC,RH 95% MAX |
| Effective pixels: 765×652 pixels | Sensitivity: 9.67 V/Lux.sec | DynamicRange: 63.7 dB |
| Scanning system: 2:1 interlace | Waterproof: IP 67/68 | SNR: 46.4 dB |
| |
| D. Color Sony CCD |
| Image device: 1/3 "Sony CCD | Resolution: 480 TV lines | Power supply: DC 12V |
| TV System: PAL/NTSC | Sensing Area: 4.9X3.7 mm | Horizontal Sync.Frequency: 15.625/15.734 KHz |
| Video Output: 1Vp-p,75Ohm | S/N ratio : Better than 48dB | Pin lens: F=1.9mm/F=2.0 mm |
| Waterproof: Ip67/68 | Operating Temperature( o C): -20~+75(RH95% Max.) | Angle of view: 170 ° |
