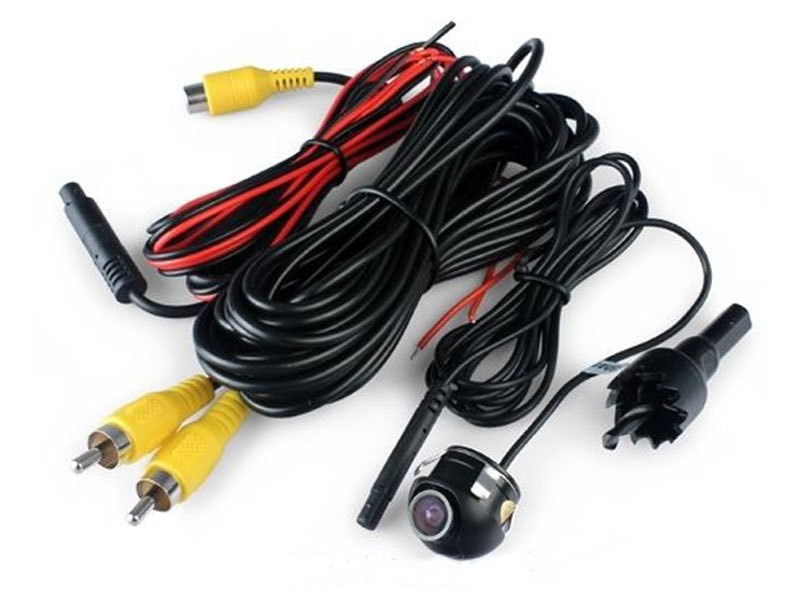

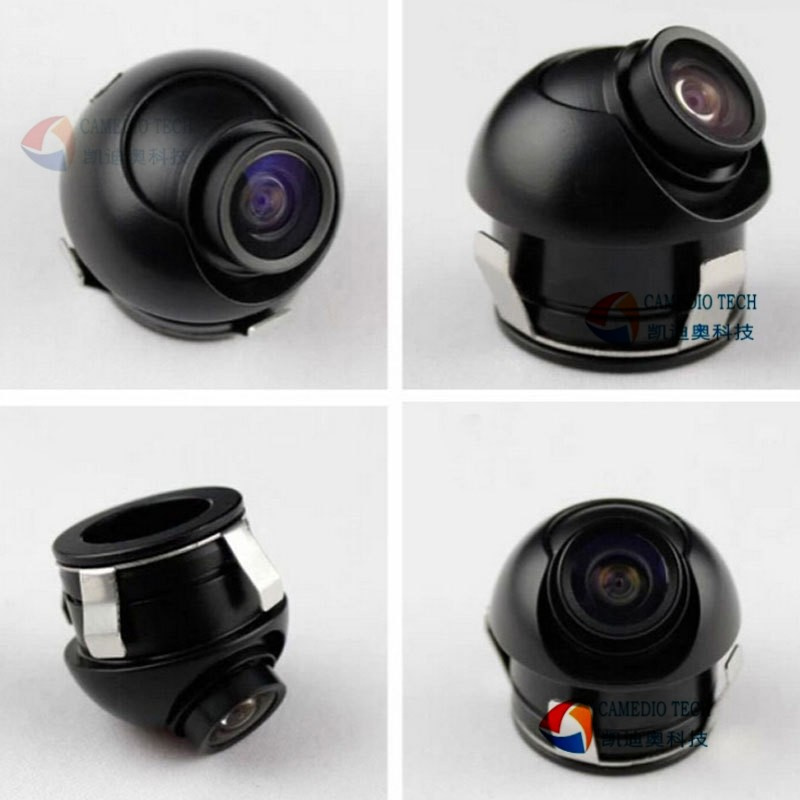

1)360 degree rotatable car camera , side view car camera, mirror side view car camera , rear view car camera.
2)Wide viewing Camera angle :170 degree
3)Image sensor optional: PC7070 480TV lines, MT9V136 480TV lines CCD.

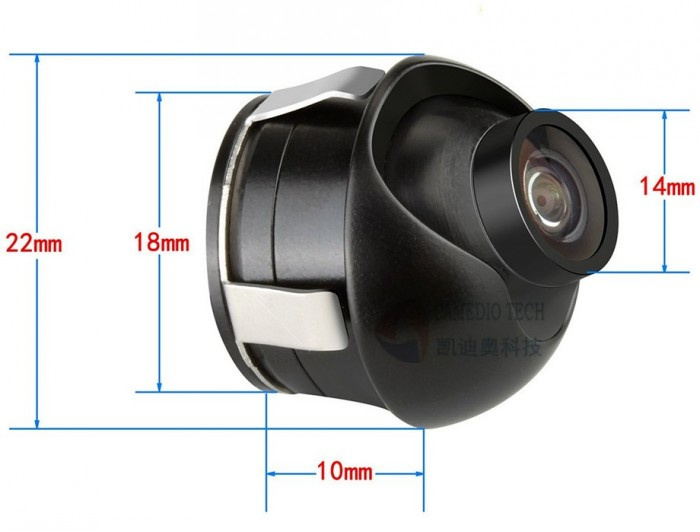

4) Diameter:18.5mm /22.5mm optional
5) Parking distance lines on/off switch optional
6) Mirror image&original image switch optional
Basic feature:
1. PC1089 CCD, MT9V136 analog CCD, PC7070 CMOS optional
2. High definition, 480TV LINE CMOS in default
3. Waterproof IP68
4. Mini type: OD=2.2mm/18.5mm optional
5. Rear/Front/Side view
Quality Assurance
1. Aging test
2. Waterproof test
3. High-and-low temperature test
Specification:
Image sensor: PC7070 (standard one in default) 1. Effective pixels: 682*504 pixels 2. Video output: 1Vp_p± 10% 3. Scanning system: 2: 1 interlace 4. Minimum illumination: 0.01 Lux/F=1.2(0 Lux with IR on) 5. Operation temperature: -20° C - 75° C, RH 95% MAX 6. TV system: PAL/NTSC 7. Sensing area: 3.8 mm *2.9 mm 8. SNR: >47.2dB 9. Lens angle: 135° /170° 10. Resolution: 480 TV lines 11. Shutter speed: 1-1/10000 12. White balance: Auto 13. Waterproof: IP67/68 14. Power supply: Analog: 2.8V, HVDD: 2.8V, CVDD: 2.8V 15. Working temperature: -20° C - 70° C, RH 95% MAX Specifications for different image devices:| Image Sensor | Color CMOS PC7070 | Color MT9V136 | Color PC1089K |
| TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixels | 680*504Pixels | 720*576/480Pixels | 720(H)*652(V) |
| Horizontal resolution | 480TVL | 480TVL | 500TVL |
| Sening area | 4.08mm*3.12mm | 3.584mm*2.688mm | 3.584mm*2.688mm |
| Shutter speed | 1/60-1/5000 | 1-1/10000 | 1-1/10000 |
| Minimum Illumination | 0.05lUX/F=1.2(OLux with ON | 0.01Lux/F=1.2(OLux with OR ON) | 0.01Lux/F=1.2(Olux with OR ON) |
| Video output | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm |
| Power Supply | DC12V | DC12V | DC12V |
| Operating temperature | -20°C~75°C,RH 95%MAX | -20°C~75°C,RH 95% MAX | -20°C-75°C,RH 95% MAX |
| Storage temperature | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX |
| Lens angle | 170° | 170° | 170° |
| Waterproof | IP68 | IP68 | IP68 |
| White Balance | auto | auto | auto |
Shenzhen Camedio Technology Co., Ltd. Is a professtional manufacturer of Car electronical products, which is located in Shenzhen, the center of electronic products in China. Our mainly products include car camera, car monitor, 2.4GHz Wireless system, rear view camera, parking sensor, rear view system etc.
Camedio Tech has been in these business lines for about 5 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions. Up to now, Our company has been dedicated to the development, design and production of a wide rang of standard and customized car electronics.
We are always trying our best to benefit our customers and to provide our customers with quality products and best service, we have professional teams of designing, production and QC. Many of them are skillful and experienced engineers. We have the competitive price based on high quality and with an excellent after sales service and a series of warranty service to benefit our customers, all those make us won good reputation and respect in the domestic and oversea markets.
"Quality, Reputation and Service come First" is the key to Camedio success. The trust of customer at home and abroad has been gained for the reliable performance and smart design of the product of company.
Welcome for your valuable inquiry and visiting our company at any time!
