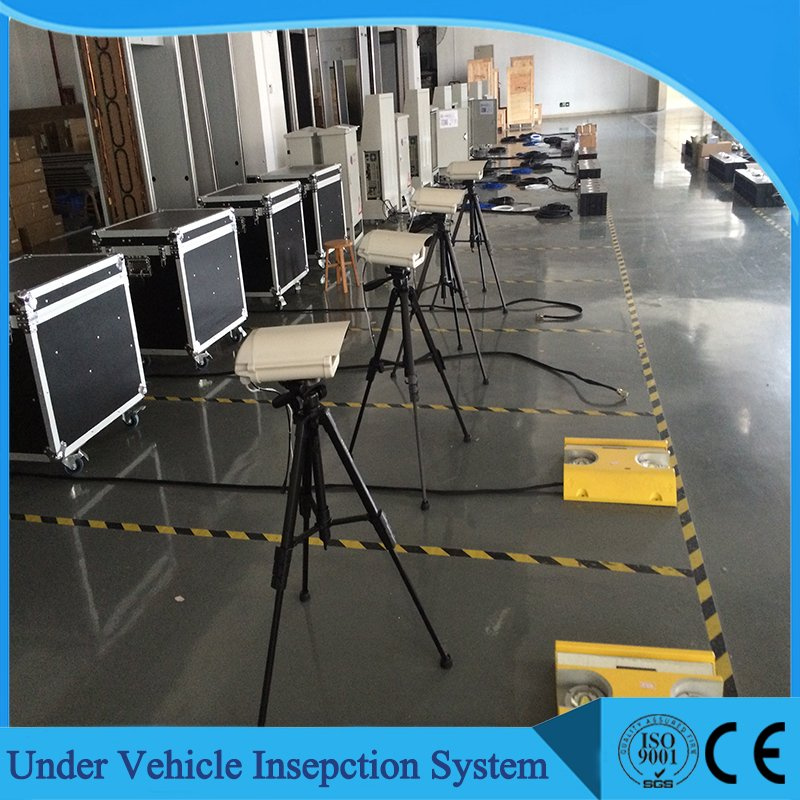

Under Vehicle Survelliance Inspection Mobile System for Vehicle Checking Equipments
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Under Vehicle Survelliance Inspection Mobile System for Vehicle Checking EquipmentsParameters:
1. Store or load time: <1 second;
2. Vehicle Image local magnification: > 2 times;
3. Vehicle Image scaling: 16 times;
4. Vehicle image display mode: large format transverse;
5. Vehicle image storage format: BMP or JPEG;
6. System interface language: English (can be customized);
7. Display resolution: 1920 * 1080P
8. Communication interface: RS232/RS422;
9. Scene image display: ≥1 channel
10. Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image
11. Scan mode: linear scanning, the ground sensor coil trigger;
12. Vehicle speed: 1-60km/h, suggest speed : less than 30km/h
13. View angle: 175 degrees
14. Image Longitudinal resolution: 2048 pixels CCD;
15. Scanner connecting cable: 100 meters (can be customized)
16. Lighting components : Four single sealed LED surface light source ;
Life : 100,000h
17. Under Vehicle image scanner with a unique open-wide field scan design;
18. Working voltage: DC24V
19. Power Supply:AC110V-240V/50-60Hz
20. Structure design:single sealed design;
21. Loading weight: 30 Tons
22. Scanner size: 1200*350*210mm
23. Weight: 180kg
24. Environment temperature: -40 degrees - +70 degrees
25. License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

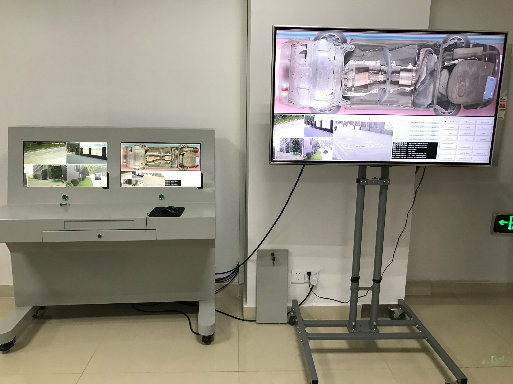

Computer:
1. Display:22 inch color LCD Screen
2. CPU:INTEL core Quad-Core Processor
3. Motherboard : dedicated motherboard
4. Memory : DDR3 , more than 4GB
5. Hard disk : 500G high-speed hard disk
6. Graphics card : DDR3, 192BIT independent graphics
7. Appearance: stainless steel composite material
8. Working current: 3A
9. Working temperature : -20 ºC ~ 55 ºC Packaging & Delivery
Packaging Details:
Wooden crate Dimension L*W*H (mm)
850*600*850
Delivery Detail:
in 5 days after got payment
Company instructions
ABOUT US
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.
OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.

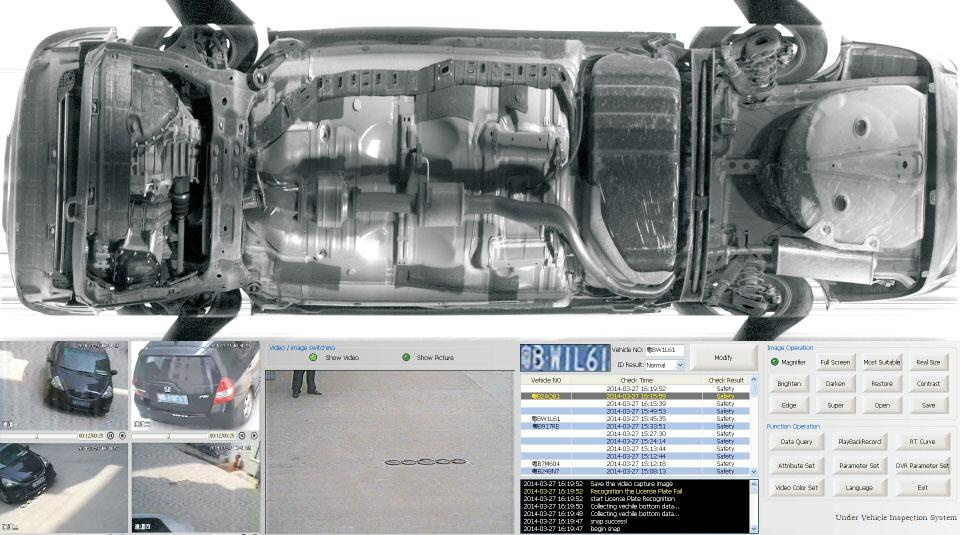

Software interface
Prod Model: |
UVSS300M |
Uvss Sensor: |
Line Scan CCD |
Illumination: |
LED |
Package: |
Strong Ploywooden Case |
Display Resolution: |
1920 * 1080P |
Communication Interface: |
RS232/RS422 |
View Angle: |
175 Degrees |
Interface: |
BNC\VGA\HDIM |
Compression Format: |
MPEG |
Certification: |
SGS |
Interface Display: |
OEM |
Brand: |
Uniqscan |
About us
Shenzhen Zhongangaoke Electronics Co., Ltd are a professional security scanner equipment manufacturer, specialized in development and research in under vehicle system, X-ray imagine technology, metal detection technology, explosive detection, liquid detection and relative security services.
OUR TECHNOLOGY
We owns all of the intellectual property rights (ipr) to its core technologies, and have a experience engineer, sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house … etc. Wins a good reputation from end users from China and overseas.
OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services
OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility.
