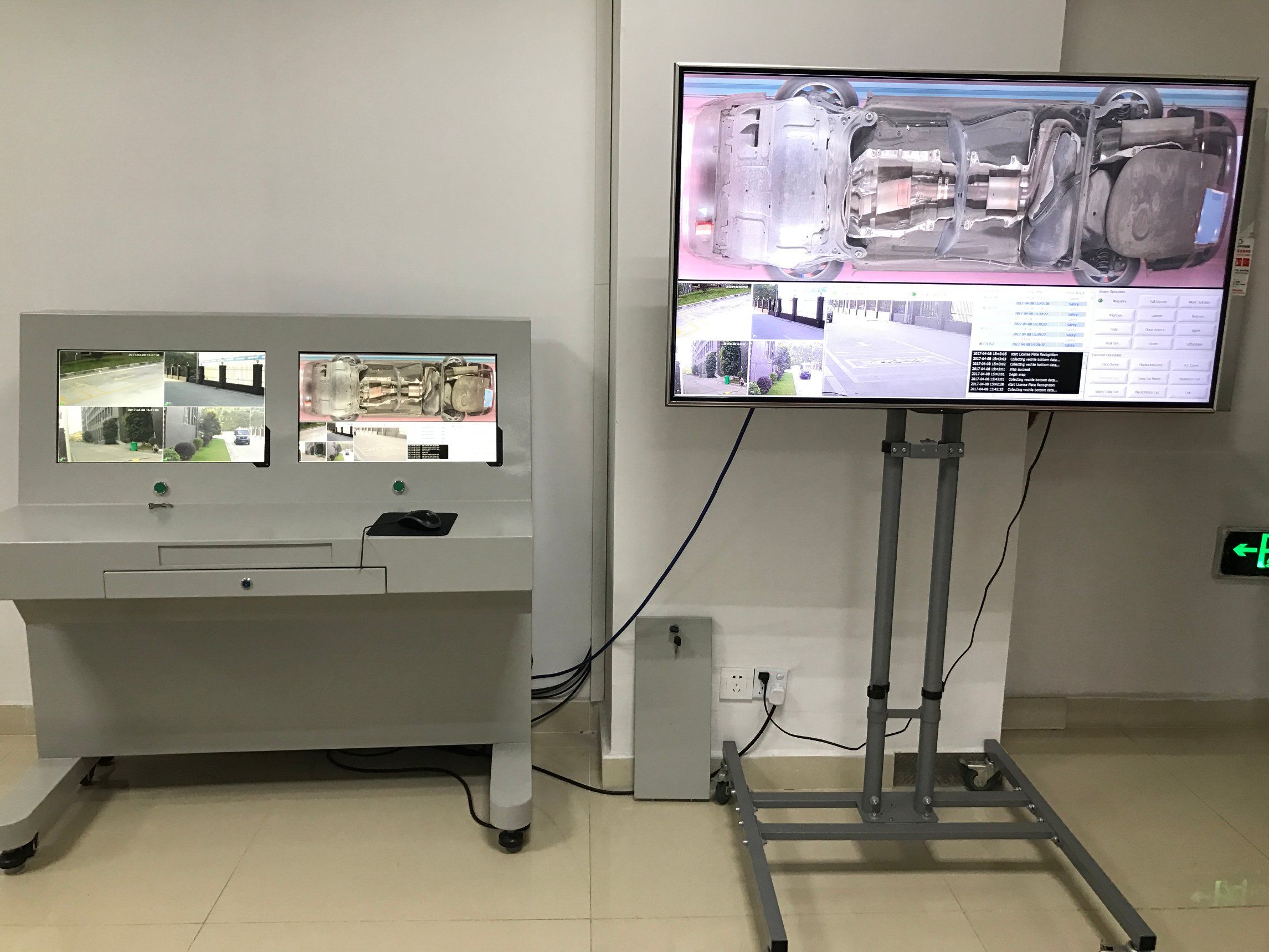

High Safety Anti-Terrorism Uvss Under Vehicle Surveillance Scanning Inspection System

Under Vehicle Surveillance System / Under Vehicle Inspection System

To find the threats/contraband beneath vehicle

Under Vechicle Surveillance System/Under Vehicle Inspection Model: UVSS300F

-------------------------------------------------------------------------------------------------------------------------------------

Features:

1 Multi entrance management model, management, and statistics of entering and exiting vehicles
2 Auto digital line scan, high-resolution undercarriage imaging.
3 High automation, easy to be used
4 Applicable to variety of vehicles, wide vision.
5 Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
6 Undercarriage image can be stored, retrieved, searched or compared with other images.
7 Avariety of image processing methods: Enlarge, stretching and cutting.
8 (Optional)ALPR-Automatic License Plate Recognition and RFID technology. Associative storage of various vehicle information and undercarriage images.

---------------------------------------------------------------------------------------------------------------------------------------

Embedded Screening Part:

1 Camera: Sensor: Line scans CCD, Resolution: 5000*2048 pixels, Power Supply: 24VDC, 3A
2 Illumination: LED, Power Supply: 24VDC, 150W
3 Size: 1200mm x 350mm
4 Operating Temperature Range: -20 degree to +70 degree

---------------------------------------------------------------------------------------------------------------------------------------

Controller:

1 Input: 2 channels induction coil
2 Output: 1 Channel switch type 12VDC
3 Communication port: RS485, Ethernet(Optional)
4 Operating Temperature: -10 degree to 55 degree

-------------------------------------------------------------------------------------------------------------------------------------------

System Host:

1 Brand: Uniqscan (SYM76941VGGA)
2 CPU: Intel(R)Celeron(R)CPU
[email protected] 2.59 GHz
3 Memory: 2G( optional 4G)
4 Graphics: 512M
5 Hard Disk: SATA2 Hard Disk 500G
6 Dual LAN (At least one Intel Gigabit)
7 USB2.0 (Up to 2 pieces)
8 Monitor: 22inch LCD, resolution up to 1920*1080
9 Scene Video Record: 4 channel, Compression
Algorithm of scene video: H264

------------------------------------------------------------------------------------------------------------------------------------------

Advantage of UVIS under vehicle scanner:

1 No need to park vehicle, can bear speed below 30km/h
2 Whole image display ion monitor
3 Operator can zoom and save image
4 Uniqscan Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.
5 It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
6 UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
