Ultrasonic Visiable Detection System for Truck Back Detection Installtion

Name: Ultrasonic Visiable Detection System for Truck Back Detection Installtion
Brand: ibuyautoparts.com
SKU: 836020975
Availability: InStock
Rating: 4.5 (97 reviews)

Price:	US $ 67-74.4/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Ultrasonic visiable detection system for truck back detection installtion

• 4 sensor system
• 12-24 Volts
• 2.5m detection range outer sensors 2.5m/1.5m(selectable via dip switch)
• Graduated visual and audible distance warning display
• Underslung and flush-mount fixings included

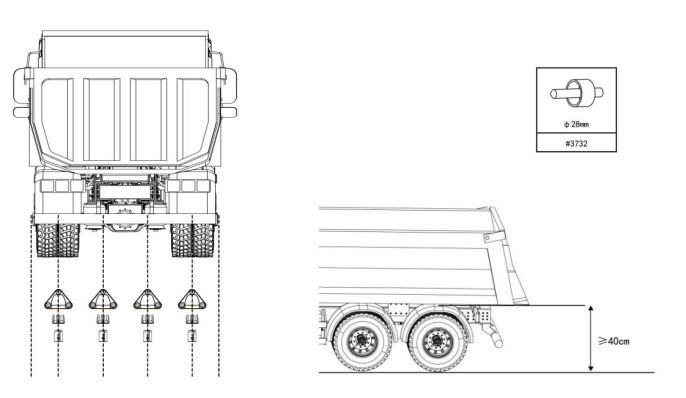

• 40cm compensation range for sensors fitted inboard of vehicle rear (selectable via dip switch)
• 1 year warranty

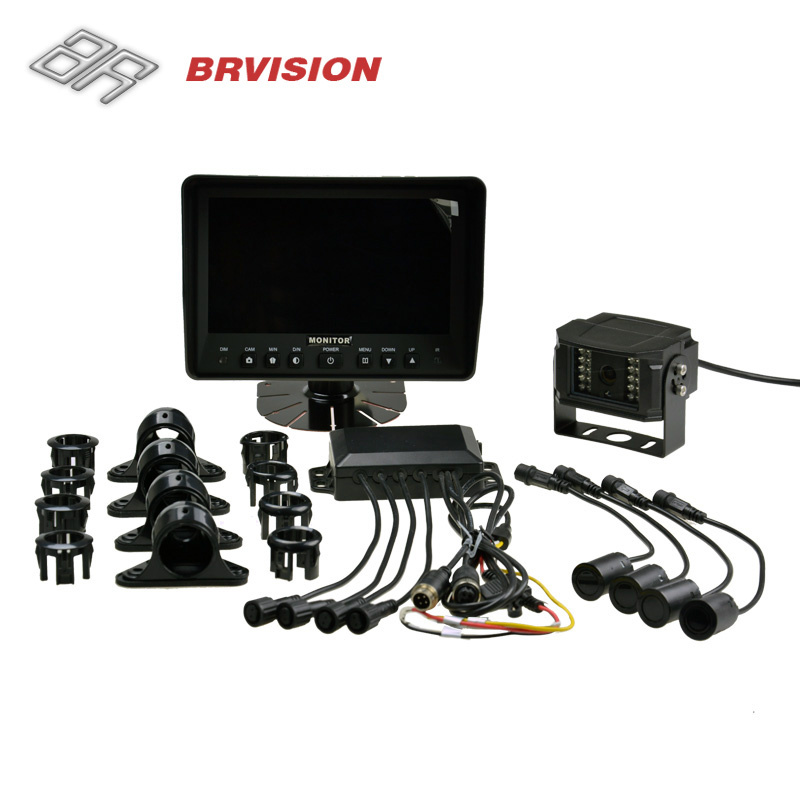

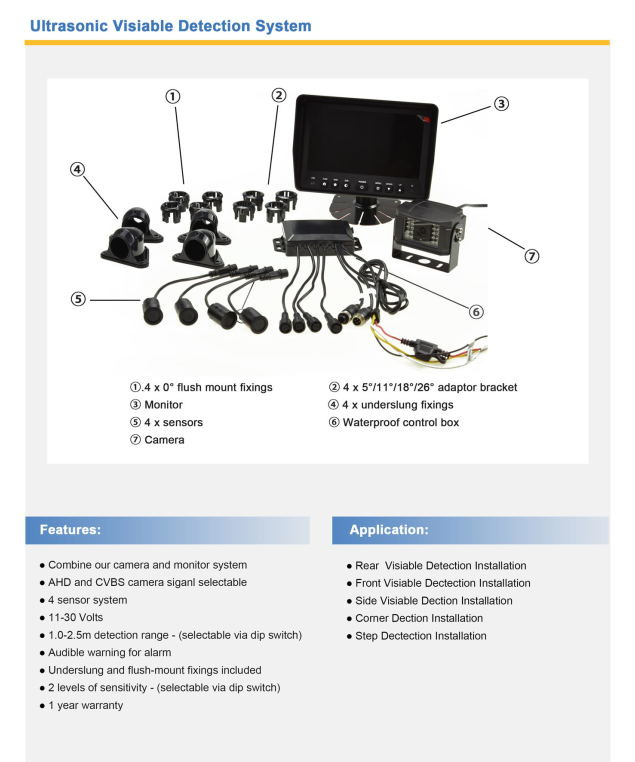

Contents Option:
• 4 x sensors •1 x 7" LCD monitor (BR-TM7001)
• 4 x 0° flush mount fixings •1 x 15m monitor cable(BR-TC15)
• 4 x 11° flush mount fixings •1 x rear camera(BR-RVC16)
• 4 x underslung fixings • 1 x 7m camera cable(BR-TC7)
• 1 x Waterproof control box
• 4 x 2.5m sensor cable

1 x Φ28mm drill, 16x screw, 10x plastic tie

The sensor work when ignition:
The sensor and camera show on the monitor when reversing.
The sensor alarm when detect an object within 2.5M.
The sensor work when reversing:
The sensor alarm when detect an object within 2.5M.

Prod Model:	BR-PST01-B
Kind:	Obstacle Detection Radar
Test Distance:	2.5-1.5m
Certification:	RoHS
Working Principle:	Frequency Modulated Continuous Wave
Operating Temperature Range:	-40??C~+85??C
Brand:	Brvision

BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
