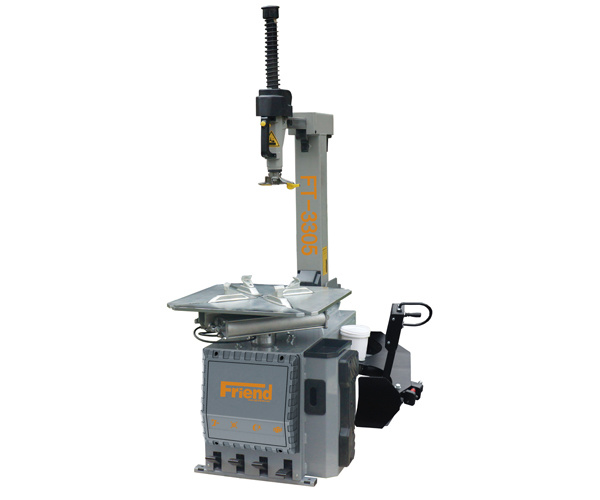

TUV-Friend FT-3305

Name: TUV-Friend FT-3305
Brand: ibuyautoparts.com
SKU: 731306902
Availability: InStock
Rating: 4.6 (25 reviews)

Price:	US $ 980-1100/Piece
Min Order:	72/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

FT-3305

Product features
The claw is made of special materials and is strong and durable.
Alloy disassembly head, wear-resistant, impact resistant, protective cover, protection wheel hub
Pneumatic shovel arm, based on ergonomics, is equipped with a control handle, which is easier to operate, and can be adjusted according to the actual tire size.
Standard diameter 75mm small cylinder, support clamp wheel hub can increase 106KG
Large cylinder pressure of 2500KG, easy separation of tires
Aluminum alloy five - way valve, durable, high reliability
Increase the thickness of the rubber pad
Pneumatic control column back tilting, automatic positioning, pneumatic dual locking function
The front face is detachable. When the chassis is broken, it is convenient to repair.

Product performance
Aluminum alloy with large plate material
Maximum tire diameter 45 "
Maximum tire width 16 "
Card size 14 "-28"
The wild card size 12 "-25"
Selected accessories: motorcycle jig: 14 "-23" ATV jig: 8 "-17"
Voltage 110V/220V/380V 1Ph/3Ph 50/60Hz
Pressure 8-10Bar
Motor 0.75KW-1.1KW
Noise <75dB

Product packaging
Size 820*960*1150mm
Gross weight 248KG
Net weight 221KG

Standard accessories
Plastic block 2 pcs
Bird head protection block 4 pcs
Plastic big plate claw protection block 4 pcs
A standard 1pc
Air gun with 1 PC
Standard oil and water separator 1 PC
Water and oil box 1 PC

The optional parts are as follows:

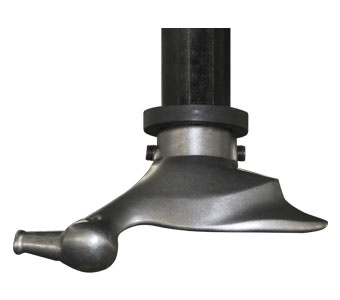

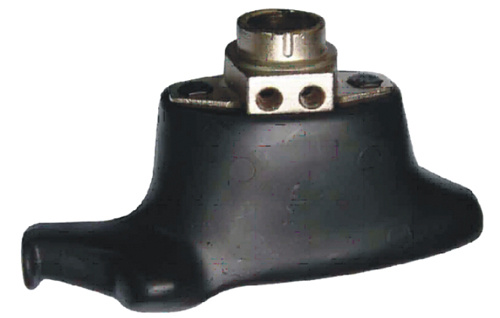

The following is the original mounting head, products strictly passed North American TUV certification system.

Prod Model:	FT-3305
Certification:	ISO
Condition:	New
