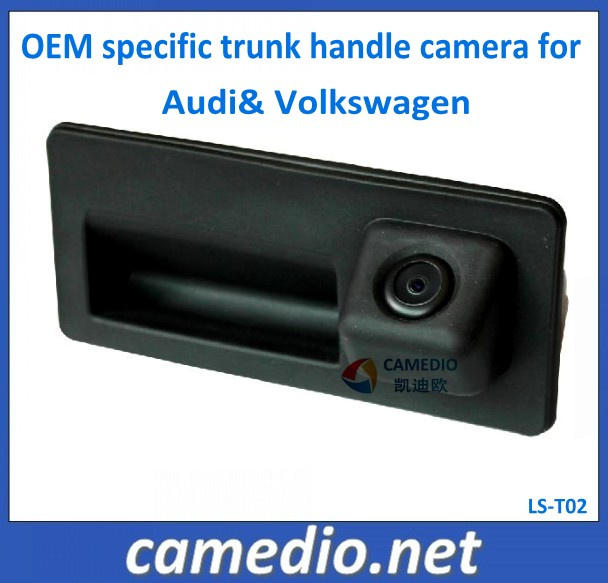

HD Waterproof Special Handle Car Camera for A4/S5/Q5/A8L/RS6
09/10 Passat/Tiguan/2012 Sigtar
1. Car camera with 20mm diametre;
2. TV system: PAL/NTSC is optional;
3. Resolution(TV Lines): 480;
4. IP rating: IP67;
5. Lens Angle(Deg): 170;
6. Power supply: 12VDC;
7. Image Sensor: Sony CCD
This section reversing camera installed in the position of the Volkswagen Audi A4L/Q5/New Passat's door handles, non-destructive installation.
Feature:
High resolution color image in low illumination enviroment
Multi-layer waterproof design, can be withstand
High-pressure water water washing and spaking High-definition, night vision, wide-angle 170 degree
Concealed installation under the license lamp
Visual warming reference line optional
Adaptive multi-brand DVD and display
Competitive advantage
1. Stable quality
2. Most competitive price
3. On time delivery
4. Good aftersale-service
5. All products are tested one by one waterproof resistance and high/low temperature resistance
6. Warranty: 12months
7. OEM, ODM welcome
Quality Assurance:
Vibration test
Salt-spray test
High-and-low temperature test
Feature and Advantage:
*style: Mini and hidden
*good waterproof and shockproof
*easy to install
*not punching, can keep the car original
*cameras are of good quality and of competitive price
*pass CE FCC ISO9001 certificate
Specification:
Water-resistant,
Anti-shock, and weather-resistant design
With
Black/silver/white outcase to fit on cars like original factory camera
Image sensor:
Color CMD
Effective pixels:
NTSC: 656 X 492
PAL: 625 X 586
Protection
Category: IP67
Resolution: 480TV
Lines
Shutter speed:
PAL: 1/50 to 1/15, 000s
NTSC: 1/60 to
1/15, 000s
S/N ratio: ≥ 48dB
Minimum
Illumination: <0.2 lux
Video output:
1.0Vp-p, 75 ohms
Nominal power
Supply: 12V DC
Reversing guard
Line: Available
There are many kinds of chips for customer option, OV7959 chip, MT9V139/MT9V136 chip, 1030/3030chip, and Sony CCD chip, and there are many other models available, welcome your inquiry and hope you can find the items which are workable in your local market.
|
Image Sensor |
Color CMOS PC1030 |
Color CCD PC3030 |
Color MT9V136 |
Color PC1089K |
|
TV System |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
|
Effective Pixels |
648*488Pixels |
728(H)*488(V) |
720*576/480Pixels |
720(H)*540(V) |
|
Horizontal resolution |
420TVL |
480TVL |
480TVL |
500TVL |
|
Sening area |
4.08mm*3.12mm |
3.584mm*2.688mm |
3.584mm*2.688mm |
3.584mm*2.688mm |
|
Shutter speed |
1/60-1/5000 |
1/60-1/20000 |
1-1/10000 |
1-1/10000 |
|
Minimum Illumination |
0.1lUX/F=1.2(OLux with ON |
0.1Lux/F=1.2(Olux with ON) |
0.01Lux/F=1.2(OLux with OR ON) |
0.01Lux/F=1.2(Olux with OR ON) |
|
Video output |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
|
Power Supply |
DC12V |
DC12V |
DC12V |
DC12V |
|
Operating temperature |
-20°C~75°C,RH 95%MAX |
-20°C~75°C,RH 95% MAX |
-20°C~75°C,RH 95% MAX |
-20°C-75°C,RH 95% MAX |
|
Storage temperature |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
|
Lens angle |
170° |
170° |
170° |
170° |
|
Waterproof |
IP69K |
IP69K |
IP69K |
IP69K |
|
White Balance |
auto |
auto |
auto |
auto |
