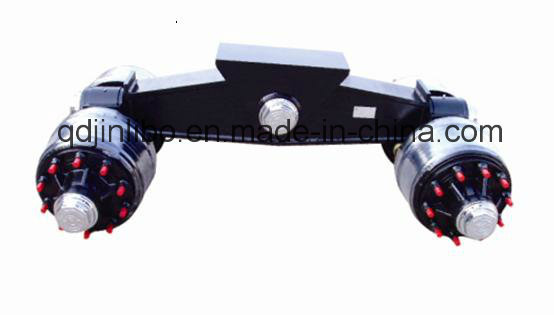

Trailer Parts Use Rigid Trailer Suspension

Trailer Parts Use Rigid Trailer Suspension
Price: US $ 5300-6400/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: trailer suspension
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Loading Weight: 45-100t
Color: Black or as Requested
Capacity: 45t-100t
Brake Size: 420*180/200
Axle Beam: Square 150*14/16
Type: Semi-Trailer

Product Description

trailer parts use rigid trailer suspension

Introduction of enterprise:
Qingdao Jinlibo Trade Co., Ltd. Has introduced sophisticated equipment from overseas to develop and manufacture semi-trailer axles and related parts. Holding ISO9001: 2000 certification for our management system, we faithfully follow the stipulations of this standard so as to guarantee high product quality.

Characteristics:
1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance premium non-asbestos brake linings, estend serbice life.
4. Easy for ABS installation.
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap habe O rings, high property for sealing.
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.

Scope of our business
1. Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
2. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
3. Landing gear
4. Fifth wheel (2'' 3.5'')
5. King pin (2'' 3.5'')
6. Semi trailer
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)


Contact information:


RIGID SUSPENSION SPECIFICATION
ModelCapacity Tonnes(T)Axle DistanceMount Height MinimumMounting Stool CentresMounting Stool LengthMounting Stool WidthBogie Track WidthOverall Width Over TyresMinimum Width Between Centre TyresRecommended Tyre Size(mm)Wheel Rim Size(mm)
KMAG45/15451220380 3501549610 57025581528902608.25*15.18ply6.50-15
KMAG60/15601220380 3501549610 57025581528902608.25*15.18ply6.50-15
KMAG707013504271750570250930329820210.00*20.18ply7.50-20
KMAG75751550457 4271702610 570255890320021410.00*20*16ply7.50-20
KMAG808015504271860570255970350022012.00*20.18ply8.50-20
KMAG100100150045720006202551000368032012.00*20.18ply8.50-20
TT100-03100155042723006202551000398062012.00*20.18ply8.50-20

Qingdao Jinlibo Industry And Trade Co., Ltd. is an enterprise primarily in exporting heavy trailer parts. We can produce many kinds of semi-trailer axle and suspension system, supply various semi-trailer parts, skeleton semi-trailer, landing gear, fifth wheel, steel wheel, brake drum, hub, kingpin, brake chamber, adjustment arm, and so on.

Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.

Jin Libo axle is your wise and beneficial choice.

Our main products.

Germany type axle: 16ton 14ton 12ton

English type axle: 16ton 13ton

American type axle 16ton 13ton

Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake

SUSPENSION

24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension. And machinery suspension(3axle and 4axle)

Product characteristics:

1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.

2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability

3. High performance premiun non-asbestos brake linings, extend service life

4. Easy fir ABS installation

5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety

6. New tight fit hub cap have O rings, high property for sealing

7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance

8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
