Popular American Semi Trailer Axle 13t 16t with Good Price
| Price: |
US $ 400-520/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

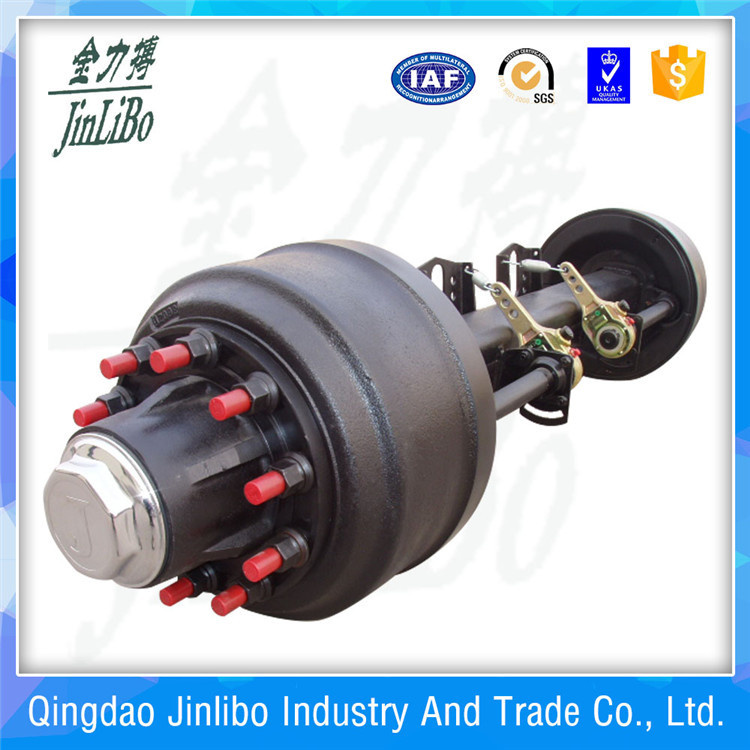

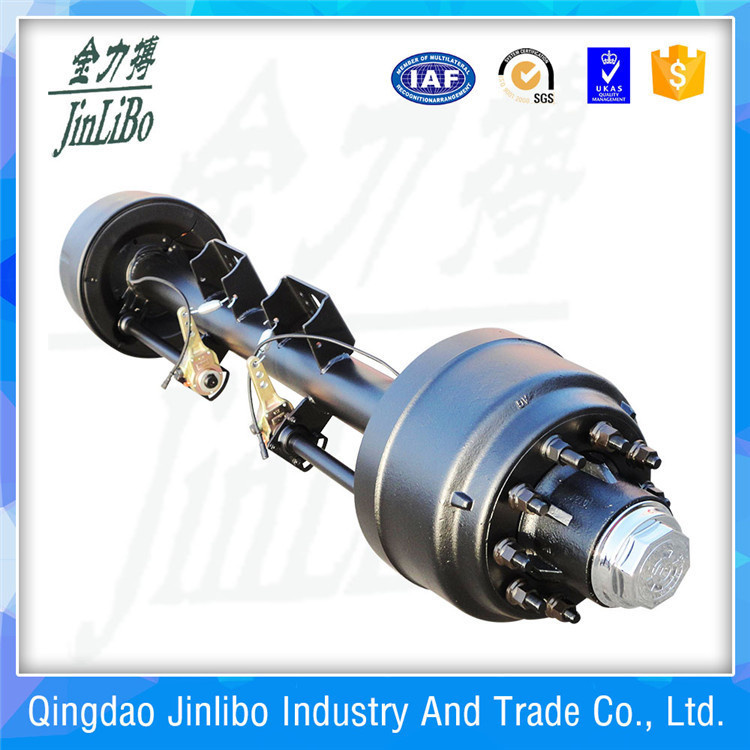

Popular American Semi Trailer Axle 13t 16t
with Good Price
ISO9001:2008 & TS16949 & SGS
Product Features1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performanc, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance premium non-asbestos brake linings, extend service life.
4. Easy for ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap have O rings, high property for sealing.
7. Grease lubrcant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO. BSF and JAP, it can meet the requirements of various wheel rims.
Scope of our business1.axles (German type axle,English type axle,American type axle,Spoke axle,ZM axle,Agriculture axle,Half axle,Axle without brake) 2.Suspension (Bogie suspension,One point suspension,Rigid suspension,Spoke suspension,Machinery suspension)3.Landing gear 4.Fifth wheel (2'' 3.5'') 5.King pin (2'' 3.5'')6.Semi trailer 7.Other axles and related parts (Low bed axle,hub,rims,spring,drum...) Products Description:| | | | SPECIFICATION FOR AXLE |
| | | | | | | | | | | | | |
| | | | | | | | | | | | | |
| AXLETYPE | BRAKE SIZE | WHEEL FIXING | | DIM D | bearing | MIN WHEEL SIZE | BEAM SIZE | AXLE CAPACITY | SPIRNG SEAT INSTALLATIONE | |
| weight |
| NO.×SIZE OF WHEEL STUD×PCD(DIMA) | WHEEL REG. DIA.(DIM B) |
|
| RNM1218I | 420×180 | ISO | 10×M22×335 | 281 | 720 | 518445 | 20" | square150 | 13t | ≤450 | 372kg |
| | | | | | | | 518445 | | | | | |
| RNM1222I | 420×220 | ISO | 10×M22×335 | 281 | 720 | 518445 | 20" | square150 | 13t | ≤450 | 408kg |
| | | | | | | | 518445 | | | | | |
| RNM1218IQ | 420×180 | ISO | 10×M22×285.75 | 221 | 720 | 518445 | 20" | square150 | 13t | ≤450 | 372kg |
| | | | | | | | 518445 | | | | | |
| RNM1218J | 420×180 | JAP | 8×M20×285 | 221 | 720 | 518445 | 20" | square150 | 13t | ≤450 | 372kg |
| | | | | | | | 518445 | | | | | |
| RNM1622I | 420×220 | ISO | 10×M22×335 | 281 | 720 | 518445 | 20" | square150 | 16t | ≤450 | 430kg |
| | | | | | | | 220149 | | | | | |
| RNM1620I | 420×200 | ISO | 10×M22×335 | 281 | 720 | 518445 | 20" | square150 | 16t | ≤450 | 420kg |
| | | | | | | | 220149 | | | | | |
| RNM1618I | 420×180 | ISO | 10×M22×335 | 281 | 720 | 518445 | 20" | square150 | 16t | ≤450 | 415kg |
| | | | | | | | 220149 | | | | | |
FAQQ1:Are you a factory? A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and theyall can help the buyers and cooperative partners to decide which products are the best choicesfor them,and all your requirements and inquires will be replyed in time. Q2:What's your Delivery Time?A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible withthe guaranted quality. Q3:What is the convenient way to pay?A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us. Q4:Which type of shipping would be better?A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we adviceto make delivery by sea.What's more, we respect your views of other transportation as well.Contact information
| Prod Model: |
trailer parts |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ABS: |
Without ABS |
| Color: |
Black or as Requested |
| Brake Size: |
420*180 420*200 420*220 |
| Capacity: |
12t 13t 16t |
| Studs: |
10*M22/8*M20 |
| PCD: |
335/285.75 |
| Cbd: |
281/221 |
| Bearing: |
518445 518445 |
| Beam: |
Square 150/ Round 127 |
| Track Length: |
1840 |
| Type: |
Semi-Trailer |

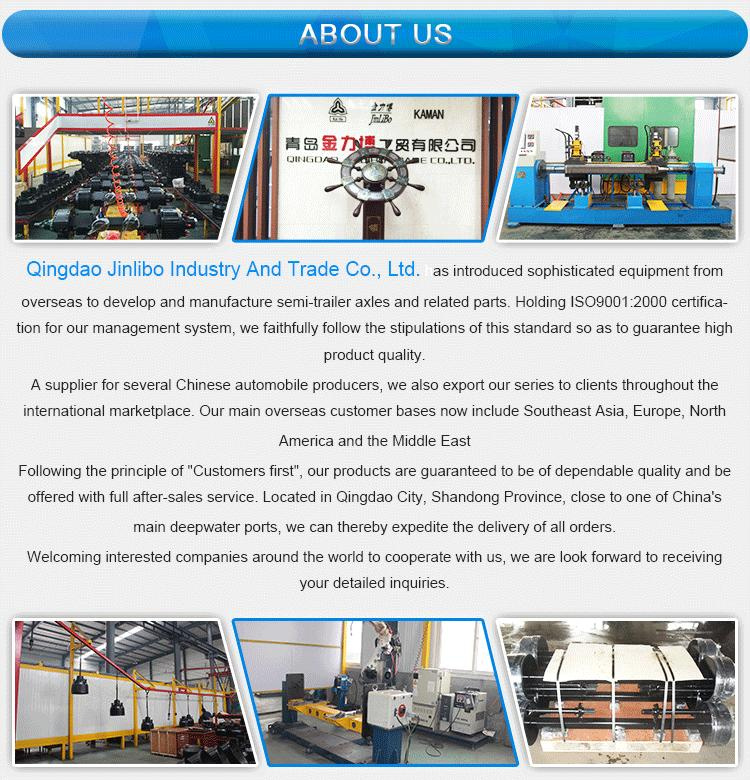

Qingdao Jinlibo Industry And Trade Co., Ltd. is an enterprise primarily in exporting heavy trailer parts. We can produce many kinds of semi-trailer axle and suspension system, supply various semi-trailer parts, skeleton semi-trailer, landing gear, fifth wheel, steel wheel, brake drum, hub, kingpin, brake chamber, adjustment arm, and so on.
Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.
Jin Libo axle is your wise and beneficial choice.
Our main products.
Germany type axle: 16ton 14ton 12ton
English type axle: 16ton 13ton
American type axle 16ton 13ton
Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake
SUSPENSION
24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension. And machinery suspension(3axle and 4axle)
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
