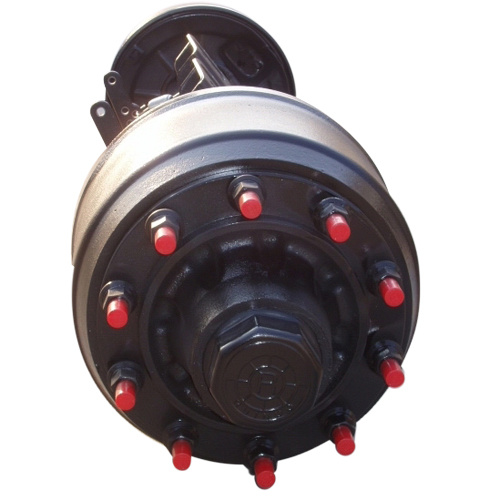

Trailer BPW Germany Type Axle with Square Tube 10 Studs
| Price: |
US $ 520-620/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
CONTACT INFORMATIONName:Miss Fay.Tel:86-186 6166 7620 Products features:1.Special heat-treat,low alloy steel axle beam,it has the vitues of good synthetic
performance,strong loadabilityand lower self weight;2.High quality alloy solid iserted spindle,through wholy heat treatment,provide
superior fatigue capacity;3.High performance premium non-asbstos brake linings,extend service life;4.Easy for ABSinstallation;5.Camshaft,maching with special seals,can ensure no entry of the grease into the brake
drum,more safety;6.New tight fit hub cap have O rings,high property for sealing;7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance;8.Full range of stud fixing such as ISO,BSF,and JAP,it can meet the requirements of various
wheel rims. And our after-sale service also could be guaranteed, customized is available.Customer also can send us your specifications or drawings you need.Certification:ISO9001:2000 / TS16949High quality and best price We are factory.not trading company.
We can supply many kinds of Germany axle for semitrailer, high quality and reasonable price

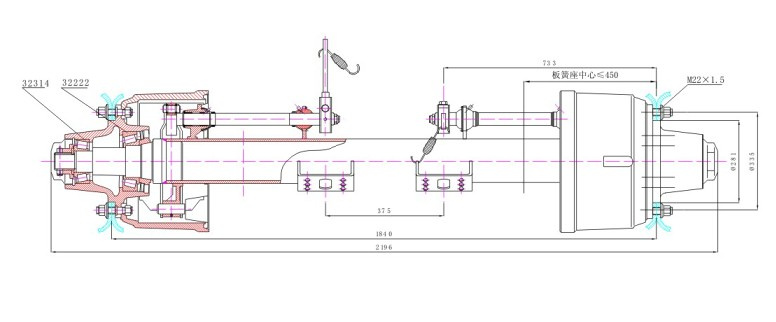

| GERMANY TYPE AXLE SPECIFICATIONS |
| AXLE TYPE | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD (DIM A) | WHEEL REG.DIA.(DIM B) | DIM D | BEARING | MIN WHEEL SIZE | BEAM SIZE | TRACK LENGTH(DIM C) | AXLE CAPACITY | SPRING SEAT INSTALLATION | WEIGHT |
| KMD1218I | 420X180 | ISO | 10xM22x335 | 281 | 711.5 | 33213 33118 | 20´´ | square150 | 1840mm | 12T | ≤450 | 370KG |
| KMD1218J | 420X180 | JAP | 8xM20x285 | 221 | 711.5 | 33213 33118 | 20´´ | square150 | 1840mm | 12T | ≤450 | 370KG |
| KMD1220I | 420X200 | ISO | 10xM22x335 | 281 | 721.5 | 33213 33118 | 20´´ | square150 | 1840mm | 13T | ≤450 | 397KG |
| KMD1418I | 420X180 | ISO | 10xM22x335 | 281 | 733 | 33215 32219 | 20´´ | square150 | 1840mm | 14T | ≤450 | 400KG |
| KMD1420I | 420X200 | ISO | 10xM22x335 | 281 | 743 | 33215 32219 | 20´´ | square150 | 1840mm | 14T | ≤450 | 417KG |
| KMD1618I | 420X180 | ISO | 10xM22x335 | 281 | 723 | 32314 32222 | 20´´ | square150 | 1870mm | 16T | ≤450 | 450KG |
| KMD1620I | 420X200 | ISO | 10xM22x335 | 281 | 733 | 32314 32222 | 20´´ | square150 | 1870mm | 16T | ≤450 | 459KG |
| KMD1622I | 420X220 | ISO | 10xM22x335 | 281 | 733 | 32314 32222 | 20´´ | square150 | 1870mm | 16T | ≤450 | 465KG |
| Prod Model: |
germany style axle |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
SGS, ISO/TS16949, CE |
| ABS: |
Without ABS |
| Tent Type: |
Complex |
| Axle Number: |
1 |
| Tire Number: |
2 |
| Condition: |
New |
| Loading Weight: |
12t 14t 16t |
| Color: |
Black or as Requested |
| Type: |
Semi-Trailer |
Qingdao Jinlibo Industry And Trade Co., Ltd. is an enterprise primarily in exporting heavy trailer parts. We can produce many kinds of semi-trailer axle and suspension system, supply various semi-trailer parts, skeleton semi-trailer, landing gear, fifth wheel, steel wheel, brake drum, hub, kingpin, brake chamber, adjustment arm, and so on.
Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.
Jin Libo axle is your wise and beneficial choice.
Our main products.
Germany type axle: 16ton 14ton 12ton
English type axle: 16ton 13ton
American type axle 16ton 13ton
Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake
SUSPENSION
24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension. And machinery suspension(3axle and 4axle)
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
