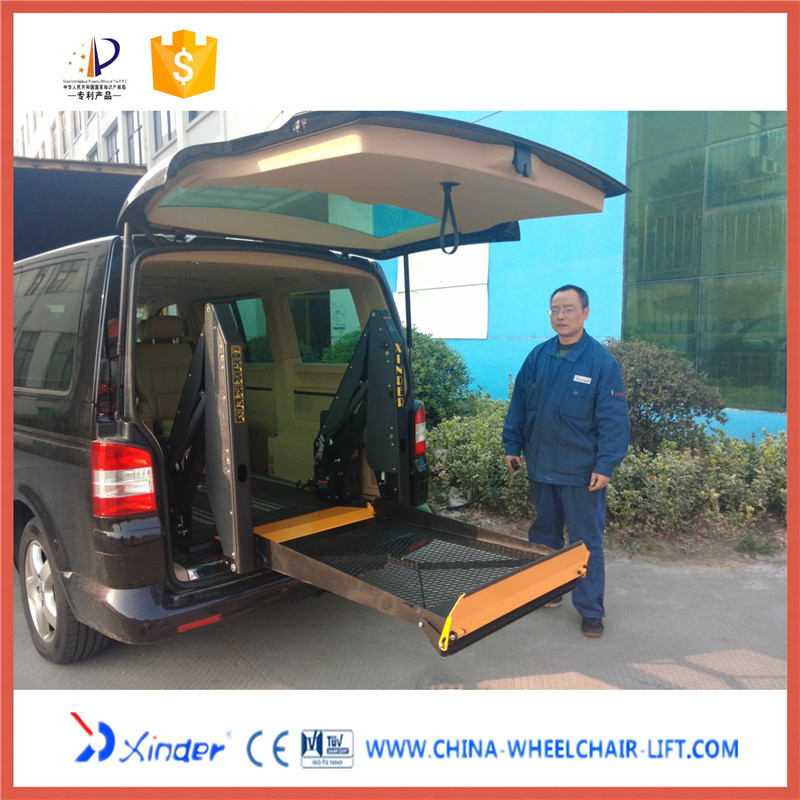

Tail Lift Mounted on Wheel Vehicle for Passengers (WL-D)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Model: WL-D-880
This automatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift also features a strong durable steel frame built to give you years of dependable service.
Advantages:
Compact design
Automatic Inboard and Outboard Rollstops
Quiet, smooth and easy operation
Welded All-Steel Frame
Non-Skid Platform
Built-In Manual Backup System
Permanent No-Lube Bearings at All Major Pivot Points
| Model | WL-D- 880-1150 | WL-D- 880S-1150 | WL-D- 880U-1150 | WL-D- 880-1250 | WL-D- 880S-1250 | WL-D- 880U-1250 |
| Platform Size (A×B) | 720×1150 | 720×1150 | 720×1150 | 820×1250 | 820×1250 | 820×1250 |
| Overall Width (C) | 1135 mm | 1135 mm | 1135 mm | 1235 mm | 1235 mm | 1235 mm |
| Overall Height (D) | 1225 mm | 1225 mm | 1130 mm | 1225 mm | 1225 mm | 1130 mm |
| Overall Length (E) | 440 mm | 440 mm | 500 mm | 440 mm | 440 mm | 500 mm |
| Max Lifting Height(F) | 880 mm | 880 mm | 880 mm | 880 mm | 880 mm | 880 mm |
| Rated Voltage | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V |
| Max Working Pressure | 14 MPa | 14 MPa | 14 MPa | 14 MPa | 14 MPa | 14 MPa |
| Loading Capacity | 350 Kg | 350 Kg | 350 Kg | 350 Kg | 350 Kg | 350 Kg |
| Own Weight | 135 Kg | 135 Kg | 135 Kg | 135 Kg | 135 Kg | 135 Kg |
| Prod Model: |
WL-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform Size: |
720*1150/820*1250mm |
| Max Lifting Height: |
880mm |
| Max Loading Capacity: |
350kg |
| Voltage: |
12V or 24V |
| Net Weight: |
135kg |
| Gross Weight: |
185kg |
| Max Working Pressure: |
14 MPa |
| Drive Mode: |
Electric and Hydraulic |
| Certificate: |
CE |
| Model: |
Wl-D-880 |
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
XINDER works in many fields:
1 Electric & Manual Wheelchair Ramp
2 Wheelchair Lift
3 ES Series Electric Step
4 Manual Step
5 Wheelchair Restraint System
6 Manual Control System
7 Electronic Accelerator Pedal
8 Handicapped Electric car
9 Seat Fixing System
