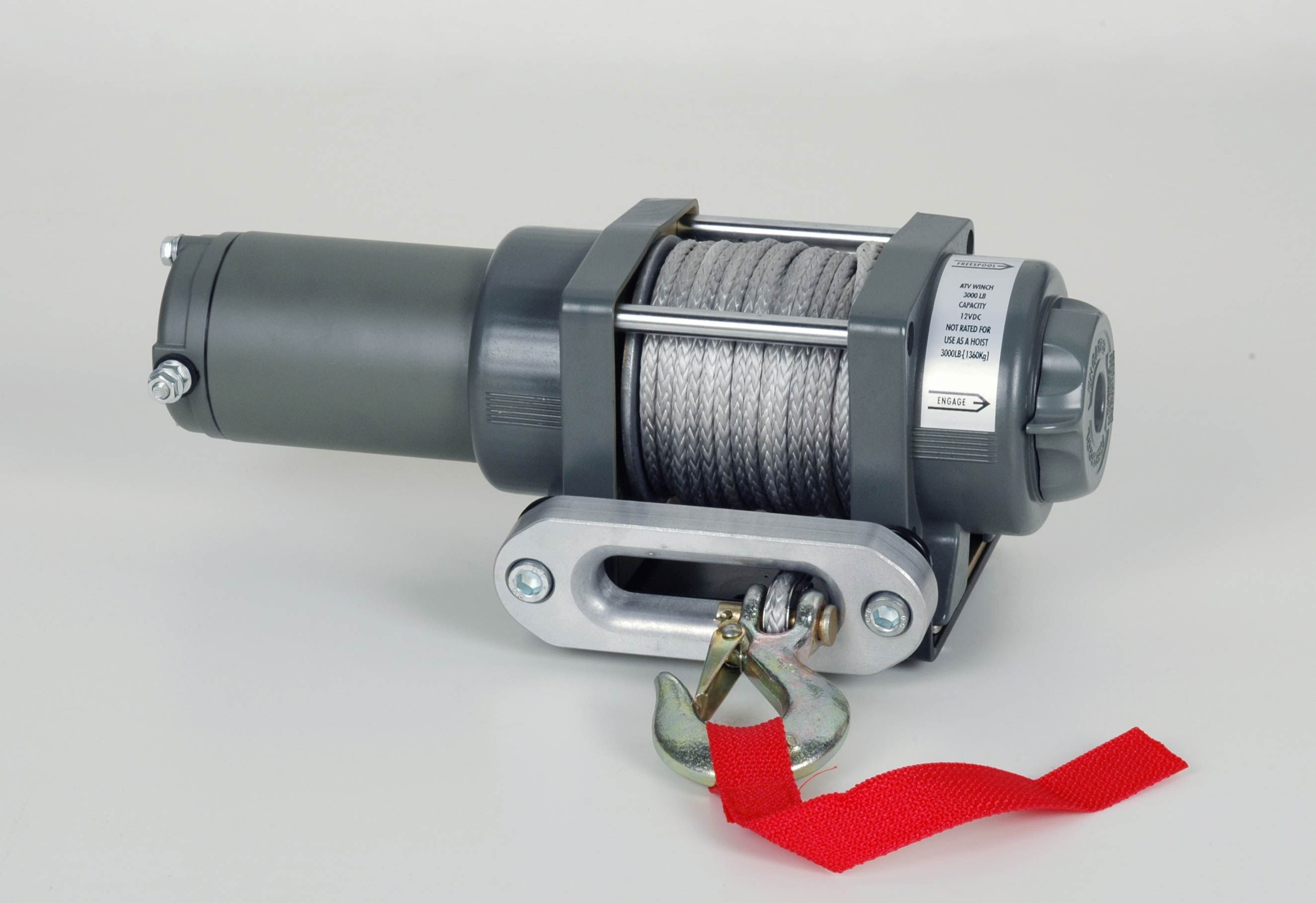

Synthetic Rope of ATV Electric Winch with 3000lb Pulling Capacity

Name: Synthetic Rope of ATV Electric Winch with 3000lb Pulling Capacity
Brand: ibuyautoparts.com
SKU: 712240435
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	US $ 85.0-86.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:

All metal drivetrain
Sealed drivetrain and motor
Eleven sealed areas protect the winch from water and contaminant infiltration

1) Rated line pull: 3,000lbs (1,361kg) single-line
2) Motor: 12V DC, 1.1hp (0.82kW) permanent magnet, sealed
3) Control: mini-rock switch and remote control, 10ft (3.0m) lead
4) Geartrain: all-metal strengthens 3-stage planetary, sealed
5) Gear ratio: 136:1
6) Clutch (free spooling): cam activated
7) Brake: automatic mechanical brake
8) Drum diameter/length: 2.0"/2.9" (51mm/75mm), strengthens
9) Wire rope: 40', 7/32" diameter (12.25m, 5.5mm diam)
10) Cable management: aluminum hawse fairlead
11) Recommended battery: 12 Amp/hour minimum
12) Battery leads: four color wire
13) Duty cycle: intermittent
14) Mounting bolt pattern: 76 x 124mm
15) Finish: black or grey

Product Features:
1)All metal, high precision, high strength of the 3 planetary gear group
2)As many as 11 seals to prevent water or sludge into the motor and gear box
3)Long-life sealed control switch
4)Full sealed large current contactor
5)Install four power wire convenient
6)Import SK75 Dyneema rope
7)Include component:mounting plate, aluminum roller fairlead, G70 hook, contactor, handle switch, wire sets, hardware, handsaver strap, sheath of rubber, ribbon, instruction, EPS packaging, colour box and more
8)Small volume, light weight, strong tension and suitable for small SUV, beach all terrain vehicle of JIMNY and light vehicle outdoor operation

PERFORMANCE DATA
Line Pull Lbs. (Kgs. )	Line Speed FT. / min (M/min. )	Motor Current	Pull by Layer layer / Lbs (Kgs. )
0	25 (7.6)	18	1 / 3000 (1361)
500	20 (6.1)	51	2 / 2640 (1198)
1000	17 (5.2)	88	3 / 2032 (1052)
1500	14 (4.3)	125	4 / 2040 (925)
2000	11 (3.3)	165
2500	9 (2.7)	204
3000	7 (2.1)	240

Prod Model:	XTS3.0
Markets:	North America,Oceania,Eastern Asia,Western Europe
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Desert
Certification:	CE

Company Profile:

The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.

Manufacturing, Research & Development:

We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.

Products:

We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.

Sales & Service:

Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
