Prod Model: |
car camera for 13 Bora |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Image Sensor Available: |
PC1030/PC7070/Mt9V136/PC1089 |
Camera Degree: |
170 Degree |
Waterproof: |
Yes |
TV System: |
PAL/NTSC |
Minimum Illumination: |
0.1lux |
Pixels: |
628X582 |
Resolution: |
420tvl/480 Tvl/520tvl Optional |
Interface: |
RCA |
Chip: |
CMOS |
Waterproof Grade: |
IP68 |
Definition: |
480TV Lines |
Product Description

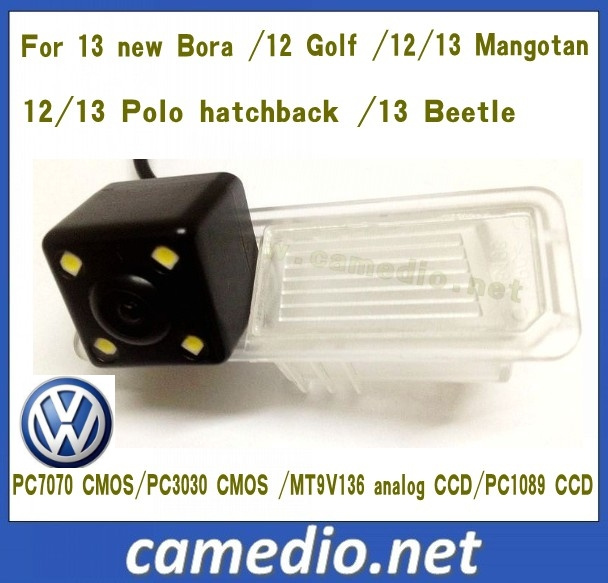

1)Special rear view car camera for 13 new Bora, 12 Golf, 12/13 Mangotan, 12/13 Polo hatchback, 13 Beetle
2) 1/3 Color CMOS image sensor, 480 TV lines
3) With 4pcs IR light for super bright LED night vision
4) PAL/NTSC TV Systems optional.
5)Waterproof design, weather-resist.
6) 170 degree wide viewing angle
7) Image sensor optional: PC1030 420 TV lines, MT9V136 analog CCD 480 TVlines, PC1089 520TVL CCD
Specification:
Image sensor: PC7070
1. Effective pixels: 682*504 pixels
2. Video output: 1Vp_p± 10%
3. Scanning system: 2: 1 interlace
4. Minimum illumination: 0.05 Lux/F=1.2(0 Lux with IR on)
5. Operation temperature: -20° C - 75° C, RH 95% MAX
6. TV system: PAL/NTSC
7. Sensing area: 3.8 mm *2.9 mm
8. SNR: >47.2dB
9. Lens angle: 135° /170°
10. Resolution: 480 TV lines
11. Shutter speed: 1-1/10000
12. White balance: Auto
13. Waterproof: IP67/68
14. Power supply: Analog: 2.8V, HVDD: 2.8V, CVDD: 2.8V
15. Working temperature: -20° C - 70° C, RH 95% MAX
Specifications for different image devices:
Image Sensor | Color CMOS PC1030 | Color CCD PC3030 | Color MT9V136 | Color PC1089K |
TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC |
Effective Pixels | 648*488Pixels | 728(H)*488(V) | 720*576/480Pixels | 928(H)*500(V) |
Horizontal resolution | 420TVL | 480TVL | 480TVL | 500TVL |
Sening area | 4.08mm*3.12mm | 3.584mm*2.688mm | 3.584mm*2.688mm | 3.584mm*2.688mm |
Shutter speed | 1/60-1/5000 | 1/60-1/20000 | 1-1/10000 | 1-1/10000 |
Minimum Illumination | 0.1lUX/F=1.2(OLux with ON | 0.1Lux/F=1.2(Olux with ON) | 0.01Lux/F=1.2(OLux with OR ON) | 0.01Lux/F=1.2(Olux with OR ON) |
Video output | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm |
Power Supply | DC12V | DC12V | DC12V | DC12V |
Operating temperature | -20°C~75°C,RH 95%MAX | -20°C~75°C,RH 95% MAX | -20°C~75°C,RH 95% MAX | -20°C-75°C,RH 95% MAX |
Storage temperature | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX |
Lens angle | 170° | 170° | 170° | 170° |
Waterproof | IP69K | IP69K | IP69K | IP69K |
White Balance | auto | auto | auto | auto |
